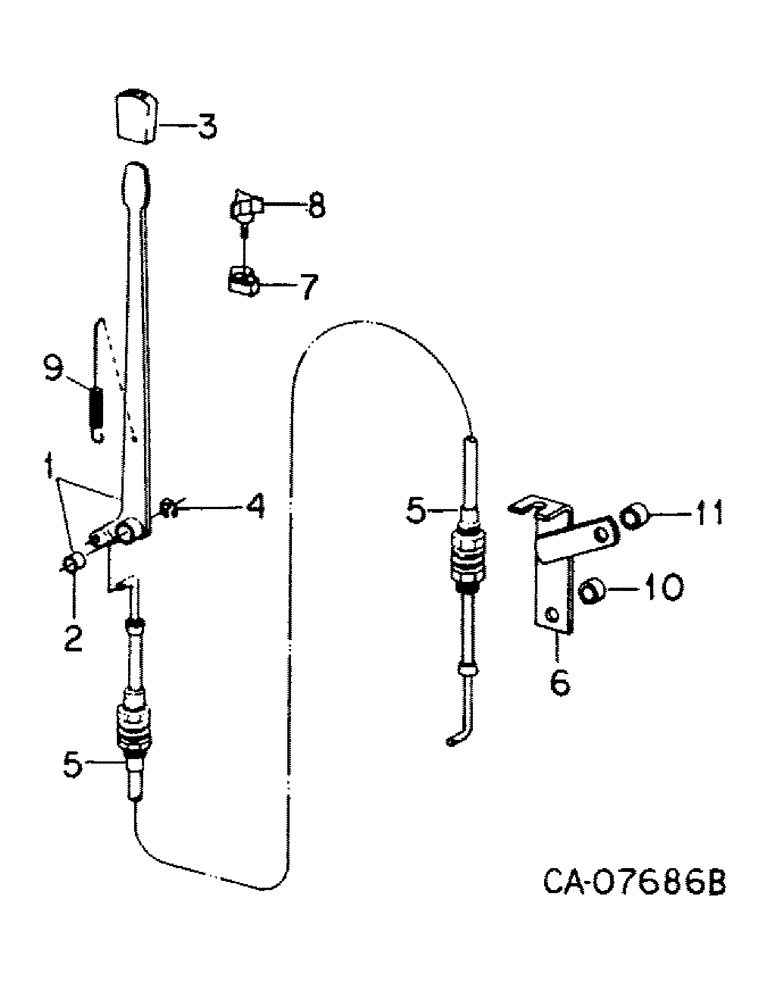

Запчасти Case IH 6788 (07-42) - DRIVE TRAIN, INDEPENDENT PTO CONTROL (04) - Drive Train

1

1251588C3

HANDLE

ASSY, IPTO control, 6388, Serial Range: -8985

1шт.

1

1251588C3

HANDLE

ASSY, IPTO control, 6588, Serial Range: -9004

1шт.

1

1251588C3

HANDLE

ASSY, IPTO control, 6788, Serial Range: -8809

1шт.

1

1267374C92

HANDLE

ASSY, IPTO control, 6388, Start Serial: 8986

1шт.

1

1267374C92

HANDLE

ASSY, IPTO control, 6588, Start Serial: 9005

1шт.

1

1267374C92

HANDLE

ASSY, IPTO control, 6788, Start Serial: 8810

1шт.

2

143960C1

BUSHING

1шт.

3

1259760C1

BALL KNOB

KNOB, 6388, Serial Range: -8985

1шт.

3

1259760C1

BALL KNOB

KNOB, 6588, Serial Range: -9004

1шт.

3

1259760C1

BALL KNOB

KNOB, 6788, Serial Range: -8809

1шт.

3

1267353C1

KNOB

6388, Start Serial: 8985

1шт.

3

1267353C1

KNOB

6588, Start Serial: 9004

1шт.

3

1267353C1

KNOB

6788, Start Serial: 8809

1шт.

4

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

5

130566C1

CABLE

ASSY, IPTO control

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

6

1266533C1

SUPPORT

ASSY, IPTO cable, Replaces 130563C1

1шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

7

120015C1

STOP

governor PTO over speed, tractor w/o tilt steering wheel

1шт.

7

1252740C1

STOP

governor PTO over speed, tractor w/tilt steering wheel

1шт.

8

399023R2

KNOB

fluted

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.

9

1259809C2

SPRING

IPTO handle return

1шт.

10

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

7/8 x .875 tube, tractors w/o 3 point hitch

1шт.

11

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

7/8 x .625 tube

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .074, tractors w/o 3 point hitch

2шт.
