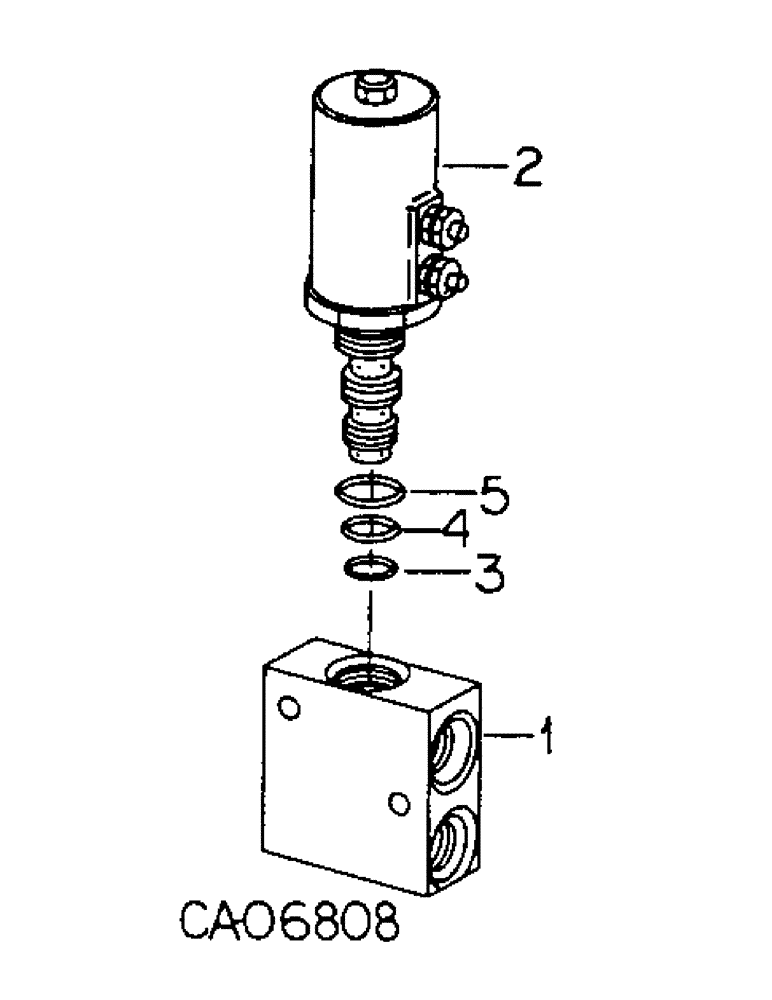

Запчасти Case IH 6788 (07-30) - DRIVE TRAIN, DIFFERENTIAL LOCK AND TRANS BRAKE VALVE (04) - Drive Train

137767C94

VALVE

ASSY, block & solenoid, or

1шт.

1272538C91

VALVE

ASSY, block & solenoid

1шт.

1

BLOCK

1шт.

Not serviced separately, Order complete valve assy.

1шт.

2

SOLENOID

1шт.

Not serviced separately, Order complete valve assy.

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

Use with valve assy, 137767C94.

1шт.

4

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 class 6

1шт.

Use with valve assy, 137767C94.

1шт.

5

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

1шт.

Use with valve assy, 137767C94.

1шт.

1272698C1

PACKAGE

KIT, seal, Note C, Consists of

1шт.

Use with valve assy, 1272538C91.

1шт.

GASKET (NSS)

1шт.

O-RING (NSS)

1шт.

O-RING (NSS)

1шт.

RING, back-up (NSS)

2шт.

RING, back-up (NSS)

2шт.
