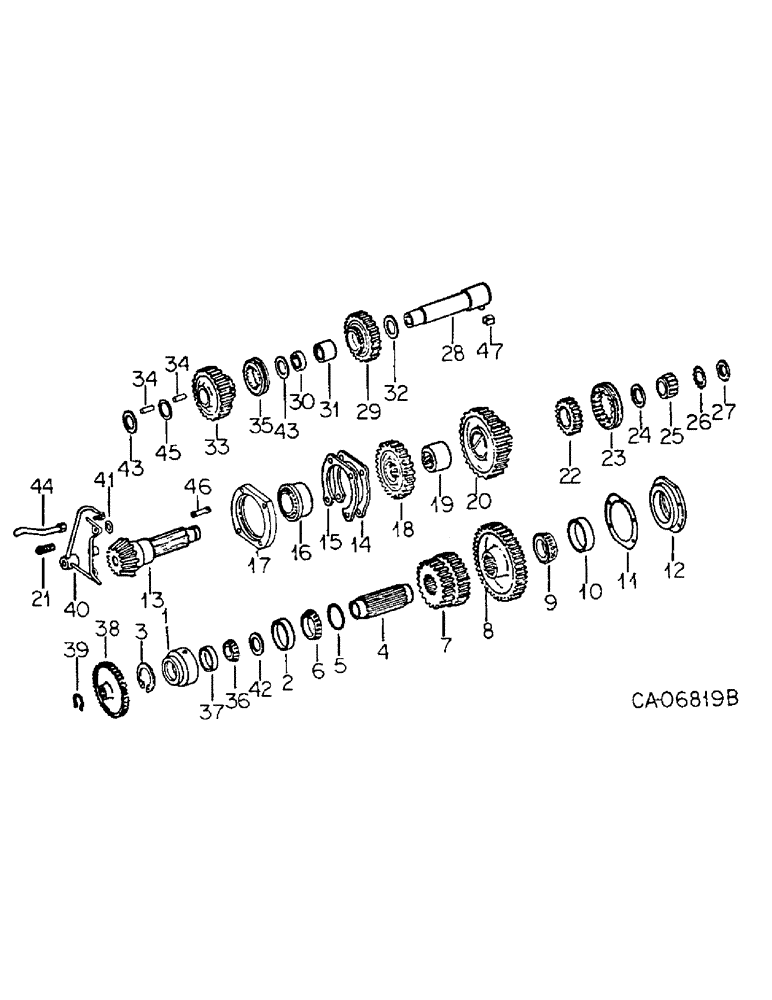

Запчасти Case IH 6788 (07-22) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

67768C1

CAGE

ASSY, countershaft rear brg, 6588 and 6788 tractors

1шт.

1

68523C1

CAGE

ASSY, countershaft rear brg, 6388 tractors

1шт.

2

1268528C1

BEARING CUP,2.4705" ID x 4.001" OD x 1"

countershaft cup, 6588 and 6788 tractors

1шт.

2

ST2164

BEARING ASSY,90mm OD x 19.99mm W

BEARING, countershaft cup, 6388 tractor

1шт.

3

26522R1

SNAP RING,4.625", Int, #462

Ring, Snap, , brg cage rear 4.625", Int, #462

1шт.

4

67770C1

SHAFT

COUNTERSHAFT, 6588 and 6788 tractors

1шт.

4

531799R1

SHAFT

COUNTERSHAFT, 6388 tractor

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap, 6388 tractor

1шт.

6

1268527C91

ROLLER BEARING,2.4705" ID x 4.001" OD x 1"

ASSY, countershaft cone, 6588 and 6788 tractors

1шт.

6

ST2010

BEARING ASSY,52.39mm ID x 25.4mm W

countershaft cone, 6388 tractor

1шт.

7

67771C1

GEAR

low drive, 28T, 6588 and 6788 tractors

1шт.

7

528681R1

GEAR

low drive, 28T, 33T, 6388 tractor

1шт.

8

127456C1

GEAR

constant mesh, 50T, 6588 tractor

1шт.

8

406028R1

GEAR

constant mesh, 50T, 6388 tractor

1шт.

8

67772C1

GEAR

constant mesh, 48T, 6788 tractor

1шт.

9

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

ASSY, countershaft cone, 6588 and 6788 tractors

1шт.

9

625742C91

BEARING

ASSY, countershaft cone, 6388 tractors

1шт.

10

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, countershaft cup, 6588 and 6788 tractors

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup, 6388 tractor

1шт.

11

67603C1

SHIM

countershaft bearing, .004/.005 (Or as required)

1шт.

11

67604C1

SHIM

countershaft bearing, .0299 (Or as required)

1шт.

11

67605C1

SHIM

countershaft bearing, .012 (Or as required)

2шт.

11

67606C1

SHIM

countershaft bearing, .007 (Or as required)

1шт.

11

67607C1

SHIM

countershaft bearing, .0035/.0025 (Or as required)

1шт.

12

67598C1

CAGE

countershaft frt brg, 6388 tractor

1шт.

12

67773C1

CAGE

countershaft front brg, 6588 and 6788 tractors

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

120265C91

GEAR-SET

PACKAGE, bevel gear & pinion, matched set, 6388 and 6588 tractors, See end of unit for details

1шт.

13

1268694C91

PACKAGE

bevel gear & pinion, matched set, 6788 tractor, See end of unit for details

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft bearing, .007 (Or as required)

2шт.

16

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

ASSY, main shaft rear, 6388 and 6588 tractors

1шт.

16

1258370C91

TAPERED BEARING,2.5938" ID x 5.25" OD x 2.75"

BEARING ASSY, main shaft rear, 6788 tractor

1шт.

17

135770C2

RETAINER

main shaft rear brg, 6388 and 6588 tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

17

1258368C1

RETAINER

main shaft rear brg, 6788 tractor

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg

2шт.

18

138764C2

GEAR

reverse driven, 35T, 6388 and 6588 tractors

1шт.

18

1258369C1

GEAR

reverse driven, 35T, 6788 tractor

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

67766C1

GEAR

ASSY W/BUSHING, hi-lo driven, 6588 and 6788 tractors

1шт.

20

528683R11

GEAR

ASSY W/BUSHING, hi-lo driven, 6388 tractor

1шт.

21

BOLT, lub tube mounting bracket upper, Refer to rear frame and covers this group

1шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

530137R91

BEARING ASSY,40mm ID x 77.62mm OD x 32.38mm W

main shaft front, 6388 and 6588 tractors

1шт.

25

1250294C91

ROLLER BEARING,1.5748" ID x 3.056" OD x 1.1811"

BEARING ASSY, main shaft front, 6788 tractors, Replaces 67765C91

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

mainshaft

1шт.

28

SHAFT ASSY, reverse idler, Furnish 1258434C91, service package

1шт.

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x .625 pln hdn dowel

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust, .100 thick

1шт.

32

1250218C1

THRUST WASHER

idler gear thrust, .125 thick

1шт.

33

GEAR, reverse drive, 34T, Furnish 1258434C91, service package

1шт.

34

PIN, roller bearing, Furnish 1258434C91, service package

1шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, IPTO driven shaft, 6588 and 6788 tractors

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft, 6388 tractor

1шт.

37

663558R1

BEARING CUP

BEARING, IPTO driven shaft cup, 6588 and 6788 tractors

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup, 6388 tractors

1шт.

38

128044C1

GEAR

pump drive, 61T, 6588 and 6788 tractors

1шт.

38

128064C1

GEAR

pump, 61T, 6388 tractor

1шт.

39

233041R1

SNAP RING,#156, Ext

Ring, Snap, , pump drive gear, 6588 and 6788 tractors #156, Ext

1шт.

39

152450R1

SNAP RING,#125, Ext

Ring, Snap, , pump drive gear, 6388 tractor #125, Ext

1шт.

40

TUBE, lub pressure, Refer to rear frame and covers this group

1шт.

41

RING, lub tube seal, Refer to rear frame and covers this group

1шт.

42

67778C1

SPACER

IPTO shaft rear bearing, 6588 & 6788 tractors

1шт.

43

127325C1

THRUST WASHER

reverse idler thrust

2шт.

44

67748C2

TUBE

diff pressure lub rear

1шт.

45

127326C3

WASHER

bearing retainer

1шт.

46

68057C1

TUBE,0.38" ID, 0.625" OD, 1.6" Length

lube jumper, 6788 tractor

1шт.

47

127562C1

PLUG

lube oil

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, 6388 and 6588 tractors, Consists of

1шт.

SHAFT, 13T (NSS)

1шт.

BEVEL GEAR, 51T (NSS)

1шт.

380283R2

SHIM

1шт.

380284R2

SHIM

2шт.

135770C2

RETAINER

2шт.

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

1шт.

359082R2

NUT

1шт.

INSTRUCTIONS (NSS)

1шт.

1268694C91

PACKAGE

bevel gear and pinion, 6788 tractors, Consists of

1шт.

SHAFT, 11 T (NSS)

1шт.

GEAR (NSS)

1шт.

TAG (NSS)

1шт.

1258434C91

PACKAGE

reverse idler shaft & gear, Consists of

1шт.

SHAFT, reverse idler (NSS)

1шт.

393523R1

GEAR

reverse idler, 30T

1шт.

PIN, roller brg (NSS)

38шт.

INSTRUCTIONS (NSS)

1шт.

127562C1

PLUG

oil lub

1шт.

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING ASSY, idler gear rear

1шт.

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING ASSY, idler gear front

1шт.

1250218C1

THRUST WASHER

idler gear thrust

1шт.

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

1шт.

GEAR, reverse drive (NSS)

1шт.

127325C1

THRUST WASHER

reverse idler thrust

1шт.

127326C3

WASHER

brg retainer

1шт.

393524R1

COLLAR

forward reverse shift

1шт.

1277023C91

STRIPPER PACKAGE

PACKAGE, range transmission bearing improvement service, 6388 tractors, Consists of

1шт.

1277022C1

CAGE

ASSY, countershaft rear bearing

1шт.

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

1268527C91

ROLLER BEARING,2.4705" ID x 4.001" OD x 1"

countershaft rear cone

1шт.

1268528C1

BEARING CUP,2.4705" ID x 4.001" OD x 1"

countershaft rear cup

1шт.

67770C1

SHAFT

COUNTERSHAFT

1шт.

127456C1

GEAR

constant mesh range, 50T

1шт.

67771C1

GEAR

lo-rev drive, 28-33T

1шт.

67773C1

CAGE

countershaft frt brg

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

countershaft frt cone

1шт.

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

BEARING, countershaft frt cup

1шт.

867899R91

BEARING CONE

BEARING, IPTO shaft rear cone

1шт.

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, IPTO shaft rear cup

1шт.

INSTRUCTIONS, installing (NSS)

1шт.
