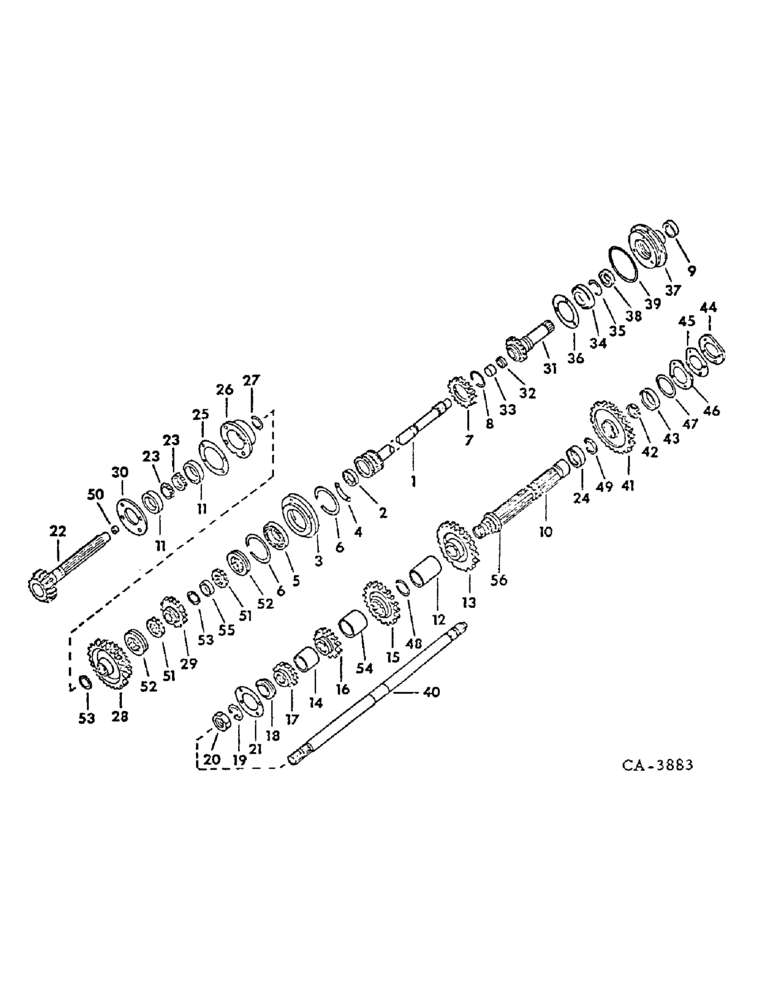

Запчасти Case IH 6788 (07-20) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING, 6788 TRACTORS (04) - Drive Train

1

68040C1

SHAFT

transmission drive

1шт.

2

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING ASSY, main shaft front

1шт.

3

68041C1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

5

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

2шт.

7

68042C1

GEAR

constant mesh drive, 28T

1шт.

8

68623C1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

148951C2

SHAFT

COUNTERSHAFT, LH thread

1шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

12

384091R3

SPACER

constant mesh gear, tractors w/torque amplifier

1шт.

13

68142C2

GEAR

TA driven, 47T, tractors w/torque amplifier

1шт.

14

68046C2

SPACER

countershaft rear

1шт.

15

68043C3

GEAR

constant mesh, 45T

1шт.

16

143962C1

GEAR

2nd speed driving, 39T

1шт.

17

120774C1

GEAR

1st speed driving, 31T

1шт.

18

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

ASSY, countershaft rear

1шт.

19

NOT USED THIS APPLICATION

1шт.

20

148952C2

NUT

countershaft brg lock, LH thread

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

1250295C1

SHAFT

ASSY W/PLUG, main, 25T, tractors w/o torque amplifier

1шт.

22

1250297C1

SHAFT

main, 25T, tractors w/torque amplifier

1шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

24

384114R91

NEEDLE BEARING

countershaft front needle

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

529283R2

CAGE

main shaft rear brg

1шт.

27

380097R1

RING

main shaft rear brg snap

1шт.

28

120775C1

GEAR

1st speed driven, 42T

1шт.

29

143963C1

GEAR

2nd speed driven, 33T

1шт.

30

380098R2

RETAINER

main shaft rear bearing

1шт.

143049H1

CAPSCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW, 3/8 x 1.5 pln type 8 12pt flg

4шт.

31

104401C1

SHAFT

IPTO drive

1шт.

32

67790C2

SEAL

drive shaft oil

1шт.

33

69751C1

BUSHING

ASSY, drive shaft w/spacer

1шт.

69752C1

SPACER

drive shaft bushing

1шт.

34

70227C91

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING

1шт.

ST453

RING

bearing snap

1шт.

35

384337R1

RING

shaft brg retaining

1шт.

36

384184R1

RETAINER

shaft brg

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

3шт.

37

67753C1

CAGE

drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

5шт.

38

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8 shaft brg cage sealing

1шт.

40

67754C1

SHAFT

IPTO driven

1шт.

41

104400C1

GEAR

IPTO driven, 58T

1шт.

42

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, IPTO shaft frt cone

1шт.

43

376463C1

BEARING CUP

BEARING, IPTO shaft frt cup

1шт.

44

67757C1

RETAINER

driven shaft brg

1шт.

45

67758C1

SHIM

shaft brg retainer, .028

1шт.

46

67760C1

SHIM

shaft brg retainer, .007

4шт.

47

67761C1

SEAL RETAINER

IPTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap frt

1шт.

49

67755C1

RING

IPTO driven ring snap

1шт.

50

68050C1

PLUG

1шт.

51

68053C1

ADAPTER

shifter collar

2шт.

52

68054C1

SYNCHRONIZER,26T

1st & 2nd gear shifter

2шт.

53

68051C1

THRUST WASHER,54.36mm ID x 63.5mm OD x 3.02mm Thk

driven gear thrust

2шт.

54

68044C2

SPACER

countershaft center

1шт.

55

69053C1

SPACER

shifter adapter, .593

1шт.

55

69054C1

SPACER

shift adapter, .602

1шт.

55

69055C1

SPACER

shifter adapter, .611

1шт.

56

71147C2

SPACER

TA driven gear, tractor w/torque amplifier

1шт.
