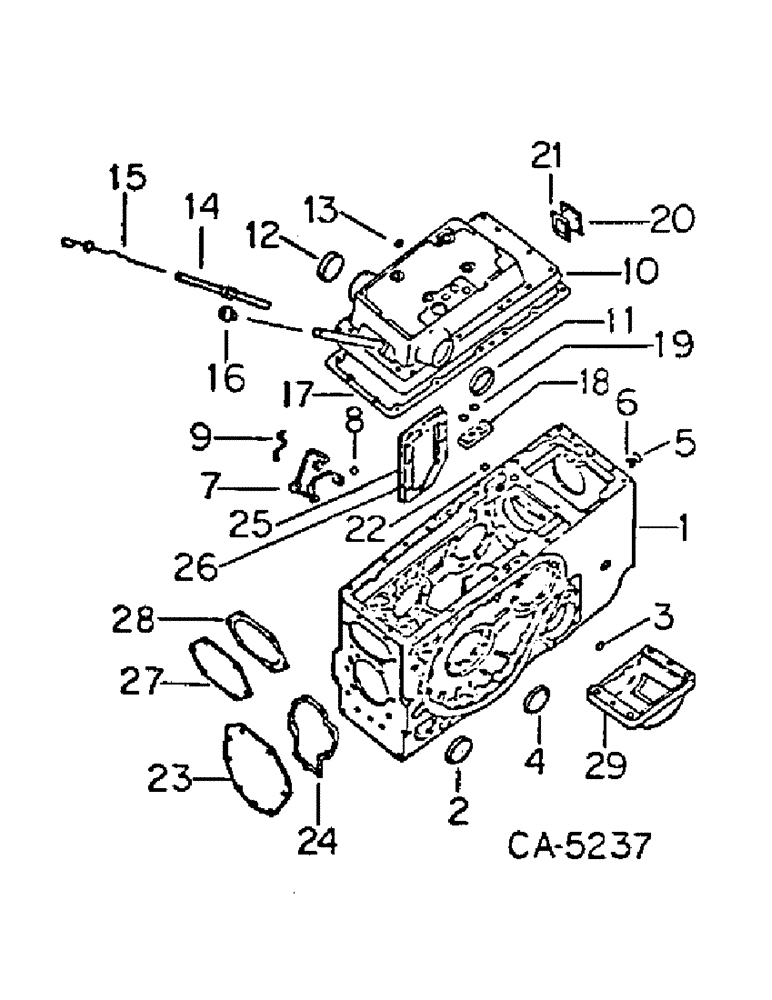

Запчасти Case IH 6788 (07-16) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train

1

127910C91

FRAME

ASSY, rear, Consists of

1шт.

FRAME W/TUBES (NSS)

1шт.

537545R92

SEAL

OIL SEAL

1шт.

PIN (NSS)

1шт.

PIN (NSS)

4шт.

PIN (NSS)

2шт.

172558

PLUG,Exp, 1 1/4"

1шт.

172574

PLUG,Exp, 1 1/2"

1шт.

383331R1

PLUG,Cup, 4.26"

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto sq-soc pipe

1шт.

INSTRUCTIONS, installing (NSS)

1шт.

2

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

3

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion pump suction port

1шт.

4

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 class 5 clutch housing suction tube

1шт.

6

127903C1

RETAINER

sealing ring

1шт.

7

68688C1

TUBE

ASSY, trans lub, 6388 and 6588 tractors

1шт.

7

67742C1

TUBE

ASSY, trans lub, 6788 tractors

1шт.

8

67745C1

SEALING RING

mainshaft fitting

1шт.

40579R1

WASHER, lub tube mounting bracket

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

9

67748C2

TUBE

ASSY, diff ret upper lub

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg

1шт.

10

COVER, rear frame, Refer to rear frame cover this group

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

5/8 x 3-7/8 pln type 5

16шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 sq-soc pipe

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 sq-soc pipe

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH cup Cup, 3.762"

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

13

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge

1шт.

15

104164C1

DIPSTICK

GAUGE ASSY, oil level

1шт.

16

367677R91

BREATHER

ASSY, oil filler tube cup

1шт.

17

380264R2

GASKET

rear frame cover

1шт.

18

382758R1

COVER

draft control port

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

19

387926R2

RING

draft control port cover seal

2шт.

20

382415R1

COVER

valve adj opening

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

5шт.

28253R1

BOLT

5/16 x 5/8 phc p/t type 5

1шт.

21

382416R1

GASKET

valve adj opening

1шт.

22

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

23

380272R1

COVER

independent PTO opening

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

9шт.

24

381467R1

GASKET

independent PTO opening cover

1шт.

25

NOT USED IN THIS APPLICATION

1шт.

26

NOT USED IN THIS APPLICATION

1шт.

27

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

6шт.

28

383330R1

GASKET

draft control adj opening cover

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 6388

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 6588 w/o cam sway limiting system using 1-3/4 IPTO shaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5, 6788 w/o cam sway limiting system using 1-3/4 IPTO shaft

4шт.
