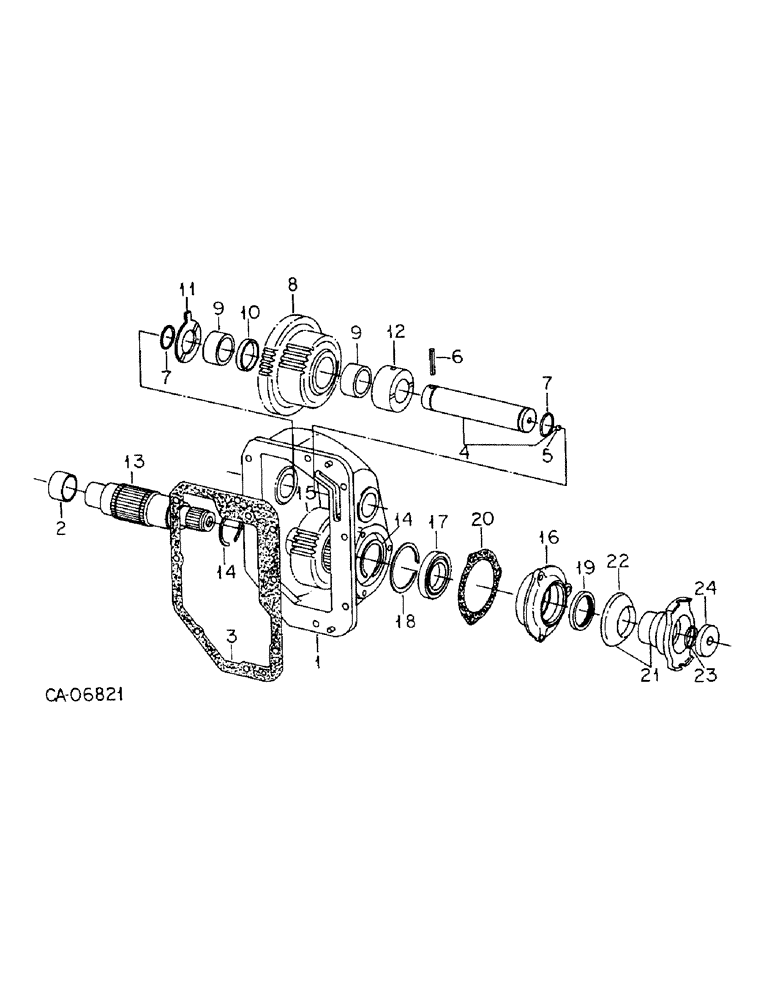

Запчасти Case IH 6788 (07-15) - DRIVE TRAIN, FOUR WHEEL DRIVE ASSY (04) - Drive Train

1

127445C92

HOUSING

ASSY, four wheel drive

1шт.

330222R1

PLUG,Cup, 1 7/8"

1-7/8 cup

1шт.

20024R1

PIN

3/8 x 1 dowel

2шт.

208100H1

CAPSCREW,Flange, 1/2" x 1.25", Alloy Steel

SCREW, 1/2 x 1.25 pln type 8 12pt flg

8шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

output shaft rear needle

1шт.

3

385756R2

GASKET

housing, .038 light

1шт.

3

385757R2

GASKET

housing, .051 heavy

1шт.

4

127302C2

SHAFT

ASSY, cluster gear

1шт.

5

138666

SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16"

5/16-18 headless hex socket set

1шт.

6

617057R1

PIN,1/4" x 1", Coiled

1шт.

7

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1-1/2 x 1-11/16 x 1/32

2шт.

8

132572C2

GEAR

four wheel drive cluster, 31T & 37T, 6388 and 6588 tractors

1шт.

8

134422C2

GEAR

four wheel drive cluster, 28T & 37T, 6788 tractors

1шт.

9

138763C91

NEEDLE BEARING,44.44mm ID x 54mm OD x 38.1mm W

BEARING, cluster gear needle

2шт.

10

138762C1

RING

bearing spacer

1шт.

11

127307C2

THRUST WASHER

cluster gear thrust

1шт.

12

134401C1

SPACER

cluster gear shaft

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

1шт.

13

132573C1

SHAFT

four wheel output

1шт.

14

132595C1

RING

external snap

2шт.

15

132571C1

GEAR

driven all wheel drive, 6388 and 6588 tractors

1шт.

15

134421C1

GEAR

driven all wheel drive, 6788 tractors

1шт.

16

134413C1

CAGE

four wheel drive bearing

1шт.

17

79569H

BALL BEARING

BEARING, output shaft

1шт.

18

629841R1

RING, SNAP

RING, internal ret 334

1шт.

19

619585C91

SEAL,51.94mm ID x 76.33mm OD x 9.5mm Thk

bearing cage oil

1шт.

20

127451C1

GASKET

cage seal

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

3шт.

21

127395C1

YOKE

ASSY, output shaft

1шт.

22

127393C1

WASHER

oil seal, slinger

1шт.

23

293739R1

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1-3/8 x 1-5/8 x 1/8 yoke

1шт.

24

127301C1

WASHER

yoke

1шт.

27406R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 phc p/t type 8

1шт.
