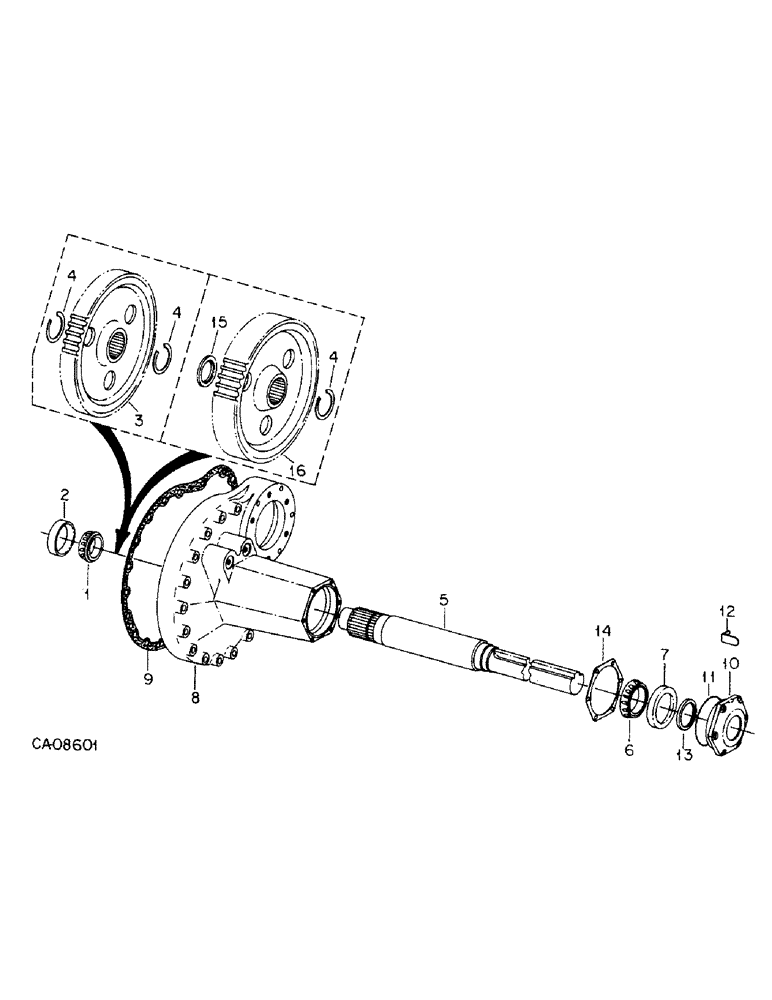

Запчасти Case IH 6788 (07-09) - DRIVE TRAIN, REAR DRIVE AXLE (04) - Drive Train

1

ST2111

BEARING ASSY,66.68mm ID x 122.24mm OD x 38.1mm W

inner cup & cone

2шт.

2

BEARING, rear axle inner cup, Order ST2111 assy

2шт.

3

380219R1

GEAR

bull, 73T, 6388 tractor

2шт.

3

384075R1

GEAR

bull, 73T, 6588 tractors

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 6388 & 6588 tractors

4шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 6788 tractors

2шт.

5

535664R2

AXLE

rear, 104 in., 6388 & 6588 tractors

2шт.

5

535662R1

AXLE

rear, 118 in., 6388 & 6588 tractors

2шт.

5

535663R2

AXLE

rear, 118 in., 6788 tractor

2шт.

5

535665R3

AXLE

rear, 104 in., 6788 tractor

2шт.

6

ST2041

TAPERED BEARING,3.376" ID x 5.376" OD x 1.2015"

BEARING ASSY, rear cup and cone, 6388 & 6588 tractors

2шт.

6

ST2184

BEARING ASSY

rear cup and cone, 6788 tractors

2шт.

7

BEARING, rear axle outer cup, 6388 & 6588 tractors, Order ST2041 assy

2шт.

7

BEARING, rear axle outer cup, 6788 tractors, Order ST2184 assy

2шт.

8

143528C1

CARRIER

rear axle

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2 pln type 5

20шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8 x 4-1/4 pln typ 5, Course Threads

16шт.

9

380225R2

GASKET

rear axle carrier

2шт.

10

530033R2

CAP

rear axle carrier, 6388 & 6588 tractor

2шт.

10

536471R1

CAP

rear axle carrier, 6788 tractors

2шт.

11

529133R1

RING

rear axle carrier cap sealing

2шт.

12

392346R1

BRACKET

rear wheel inner position cage

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

535667R91

OIL SEAL

rear axle carrier cap oil

2шт.

14

385158R2

SHIM

rear axle carrier cap, .003

1шт.

14

380230R2

SHIM

rear axle carrier cap, .004

1шт.

14

380227R2

SHIM

rear axle carrier cap, .007 (Or as required)

6шт.

14

380228R2

SHIM

rear axle carrier cap, .012 (Or as required)

4шт.

14

380229R2

SHIM

rear axle carrier cap, .030

1шт.

15

535666R1

SPACER

bull gear, 6788 tractors only

2шт.

16

528712R1

GEAR

bull, 6788 tractors only

1шт.
