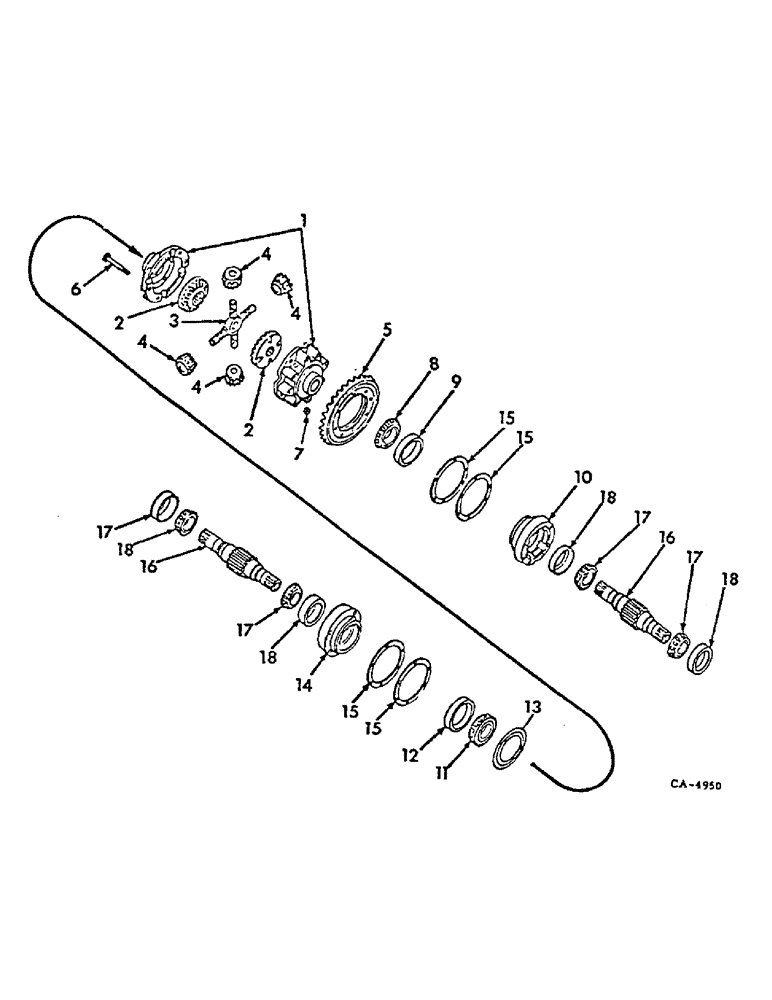

Запчасти Case IH 6788 (07-07) - DRIVE TRAIN, DIFFERENTIAL, 6788 TRACTORS (04) - Drive Train

1

528706R3

CASE

ASSY, differential

1шт.

2

380190R2

GEAR

differential, 28T

2шт.

3

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

4

361061R3

PINION

differential, 15T

4шт.

5

1268694C91

PACKAGE

BEVEL GEAR, matched set, See end of unit for details

1шт.

6

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

7

381368R1

NUT,Hex, 1/2" - 20, Gr 8

diff case bolt

12шт.

8

622336C91

ROLLER BEARING

ASSY, diff RH roller cone

1шт.

9

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, diff RH roller cone

1шт.

9

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, diff RH roller cup

1шт.

10

68683C1

RETAINER

diff bearing RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

11

529452R91

ROLLER BEARING

ASSY, diff LH cone

1шт.

12

529453R1

BEARING, CUP

BEARING, diff LH cup

1шт.

13

67397C1

BAFFLE

LH diff brg oil

1шт.

14

67595C2

RETAINER

differential brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

15

380202R1

SHIM

diff brg retainer, .007 (As required)

2-4шт.

15

380203R1

SHIM

diff brg retainer, .012 (Or as required)

4шт.

15

380204R1

SHIM

diff brg retainer, .030

1шт.

15

380205R1

SHIM

diff brg retainer, .004

1шт.

15

385155R1

SHIM

diff brg retainer, .003

1шт.

16

104657C1

SHAFT

bull pinion & brake

2шт.

17

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

bull pinion shaft cone

4шт.

18

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion shaft cup

4шт.

1268694C91

PACKAGE

BEVEL GEAR & PINION, matched set, Consists of

1шт.

TAG (NSS)

1шт.

GEAR, bevel, 52T (NSS)

1шт.

SHAFT, main & drive bevel (NSS)

1шт.
