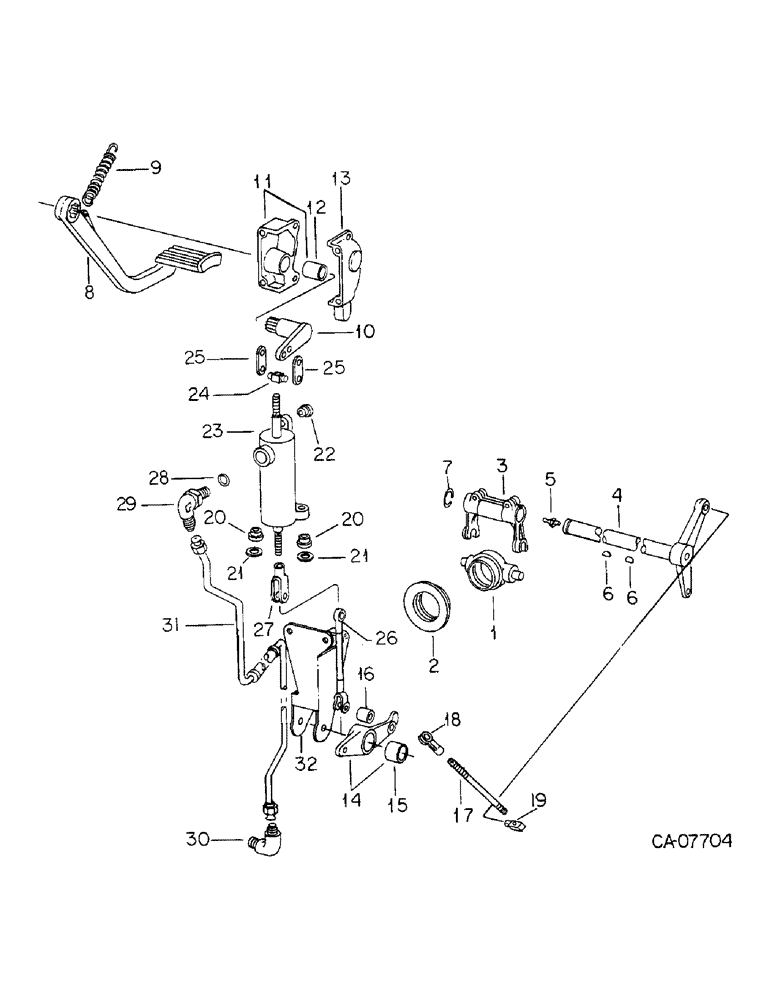

Запчасти Case IH 6788 (07-03) - DRIVE TRAIN, CLUTCH CONTROLS AND CONNECTIONS (04) - Drive Train

1

380109R1

SLEEVE

clutch release

1шт.

.

445684

PLUG

1/8-27 pln sq/hd auto pipe

1шт.

2

69789C91

BEARING ASSY

PACKAGE, clutch release bearing

1шт.

3

380110R1

FORK

clutch release

1шт.

3

380110R1GV

CLUTCH

Value, Clutch Release

1шт.

.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

4

104037C1

SHAFT

ASSY, clutch release

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

2шт.

6

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

3/16 x 7/8 Woodruff 11, clutch release fork

2шт.

7

384305R1

RING

clutch release shaft retaining

1шт.

8

104039C2

PEDAL

clutch

1шт.

.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

104783C1

SPRING

clutch pedal return

1шт.

.

CONDUIT, convoluted, furnish 4.25 inches from bulk roll marked 2643132R1

1шт.

10

104040C1

ARM

ASSY, clutch pedal, lever

1шт.

11

120174C91

SUPPORT

ASSY, clutch pedal pivot

1шт.

12

120173C1

BUSHING,30.28mm ID x 32.56mm OD x 47.37mm L

clutch pedal pivot, bearing

1шт.

13

104516C1

SUPPORT

control pivot

1шт.

.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

.

102635

NUT,3/8"-16, G5

2шт.

.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

14

144062C91

LEVER

ASSY, clutch operating, bellcrank

1шт.

15

144063C1

BUSHING,28.68mm ID x 31.75mm OD x 34.8mm L

clutch bellcrank, bearing

1шт.

16

1253155C1

SPACER

bellcrank shaft

1шт.

.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

.

25526R1

NUT,1/2"-13, G8

1/2 phc type 8

1шт.

17

1253167C1

SCREW,1/2" - 20, LH x 142mm

clutch adj

1шт.

18

19457R1

CLEVIS

1/2 pln LH/thd sht adj

1шт.

.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

19

120209C1

CLAMP

clutch linkage adj

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-NF x 3/4 type 5

1шт.

20

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

booster isomount lower mtg

2шт.

21

536642R1

WASHER

isomount bushing

2шт.

22

104053C1

BUSHING,10.31mm ID x 20mm OD x 18.8mm L

booster isomount

1шт.

23

113965C93

CYLINDER

BOOSTER ASSY, clutch, For components see list of parts under details of clutch booster listing this group

1шт.

.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

3шт.

24

104056C2

PIVOT

booster input, trunnion

1шт.

.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

25

104057C1

BAR

booster input, link

2шт.

.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 phc clevis

1шт.

.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

26

1253164C1

ROD

ASSY, booster output

1шт.

.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 phc clevis

2шт.

.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

27

144243

CLEVIS

3/8 znd adj rod end

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, booster dump port

1шт.

29

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg, booster dump port

1шт.

30

321808R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

1/2-37 deg x 1/4 npt 90 deg, lower LH side of clutch housing

1шт.

31

104810C3

HYD TUBE

& HOSE ASSY, clutch booster dump

1шт.

32

1253168C1

BRACKET

ASSY, clutch

1шт.

.

NLS

NO LONGER SERVICED

2шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

.

125-10003

NUT,3/8"-16, G5, LH

3/8 pln type 5

1шт.

.

1253171C92

BRACKET

PACKAGE, clutch bracket service, Consists of

1шт.

.

1253168C1

BRACKET

ASSY

1шт.

.

24866R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

Hex, 1/2"-13 x 2 1/2", G8

1шт.

.

25526R1

NUT,1/2"-13, G8

1шт.

.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

.

1253167C1

SCREW,1/2" - 20, LH x 142mm

1шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

.

1253164C1

ROD

ASSY

1шт.

.

1253155C1

SPACER

1шт.

.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

.

19457R1

CLEVIS

1шт.

.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

.

125-10003

NUT,3/8"-16, G5, LH

1шт.

.

INSTRUCTIONS (NSS)

1шт.
