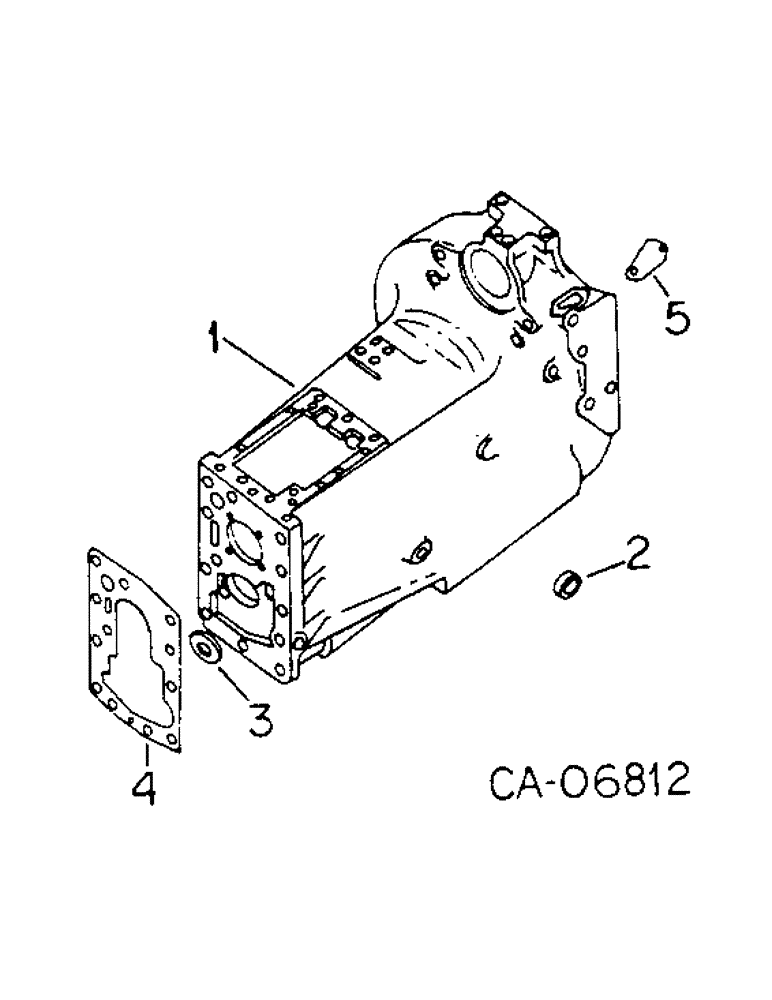

Запчасти Case IH 6788 (07-02) - DRIVE TRAIN, CLUTCH HOUSING (04) - Drive Train

1

139156C93

HOUSING

ASSY, clutch, Consists of

1шт.

HOUSING W/TUBES (NSS)

1шт.

TUBE, suction (NSS)

1шт.

TUBE, diff. lub (NSS)

1шт.

TUBE, spray lub (NSS)

1шт.

TUBE, power steering pres (NSS)

1шт.

TUBE, power steering ret (NSS)

1шт.

1017956R1

PLUG,Cap, .610" OD

4шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

1шт.

381611R1

SEAT

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

7шт.

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 5/8 x 2.250 phc ast 12pt flg

1шт.

285921

SCREW, 5/8 x 2 phc h/shd cap

1шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

10шт.

2

381611R1

SEAT

valve

1шт.

3

384114R91

NEEDLE BEARING

countershaft frt needle

1шт.

4

224903C1

GASKET

clutch housing

1шт.

5

104402C1

COVER

engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
