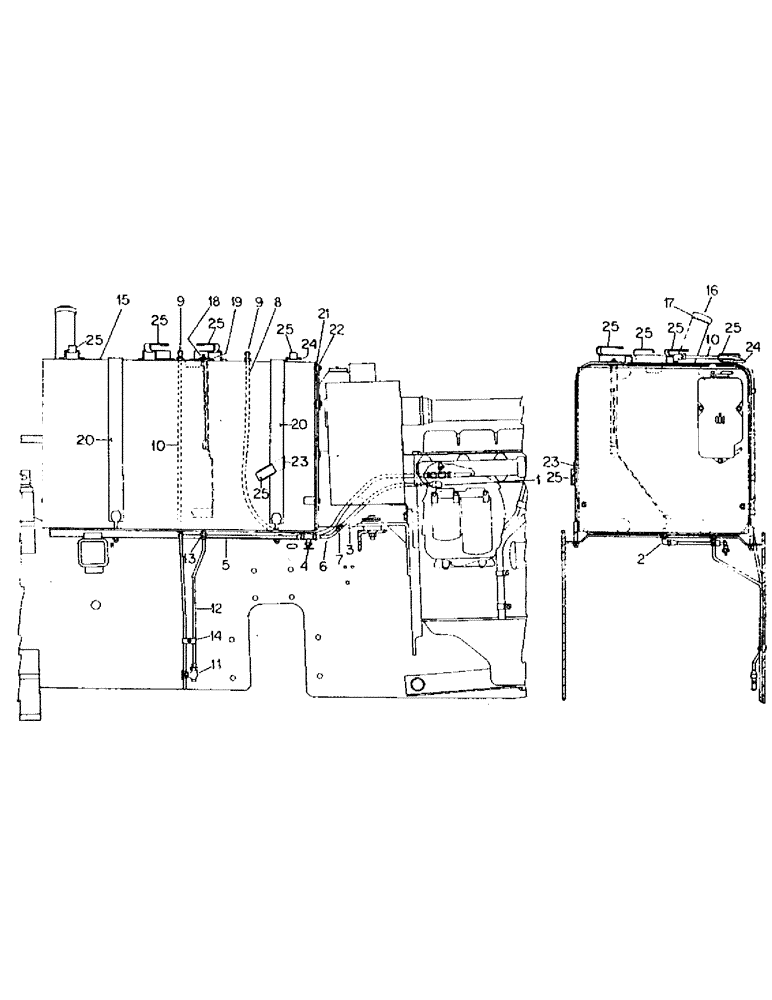

Запчасти Case IH 6788 (12-04) - POWER, FUEL TANK, SUPPORT AND FUEL LINES Power

1

104469C1

ELBOW

male 90 deg, 1/2 tube, 1/4 pipe thread, tank to filter filler end

1шт.

2

138955C2

ELBOW

ASSY, fuel supply

1шт.

3

HOSE, tank to filter, tube, Use 458MM (18.03 in.) of 1/2 OD nylon tube from a bulk roll marked 74814C1

1шт.

4

138979C1

VALVE

ASSY, fuel supply shut-off, 5/8 str thd, tank to fuel filter

1шт.

5

138972C2

FUEL TUBE

TUBE ASSY, fuel supply

1шт.

6

138966C3

FUEL TUBE,0.375" OD, 50 mm Length

TUBE, fuel supply

1шт.

NLS

NO LONGER SERVICED

NUT, 5/8 pln 45D flared tube

1шт.

7

137597C1

ADAPTER,11/16" - 20

fuel line

1шт.

8

HOSE, fuel return line, tube, Use 1501MM (59.10 in.) of 3/8 OD nylon tube from a bulk roll marked 74813C1

1шт.

9

182960H1

ELBOW

male 90 deg 3/8 tube

2шт.

10

HOSE, fuel vent line, Use 1501MM (60 in.) of 3/8OD nylon tube from a bulk roll marked 74813C1

1шт.

11

138979C1

VALVE

fuel tank drain, 3/8 tube, 1/4 male pipe thread

1шт.

12

138945C1

FUEL TUBE

TUBE ASSY, fuel drain

1шт.

13

442323

CONNECTOR, ELEC

CONNECTOR, 3/8 tube brass inverted flare

1шт.

14

299404C1

CLAMP

3/8 tube closed

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

15

TANK ASSY, fuel 89 gal, 6388, Serial Range: -9072

1шт.

Order tank assy, 142108C1 and package, 1268918C91.

1шт.

15

TANK ASSY, fuel 89 gal, 6588, Serial Range: -9276

1шт.

Order tank assy, 142108C1 and package, 1268918C91.

1шт.

15

TANK ASSY, fuel 89 gal, 6788, Serial Range: -8967

1шт.

Order tank assy, 142108C1 and package, 1268918C91.

1шт.

15

142108C1

TANK

ASSY, fuel, 6388, Start Serial: 9073

1шт.

15

142108C1

TANK

ASSY, fuel, 6588, Start Serial: 9277

1шт.

15

142108C1

TANK

ASSY, fuel, 6788, Start Serial: 8968

1шт.

221-846

PLUG,Hex Soc, 1"-11 1/2

(1) 11-1/2 pln sq/hd auto pipe

1шт.

16

104781C1

CAP

fuel tank filler

1шт.

17

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

18

121810C1

ELECTRICAL GAUGE

GAUGE, electric fuel, sending unit

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, 10-24 x 1/2 mach

5шт.

19

104812C1

GASKET

sending unit

1шт.

20

143627C2

STRAP

ASSY, fuel tank hold down, 5/8-11 thread

2шт.

STRIP, fuel tank strap, padding, Use 1630MM (64.2 in.) from bulk roll marked 990543R1

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln p/t lock type 5

4шт.

21

138834C3

SHIELD

ASSY, heat

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

4шт.

615031R1

WASHER

.375 x .875 x .064 pln

4шт.

22

NOT REQUIRED

1шт.

23

1258395C1

SUPPORT

ASSY, hose clip lower

1шт.

24

1258398C1

SUPPORT

ASSY, hose clip upper

1шт.

25

1258394C1

CLIP

hose

6шт.

142108C1

TANK

ASSY, fuel

1шт.

1268918C91

STRIPPER PACKAGE

PACKAGE, fuel tank completing service, See group 2 for breakdown.

1шт.
