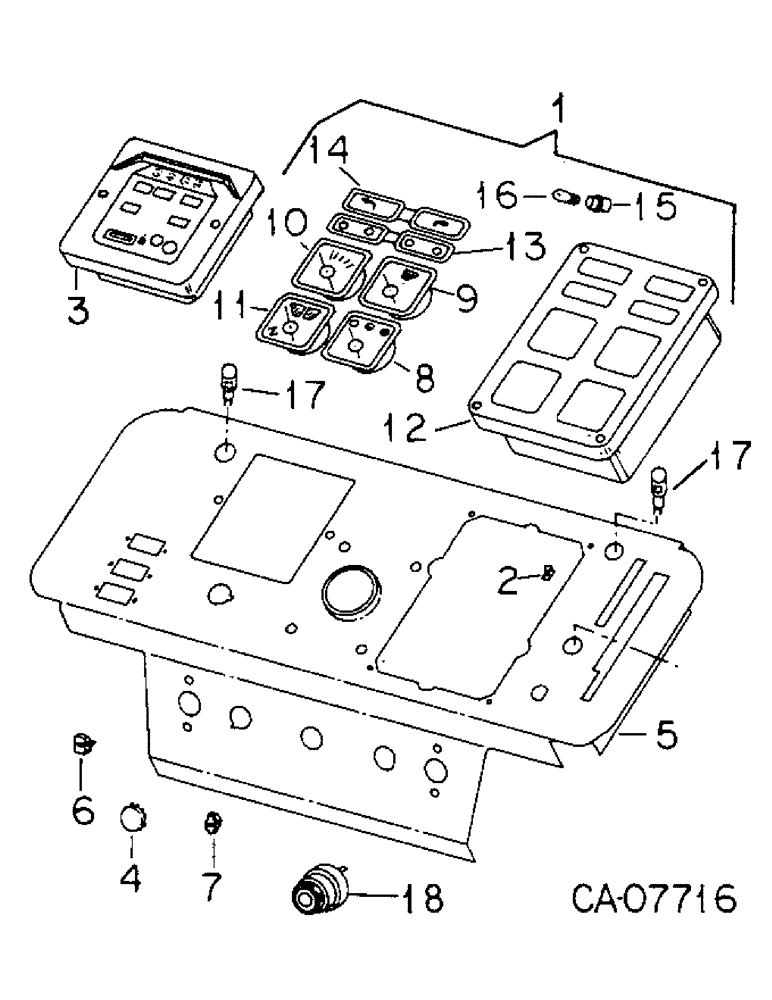

Запчасти Case IH 6788 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

1252533C91

CLUSTER

CLUSTER ASSY, instrument

1шт.

2

103957C1

NUT

NUT, J-shaped spring

6шт.

1270773C1

SELF-TAP SCREW,Cross Oval Hd, #10 - 16 x 1"

SCREW, no. 10 x 1 polyseal tap

6шт.

1252486C2

ELECTRICAL GAUGE

ELECTRICAL GAUGE, new

1шт.

3

1252488C1

REMAN-ELECT GAUGE

GAGE, data center, Renewed

1шт.

1935041C1

CORE-MONITOR

Return Number, ELECTRICAL GAUGE - for N.A. Only

1шт.

4

432327

HOLE PLUG BUTTON,1"

PLUG, button, firewall

1шт.

4

141879C1

PLUG

PLUG, auxiliary lighting switch

1шт.

4

28370R1

SPARE PART PLUG, 29/32 hole cigar lighter hole 29/32"

1шт.

5

1257907C2

PANEL

PANEL ASSY, instrument, tractor w/o tilt steering wheel

1шт.

5

148496C2

PANEL

PANEL ASSY, instrument, tractor w/tilt steering wheel

1шт.

6

104035C1

FASTENER

FASTENER, upper inst. hsg spacer, nut

1шт.

7

104036C1

NUT

NUT, instrument hsg mtg

10шт.

8

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

9

121605C2

ELECTRICAL GAUGE

GAUGE, temp

1шт.

10

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

11

121607C1

METER

VOLTMETER

1шт.

12

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

refer #12 (P/N 121608C1) -> box not included. Must order cluster assy #107336C92

1шт.

13

1252610C1

LENS

LENS, warning light

1шт.

14

121610C1

LENS

LENS, turn signal

1шт.

15

121611C1

SOCKET

SOCKET ASSY, instrument cluster

8шт.

16

20627R1

BULB,C2F, #194, 14V

BULB, lamp no. 194

8шт.

17

107370C91

HOUSING

LIGHT ASSY, instrument panel, Only serviceable items are

2шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

130894C1

LENS

LENS

1шт.

18

NOT USED IN THIS APPLICATION

1шт.
