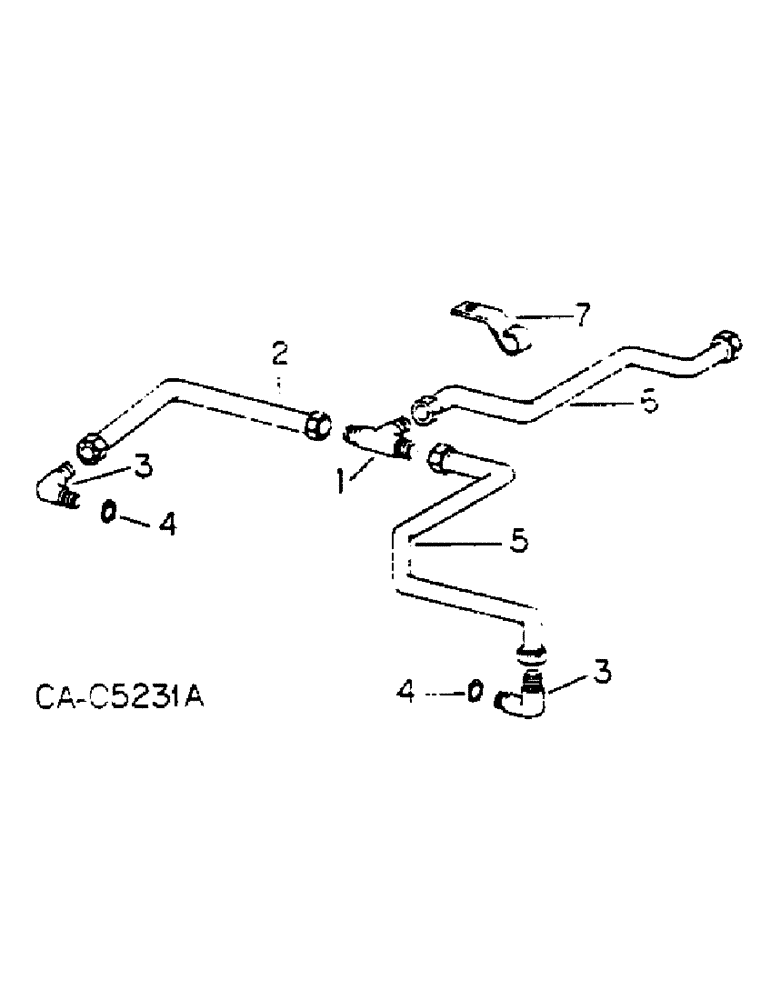

Запчасти Case IH 6788 (04-04) - BRAKES, MASTER BRAKE LUBRICATION (5.1) - BRAKES

1

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 37 deg hyd flared tube two-way

1шт.

2

104774C2

TUBE

ASSY, brake lub crossover

1шт.

3

71864C2

90 ELBOW

5/8-3/8 37 deg hyd flared tube 90 deg reducer w/orifice

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

5

120244C1

HYD TUBE

TUBE ASSY, brake lub RH, tractor w/o differential lock

1шт.

5

120245C1

HYD TUBE

TUBE ASSY, brake lub RH, tractor w/differential lock

1шт.

120333C2

CONNECTOR, ELEC

CONNECTOR, brake orifice, tractor w/differential lock

1шт.

7

120435C1

CLAMP

CLIP, brake lube

1шт.
