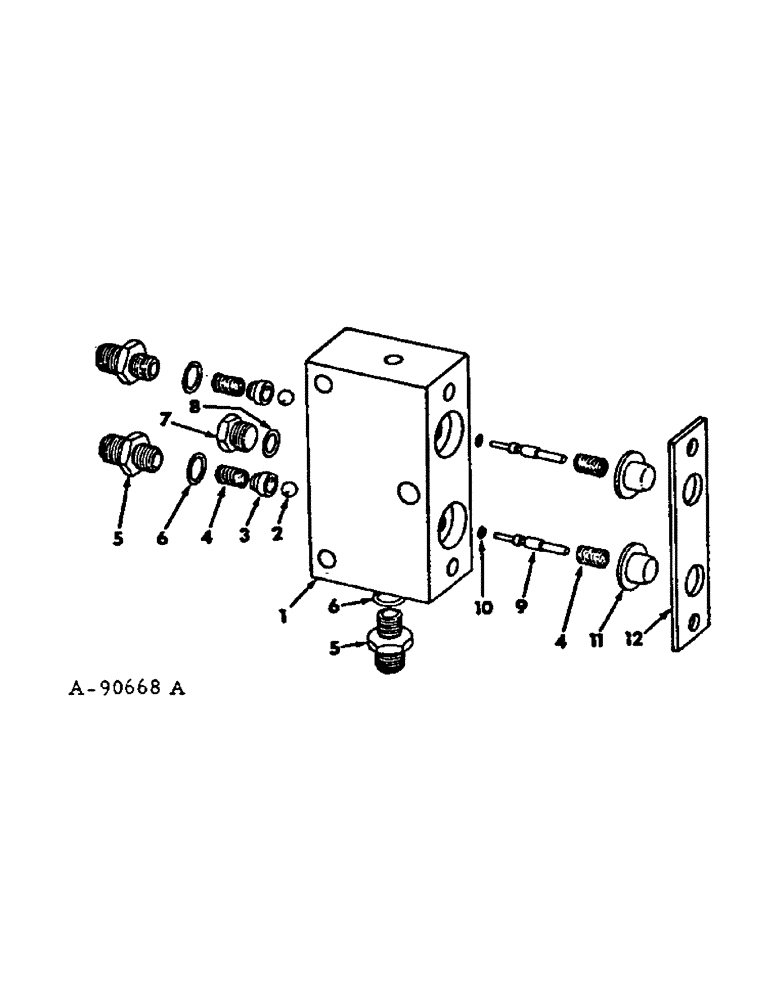

Запчасти Case IH 6788 (10-44) - HYDRAULICS, HYDRAULIC SEAT VALVE (07) - HYDRAULICS

399088R92

VALVE

ASSY, hydraulic seat control

1шт.

1

BODY ASSY, seat adjustment, Not serviced separately, Order valve assy

1шт.

2

17007R1

BALL

7/32 cr-stl

2шт.

3

399391R1

RETAINER

ball

2шт.

4

399392R1

SPRING

check ball

4шт.

5

404257R1

UNION

spring guide

3шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, valve body connector

3шт.

7

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 str-th o-ring boss

1шт.

8

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube, Valve body plug

1шт.

9

399393R2

PISTON

seal valve

2шт.

10

399394R1

O-RING,0.551" ID x 0.07" Width

1/16 x 3/16 x 1/16, seat valve piston

2шт.

11

399395R1

CAP

seat valve piston

2шт.

12

399396R1

BAR

seat valve piston

1шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

1/4-NF x 3/8 pln type 5

2шт.
