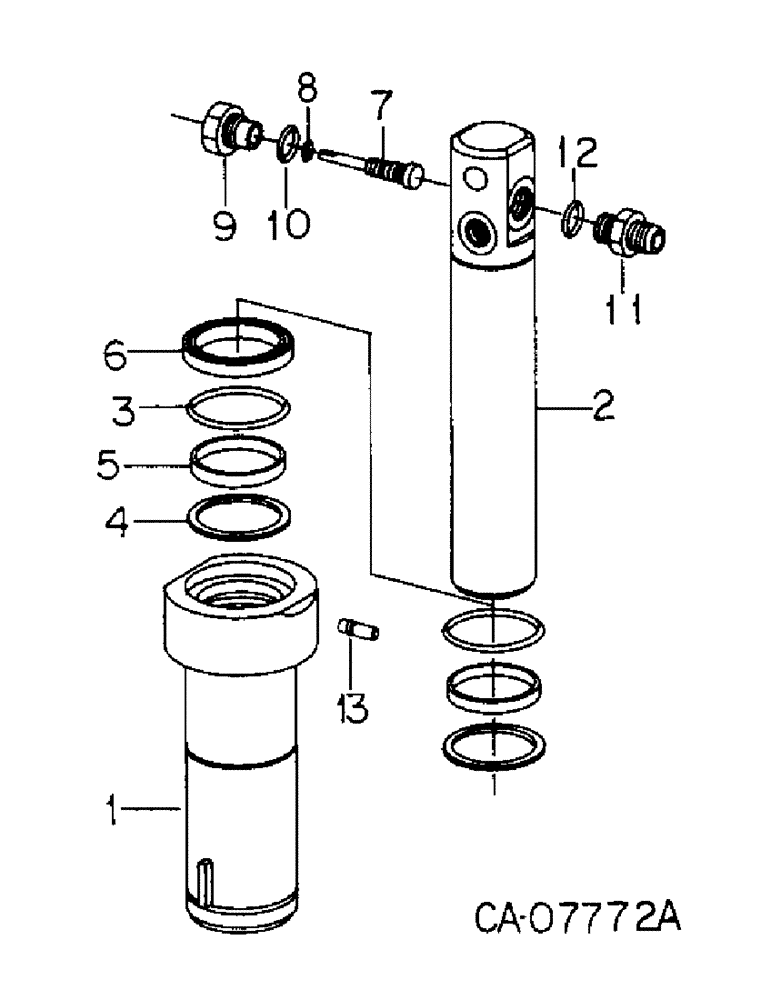

Запчасти Case IH 6788 (10-43) - HYDRAULICS, HYDRAULIC CYLINDER, HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS

149674C94

CYLINDER

ASSY, single acting RAM hyd

1шт.

1

149660C3

BODY

ASSY, hydraulic cylinder, Also order wiper, 123354C1

1шт.

2

399313R4

ROD

ASSY, hyd cylinder

1шт.

3

O-RING, 1-13/16 x 2 x 3/32

1шт.

Order kit 79241C1.

1шт.

4

WASHER, cylinder rod o-ring back-up

1шт.

Order kit 79241C1.

1шт.

5

WIPER, rod

1шт.

Order kit 79241C1.

1шт.

6

RING, cyl rod rectangular

1шт.

Order kit 79241C1.

1шт.

7

149659C1

VALVE

SCREW, adjusting valve

1шт.

8

O-RING, 5/16 x 7/16 x 1/16, adjusting screw

1шт.

Order kit 79241C1.

1шт.

9

399318R2

RETAINER,Hex, 7/8" - 14 x 0.615"

adjusting screw

1шт.

10

O-RING, 3/4 x 15/16 x 3/32

1шт.

Order kit 79241C1.

1шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel, hydraulic cylinder body

1шт.

12

O-RING, .644 x .818 x .087

1шт.

13

1266771C1

NIPPLE, LUBE

NIPPLE, hose

1шт.

79241C1

PACKAGE

KIT, hyd cylinder service

1шт.
