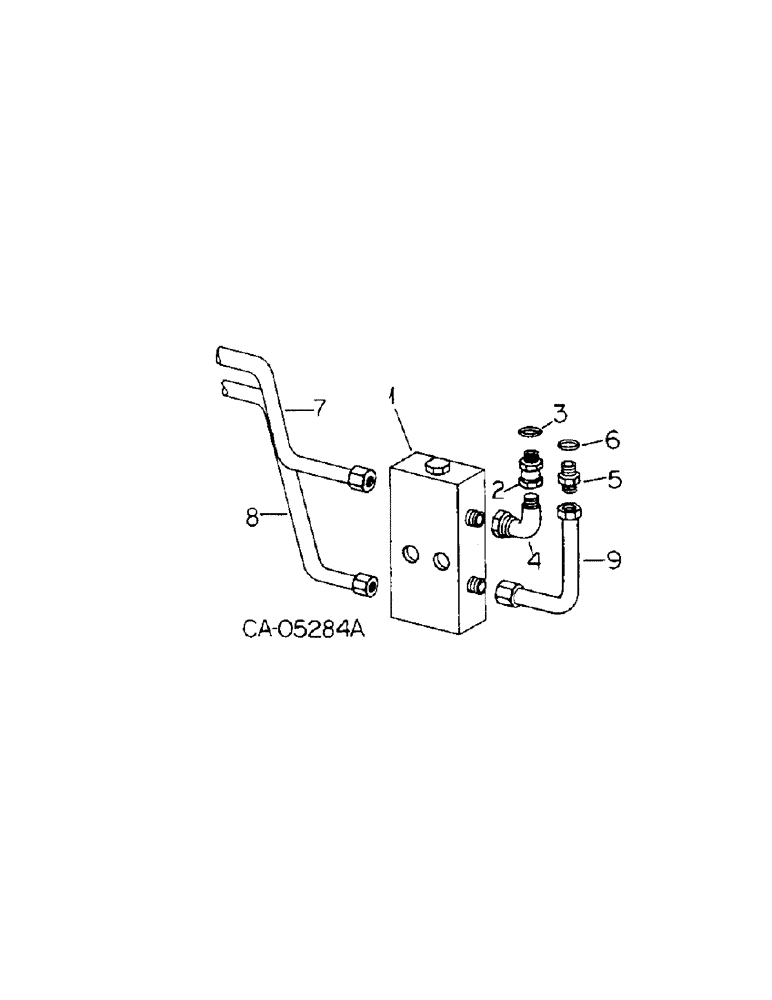

Запчасти Case IH 6788 (10-40[A]) - HYDRUALICS, ALTERNATING CHECK VALVE CONNECTIONS (07) - HYDRAULICS

1

142864C95

VALVE

ASSEMBLY, alternating check

1шт.

2

66895C1

FITTING

COUPLER, check valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

127957C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

7

128012C1

HYD TUBE

TUBE ASSY, 3rd valve raise

1шт.

8

127958C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

8

128013C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

9

127956C1

HYD TUBE

TUBE ASSY, check valve to aux valve

1шт.

139166C91

LOCK VALVE

PARTS ACCESSORY, alternating check valve for second aux valve, Consists of

1шт.

142864C95

VALVE

ASSY, check

1шт.

66895C1

FITTING

COUPLER

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

127957C1

HYD TUBE

TUBE

1шт.

127958C1

HYD TUBE

TUBE

1шт.

127956C1

HYD TUBE

TUBE

1шт.

139167C91

PARTS ACCESSORY, alternating check valve for third aux valve, Consists of

1шт.

142864C95

VALVE

ASSY, check

1шт.

66895C1

FITTING

COUPLER

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

128012C1

HYD TUBE

TUBE

1шт.

128012C1

HYD TUBE

TUBE

1шт.

128013C1

HYD TUBE

TUBE

1шт.

127956C1

HYD TUBE

TUBE

1шт.
