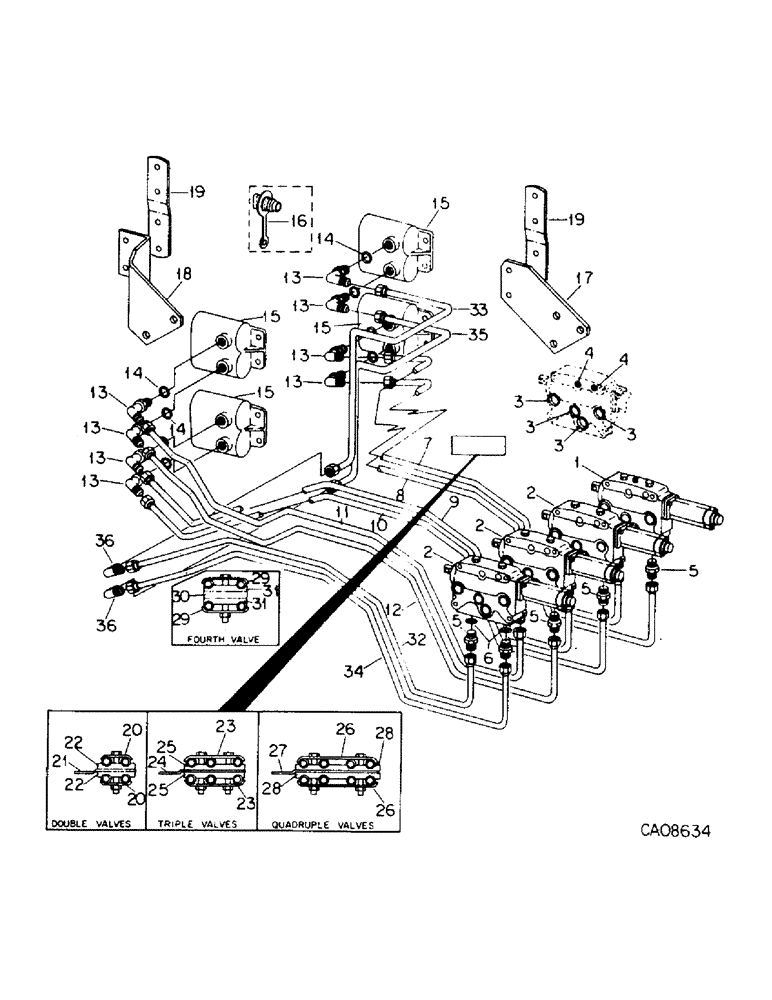

Запчасти Case IH 6788 (10-33) - HYDRAULICS, TWO, THREE AND FOUR AUXILIARY VALVE CONNECTIONS (07) - HYDRAULICS

1

123032C93

VALVE

ASSY, close center motor control, For components see list of parts under details of motor control valve

1шт.

20063R1

BOLT

3/8 x 5 pln type 8

2шт.

2

113888C93

VALVE

ASSY, close center aux control, double valves, For components see list of parts under details of auxiliary control valve

1шт.

2

113888C93

VALVE

ASSY, close center aux control, triples valves, For components see list of parts under details of auxiliary control valve

2шт.

2

113888C93

VALVE

ASSY, close center aux control, quadruple valves, For components see list of parts under details of auxiliary control valve

3шт.

20063R1

BOLT

3/8 x 5 pln type 8, For double valves

4шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

3/8 x 7 pln type 8, For triple valves

4шт.

20850R1

BOLT,Hex, 3/8"-16 x 8 1/2", G8

3/8 x 8-1/2 pln type 8, For quadruple valves

4шт.

3

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 class 6, 4 per valve

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 class 6, 2 per valve

1шт.

5

9510204

CONNECTOR, 5/8 C-Z hyd fld short swivel, per valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 2 per valve

1шт.

7

128010C1

HYD TUBE

TUBE ASSY, 1st valve raise

1шт.

8

128011C1

HYD TUBE

TUBE ASSY, 1st valve drop

1шт.

9

127966C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

10

127967C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

11

133430C1

HYD TUBE

TUBE ASSY, 3rd valve raise, tractors w/cat. II 3 pt hitch

1шт.

11

127968C1

TUBE

ASSY, 3rd valve raise, tractors w/cat. III 3 pt hitch

1шт.

12

127969C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D, 2 per coupler

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 2 per coupler

1шт.

15

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, IH coupler

1шт.

One per valve, For componets see list of parts under details of female coupler.

1шт.

15

1272192C91

COUPLING

COUPLER ASSY, female, ISO coupler

1шт.

One per valve, For componets see list of parts under details of female coupler.

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

1/2 x 7/8 pln type 5

4шт.

16

64757C1

PLUG

coupler dust, w/IH coupler, 2 per coupler

1шт.

17

535033R3

BRACKET

coupler mtg LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

2шт.

18

1259805C1

BRACKET

coupler mtg RH, Replaces 104317C1

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

19

120012C1

SUPPORT

BAR, coupler mtg, triple valves

1шт.

19

120012C1

SUPPORT

BAR, coupler mtg, quadruple valves

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5, 2 per bar

1шт.

20

486004R1

CLAMP

double aux alve tubes

2шт.

21

104796C1

PLATE

double aux valve tubes

1шт.

22

104799C1

STRIP

double aux valve tube

2шт.

23

104795C1

CLAMP

triple aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

24

104797C1

PLATE

triple aux valve tubes

1шт.

25

104798C1

STRIP

triple aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

26

120520C1

CLAMP

quadruple valve tubes

2шт.

27

120521C1

PLATE

quadruple valve tubes

1шт.

28

120522C1

STRIP

quadruple valve tubes

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 ph cp/t lock type 5

1шт.

29

139113C1

CLAMP

fourth aux valve tubes

2шт.

30

139116C1

SPACER

fourth aux valve tubes

1шт.

31

139117C1

STRIP

fourth aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

32

1264793C1

TUBE

ASSY, 4th valve raise, front, Replaces 139079C1 by also ordering tube assys, 1264803C1, 1264794C1, & 1259804C1 and support, 1259805C1

1шт.

33

1259803C1

HYD TUBE

TUBE ASSY, 4th valve raise, rear, Replaces 139080C1 by also ordering tube assys, 1264793C1, 1264794C1, & 1259804C1 and support, 1259805C1

1шт.

34

1264794C1

TUBE

ASSY, 4th valve drop, front, Replaces 139081C1 by also ordering tube assys, 1264793C1, 1259803C1, & 1259804C1 and support, 1259805C1

1шт.

35

1259804C1

HYD TUBE

TUBE ASSY, 4th valve drop, rear, Replaces 139082C1 by also ordering tube assys, 1264793C1, 1259803C1, & 1264794C1 and support, 1259805C1

1шт.

36

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd fld tube 90D elbow

2шт.
