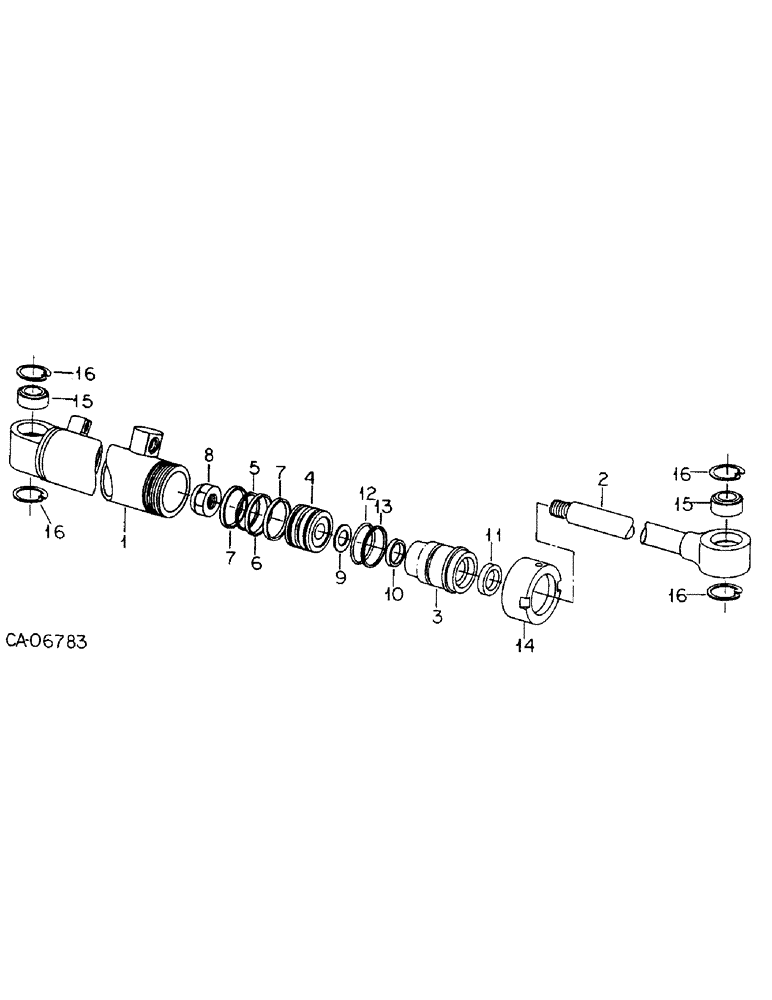

Запчасти Case IH 6788 (10-19) - HYDRAULICS, POWER STEERING CYLINDERS (07) - HYDRAULICS

128198C92

CYLINDER

ASSY, LH power steering, For 38.75 degree tractor articulation

1шт.

142419C92

CYLINDER

ASSY, LH power steering, For 34.00 degree tractor articulation

1шт.

140738C92

CYLINDER

ASSY, RH power steering, For 38.75 degree tractor articulation

1шт.

142416C92

CYLINDER

ASSY, RH power steering, For 34.00 degree tractor articulation

1шт.

1

127721C2

BODY

ASSY, hyd cylinder LH, Used w/128198C92 & 142419C92 cylinders

1шт.

1

140739C2

BODY

ASSY, hyd cylinder RH, Used w/140738C92 & 142416C92 cylinders

1шт.

2

142422C1

ROD

piston, Used w/142419C92 & 142416C92 cylinders

1шт.

2

128199C1

ROD

piston, Used w/128198C92 & 140738C92 cylinders

1шт.

3

142424C1

HEAD

front, Used w/142419C92 & 142416C92 cylinders

1шт.

3

113957C1

HEAD

front, Used w/128198C92 & 140738C92 cylinders

1шт.

4

113840C1

PISTON

cylinder

1шт.

5

25205R1

O-RING,Rect, 2.5" ID x 2.875" OD, Cl 5

SEAL, piston inner

1шт.

6

545813R2

RING

SEAL, piston outer

1шт.

7

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

piston brg

2шт.

8

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-NF phc p/t lock 8

1шт.

9

127826C1

WASHER

piston

1шт.

10

119203C1

SEAL

SEAL, piston rod

1шт.

11

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER, piston rod

1шт.

12

318871R1

O-RING, 2-5/8 x 3 x 3/16 front head

1шт.

13

113999C1

WASHER

WASHER, back-up front head

1шт.

14

387375R1

RETAINER

front head

1шт.

15

127725C1

BUSHING

BEARING, self aligning ball

2шт.

16

452166R1

SNAP RING,2.165", Int, #216

Ring, Snap, , bushing 2.165", Int, #216

4шт.

72843C91

PACKAGE

KIT, hydraulic cylinder service, Consists of ref. nos. 5, 6, 7, 10, 11, 12 & 13

1шт.
