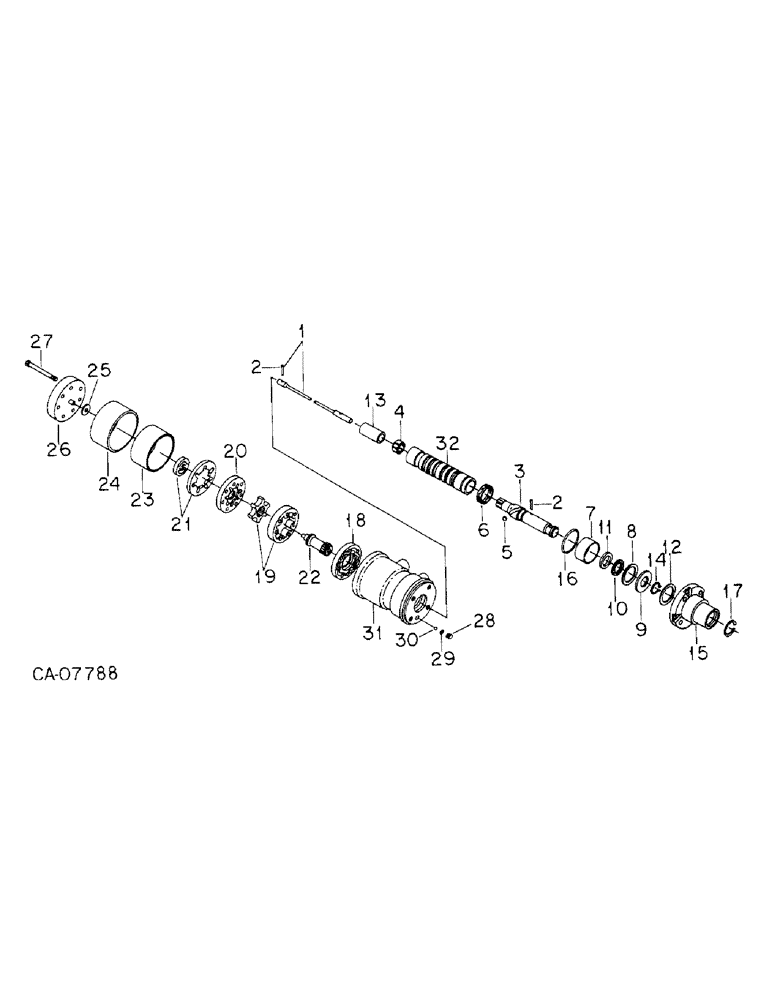

Запчасти Case IH 6788 (10-18) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

1282355C91

PUMP

STEERING ASSY, internal hydrostatic, Replaces 1255295C91

1шт.

1

1255444C1

BAR

ASSY, torsion

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

17010R1

BALL,5/16" Dia

1шт.

6

79012C1

PACKAGE

KIT, ball retainer

1шт.

7

79013C1

SPACER

1шт.

8

928469C1

WAVE WASHER

wave

1шт.

9

535087R1

THRUST WASHER

thrust

1шт.

10

379783R91

THRUST BEARING

BEARING ASSY, thrust

1шт.

11

379785R1

THRUST WASHER

WASHER, thrust

1шт.

12

67567C1

PACKAGE

KIT, shim, Consists of

1шт.

SHIM, .002 (NSS)

1шт.

SHIM, .030 (NSS)

1шт.

SHIM, .005 (NSS)

1шт.

SHIM, .010 (NSS)

1шт.

13

535093R1

SPACER

drive link

1шт.

14

928752C1

RING

retaining

1шт.

15

70115C1

COVER

ASSY, upper

1шт.

197292H1

CAPSCREW,Flange, 5/16" x 0.75", Alloy Steel

SCREW, 5/16 x .750 pln ast 12pt flg

4шт.

16

535091R1

RING

seal

1шт.

17

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

18

76917C1

SPACER

torsion bar

1шт.

19

76918C1

ROTOR

SET

1шт.

20

535096R1

MANIFOLD

1шт.

21

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

22

76922C1

LINK

GEAR

1шт.

23

76919C1

SEAL

rotor

1шт.

24

76920C1

RETAINER

seal

1шт.

25

535100R1

THRUST WASHER

1шт.

26

535101R1

COVER

ASSY, end

1шт.

27

76921C1

BOLT

end cover

7шт.

28

71085C1

PLUG

o-ring

2шт.

29

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

2шт.

30

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

31

BODY ASSY, Not serviced separately, Order pump assy

1шт.

32

SPOOL, body, Not serviced separately, Order pump assy

1шт.

224712C1

SEAL KIT

PACKAGE, hydrostatic power steering, hand pump service, Consists of

1шт.

RING, shaft seal (NSS)

1шт.

SEAL (NSS)

1шт.

SEAL SPACER (NSS)

1шт.

SEAL, dust (NSS)

1шт.

133520C92

PUMP

TRW

1шт.

1255295C91

PUMP

TRW

1шт.

1282355C91

PUMP

TRW

1шт.

1282414C92

PUMP

Eaton & Charlynn

1шт.

1272916C91

PUMP

steering

1шт.

1272916C91R

REMAN-HYD PUMP

6388, 6588 & 6788 ( All 1/81-12/83)

1шт.

1272916C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1971441C1

SEAL

shaft

1шт.
