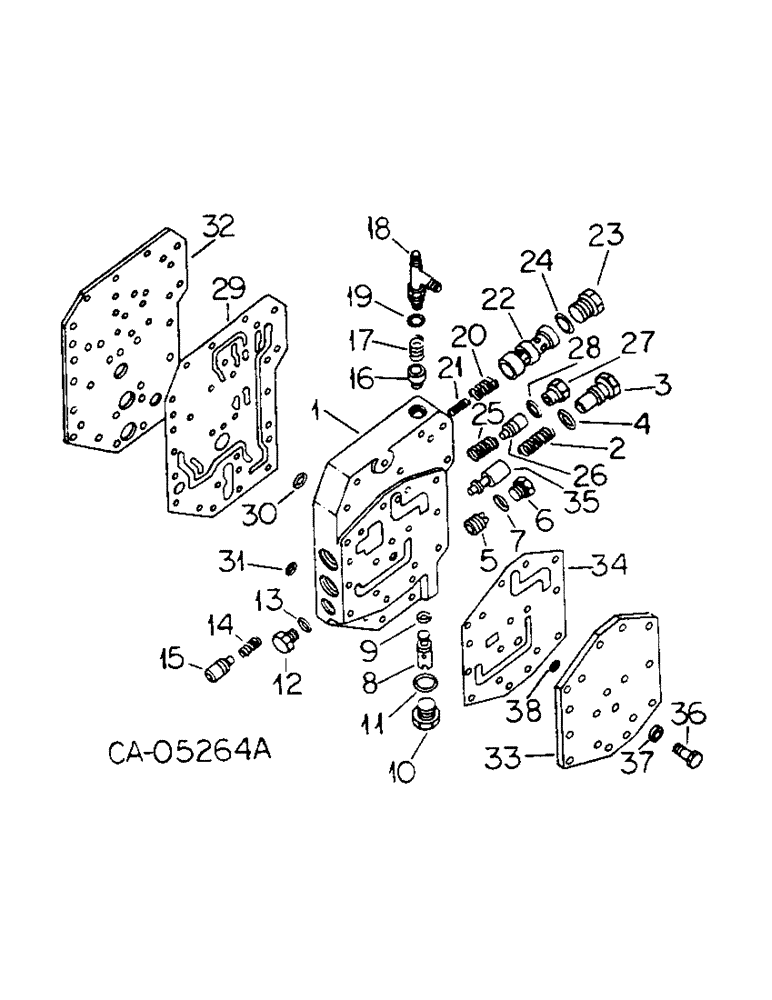

Запчасти Case IH 6788 (10-14) - HYDRAULICS, MULTIPLE CONTROL VALVE, TRACTORS WITHOUT TORQUE AMPLIFIER (07) - HYDRAULICS

1263287C91

PACKAGE

VALVE ASSY, multiple control, See breakdown at end of this list

1шт.

1

BODY ASSY, multiple control valve, Not serviced separately, Order service package, 1263287C91

1шт.

2

379211R1

SPRING

flow control valve

1шт.

3

382297R1

PLUG

flow control valve

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, flow control valve plug

1шт.

5

63723C1

VENT

flow control, orifice

1шт.

6

9410357

PLUG

1/2-20 znd str-thd o-ring boss, flow control orifice port

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, safety valve

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, safety valve plug

1шт.

12

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 znd str-thd o-ring boss, power steering input port

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube, Power steering input port plug

1шт.

14

123357C1

SPRING

oil cooler by-pass valve

1шт.

15

123356C1

VALVE

by-pass

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 pln chamf str

1шт.

16

382304R1

CHECK VALVE

VALVE, brake check

1шт.

17

113936C1

SPRING

brake check valve, 6388 and 6588 tractors

1шт.

17

133545C1

SPRING

brake check valve, 6788 tractors

1шт.

18

123051C1

TEE

ASSY, hyd tube

1шт.

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd, 6788

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, regulator pressure port

1шт.

20

382306R1

SPRING

pressure regulator valve outer

1шт.

21

390819R1

VALVE SPRING

SPRING, pressure regulator valve inner, 6388 and 6588 tractors

1шт.

21

59752C1

SPRING

pressure regulator valve inner, 6788 tractors

1шт.

22

382307R11

VALVE

ASSY, pressure regulator

1шт.

23

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, pressure regulator valve

1шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, pressure regulator valve plug

1шт.

25

382312R1

SPRING

lube regulator

1шт.

26

382301R1

LOCK VALVE

VALVE

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 pln chamf str

1шт.

27

384403R1

PLUG

lube regulator by-pass valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, lube regulator by-pass valve plug

1шт.

29

382322R4

GASKET

multiple control valve inner

1шт.

30

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 class 6, pump pressure port

1шт.

31

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 class 6, power steering input port

1шт.

32

133426C1

PLATE

multiple control valve inner

1шт.

33

1263290C1

COVER

multiple control valve outer

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

34

382326R4

GASKET

multiple control valve cover

1шт.

35

VALVE, flow control, Not serviced separately, Order service package, 1263287C91

1шт.

36

25828R1

BOLT,Hex, 9/16" - 18 x 1", Gr 8

9/16-NF x 1 phc type 8

1шт.

37

138260C1

SEAL

Dyna

1шт.

38

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

1263287C91

PACKAGE

multiple control valve service, Consists of ref. nos. 1 thru 38 and service parts not applicable to this tractors

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9410360

PLUG

1шт.

113935C1

ELBOW

1шт.

384444R92

VALVE

1шт.

113937C1

SPRING

1шт.

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

CONNECTOR

1шт.

59752C1

SPRING

1шт.

9403371

CAP,37 Degree, 9/16"-18

1шт.

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

384444R92

VALVE

1шт.

INSTRUCTIONS (NSS)

1шт.

382298R1

JET

VENT

1шт.

7

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Flow control orifice port plug

1шт.
