Запчасти Case IH 6788 (10-11) - HYDRAULICS, HYDRAULIC STEERING CYLINDER MOUNTING (07) - HYDRAULICS

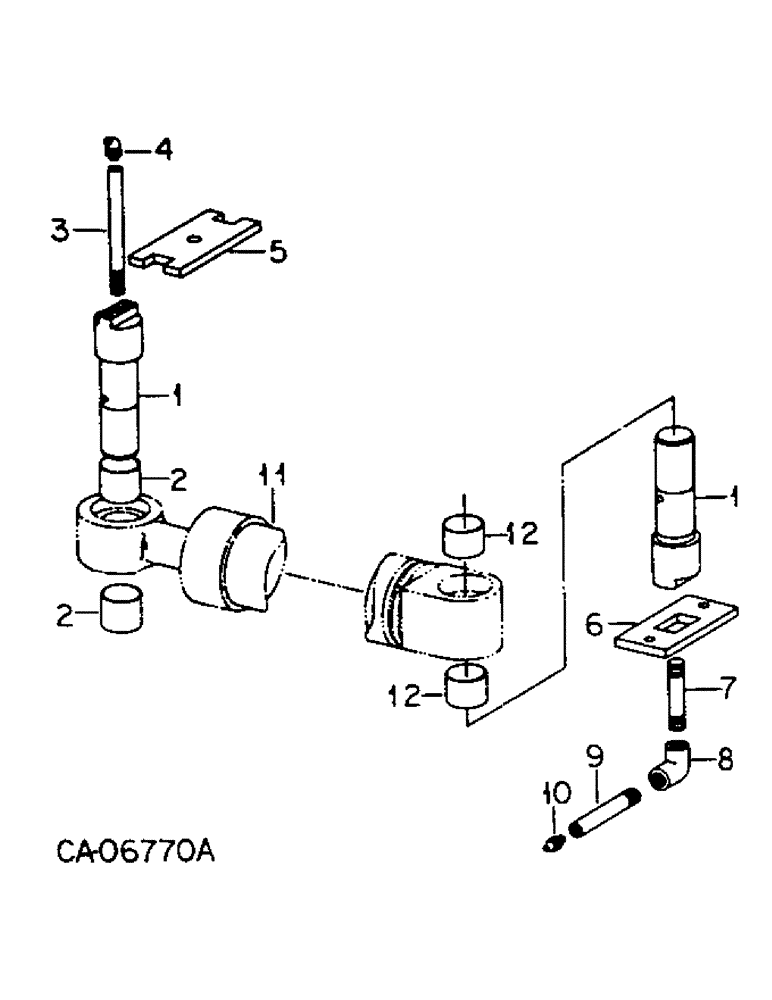

Схема запчастей Case IH 6788 - (10-11) - HYDRAULICS, HYDRAULIC STEERING CYLINDER MOUNTING (07) - HYDRAULICS
7
4
12
2
10
1
5
2
8
12
11
9
3
6
1

Артикул

Название

Примечание

Количество

1

1258209C1

SHAFT

steering cyl pivot

4шт.

2

132990C2

SPACER

steering cyl, transfer case

4шт.

3

146808C1

ADAPTER

lub fitting pipe

2шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

2шт.

5

132995C2

PLATE

shaft retainer rear

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

6

132996C2

LARGE PLATE

PLATE, shaft retainer front

2шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

4шт.

25724R1

WASHER

.406 x 1.125 x .134 hdn

4шт.

7

119247

PIPE,Nipple, 1/4" NPT x 4"

NIPPLE, 1/4 x 4 pipe

2шт.

8

444068

ELBOW

1/4-18 90 deg automotive pipe

2шт.

9

650410R1

ADAPTER

lub fitting pipe

2шт.

10

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 ptf special short lub

2шт.

11

CYLINDER, power steering, Refer to power steering & connections this group for cylinders

1шт.

12

132990C2

SPACER

steering cyl, front frame

4шт.

Выбрано товаров: 15
