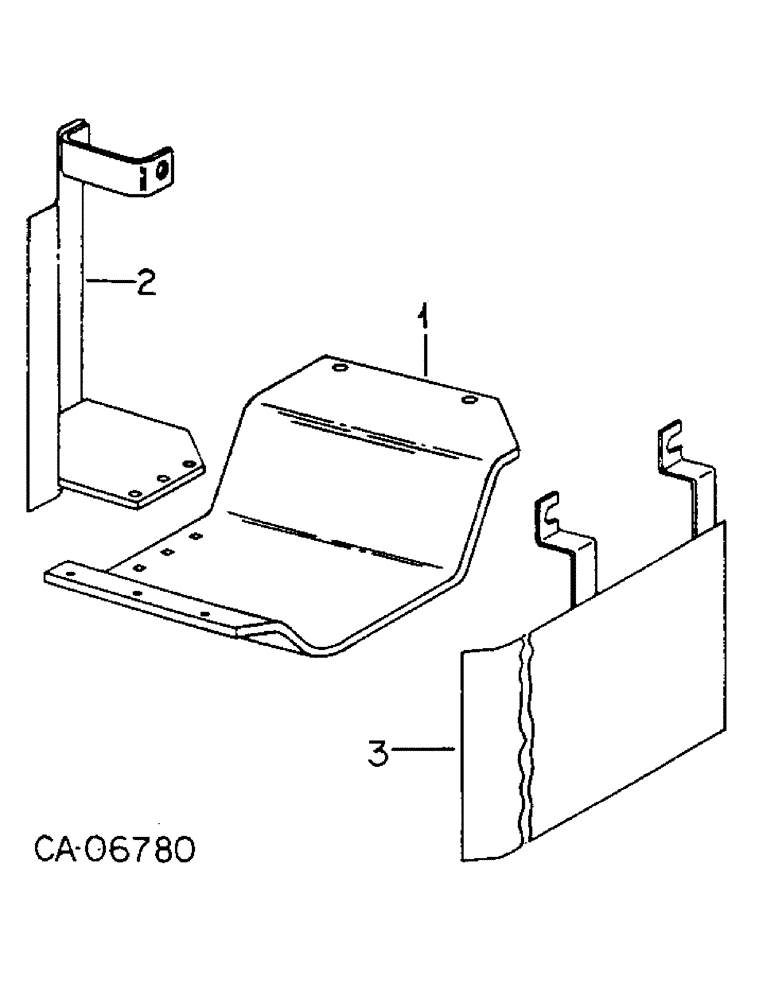

Запчасти Case IH 6788 (10-07) - HYDRAULICS, POWER STEERING PUMP SHIELDS (07) - HYDRAULICS

1

141894C2

SHIELD

ASSY, pump center

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8 x 2-1/2 pln type 5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

3шт.

67872C1

WASHER

.656 ID x 1.25 OD x .25 thk

8шт.

2

138993C1

SHIELD

ASSY, pump, RH

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 1-1/2 pln type 5

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

102637

NUT,1/2"-13, G5

3шт.

3

141786C1

SHIELD

ASSY, pump LH

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 1-1/2 pln type 5

1шт.

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

3/4 x 1 pln type 5

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.
