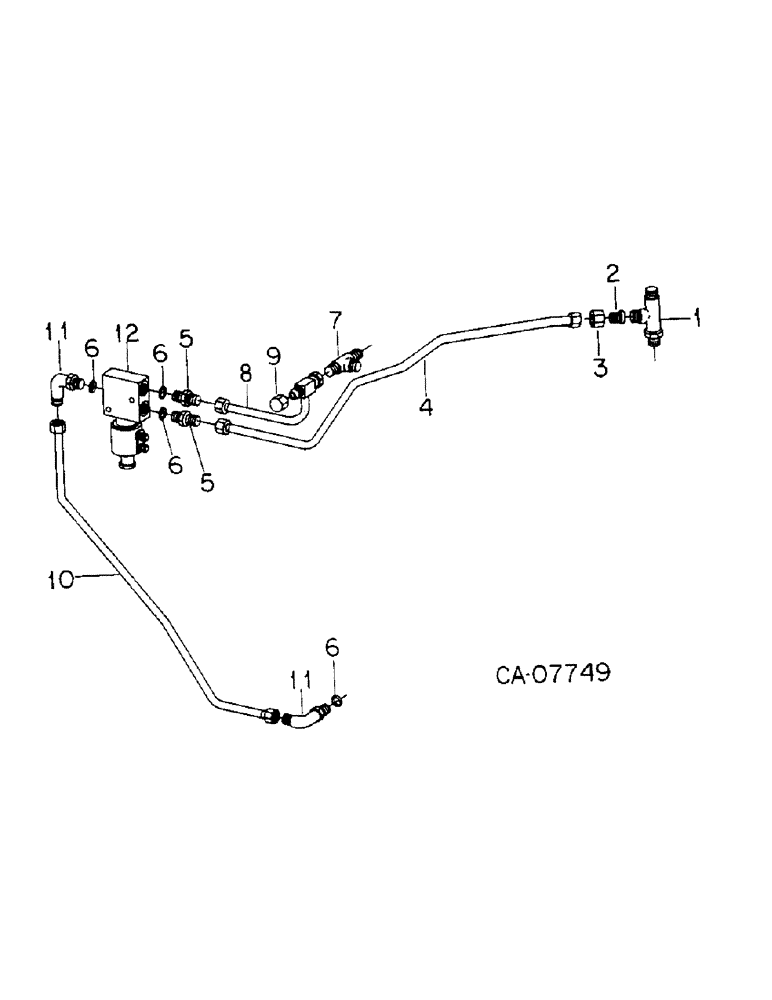

Запчасти Case IH 6788 (10-06) - HYDRAULICS, TRANSMISSION BRAKE TUBING (07) - HYDRAULICS

1

673526R1

TEE

supply

1шт.

2

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING, 1/2 x 3/8 C-Z hyd fld tube redr

1шт.

3

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 1/2 C-Z hyd fld tube style B

1шт.

4

1250167C1

TUBE,0.375" OD, 596.754" Length

ASSY, trans brake solenoid supply

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

2шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

7

9403098

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

3/8 C-Z hyd flared tube two way

1шт.

8

1250144C1

TUBE

ASSY, trans brake solenoid dump

1шт.

9

9403371

CAP,37 Degree, 9/16"-18

3/8 C-Z hyd flared tube

1шт.

10

1250146C2

TUBE

ASSY, trans brake piston supply

1шт.

11

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

12

SOLENOID, trans brake valve, Refer to differential lock and trans brake valve group 7

1шт.
