Запчасти Case IH 6788 (10-04) - HYDRAULICS, POWER STEERING PUMP DRIVE HOUSING (07) - HYDRAULICS

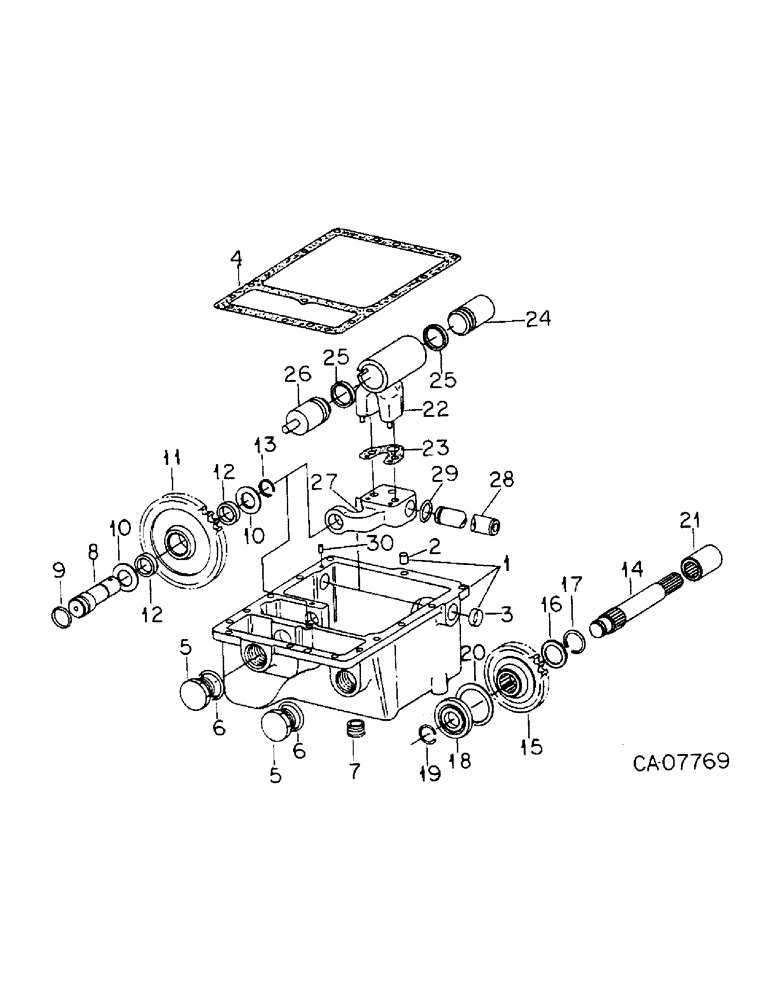

Схема запчастей Case IH 6788 - (10-04) - HYDRAULICS, POWER STEERING PUMP DRIVE HOUSING (07) - HYDRAULICS
8
23
10
25
28
1
4
29
27
14
2
24
6
13
9
5
25
12
22
21
18
7
5
26
12
19
11
10
6
3
20
15
17
30
16

Артикул

Название

Примечание

Количество

1

138919C93

HOUSING

ASSY, pump drive, Includes ref. no. 2 & 3

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

14шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 pln type 5

1шт.

104938

PLUG

#2 cork

1шт.

2

20024R1

PIN

3/8 x 1 pln hdn dowel

2шт.

3

318300R1

PLUG,Cup, 1"

1.000 cup

1шт.

4

134531C2

GASKET

pump drive housing

1шт.

5

9410364

PLUG

1-5/8-12 o-ring boss

2шт.

6

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 tube

2шт.

7

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto sq-soc pipe stl

1шт.

8

1250024C1

SHAFT

idler gear

1шт.

9

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8 idler gear shaft

1шт.

10

134492C1

THRUST WASHER

THRUST, idler gear

2шт.

11

134457C1

GEAR

idler

1шт.

12

134469C91

NEEDLE BEARING

ASSY, idler gear needle

2шт.

13

454417R1

SNAP RING,#100, Ext

Ring, Snap, , idler gear #100, Ext

1шт.

20690R1

PIN,1/4" x 3/4", Coiled

1шт.

14

134458C1

SHAFT

pump drive

1шт.

15

134455C1

GEAR

pump drive 27T

1шт.

16

134476C1

THRUST WASHER

SPACER, drive gear

1шт.

17

301020R1

SNAP RING,#118, Ext

Ring, Snap, , pump drive gear #118, Ext

1шт.

18

ST300

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING ASSY, ball

1шт.

19

454417R1

SNAP RING,#100, Ext

Ring, Snap, , bearing shaft #100, Ext

1шт.

20

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , brg housing 2.44", Int, #244

1шт.

21

134462C1

COUPLING, BREAK AWAY

COUPLER, pump drive

1шт.

22

130589C1

HOUSING

ASSY, speed trans brake

1шт.

23

130578C1

GASKET

speed trans brake housing

1шт.

24

130550C3

PISTON

ASSY, trans brake

1шт.

26023R1

PIN,1/4" x 5/8", Coiled

1шт.

25

116797C2

RING

piston seal

2шт.

26

130557C3

PISTON

ASSY, trans brake, standard

1шт.

25562R1

PIN,1/2" x 2 1/4"

1/2 x 2.250 pln hdn-dowel

1шт.

26

130550C3

PISTON

ASSY, tractor w/torque amp

1шт.

26023R1

PIN,1/4" x 5/8", Coiled

1шт.

27

1250023C1

SUPPORT

speed trans brake hsg

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2 pln type 5

2шт.

28

1250021C1

SHAFT

ASSY, trans brake

1шт.

28032R1

SET SCREW,Hex Soc, 5/8"-11 x 1/2"

SCREW, set

1шт.

29

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

3/32 x 3/16

3шт.

30

142025C1

PIN

1/4 x 3/8 plain chamfer

1шт.

Выбрано товаров: 40
