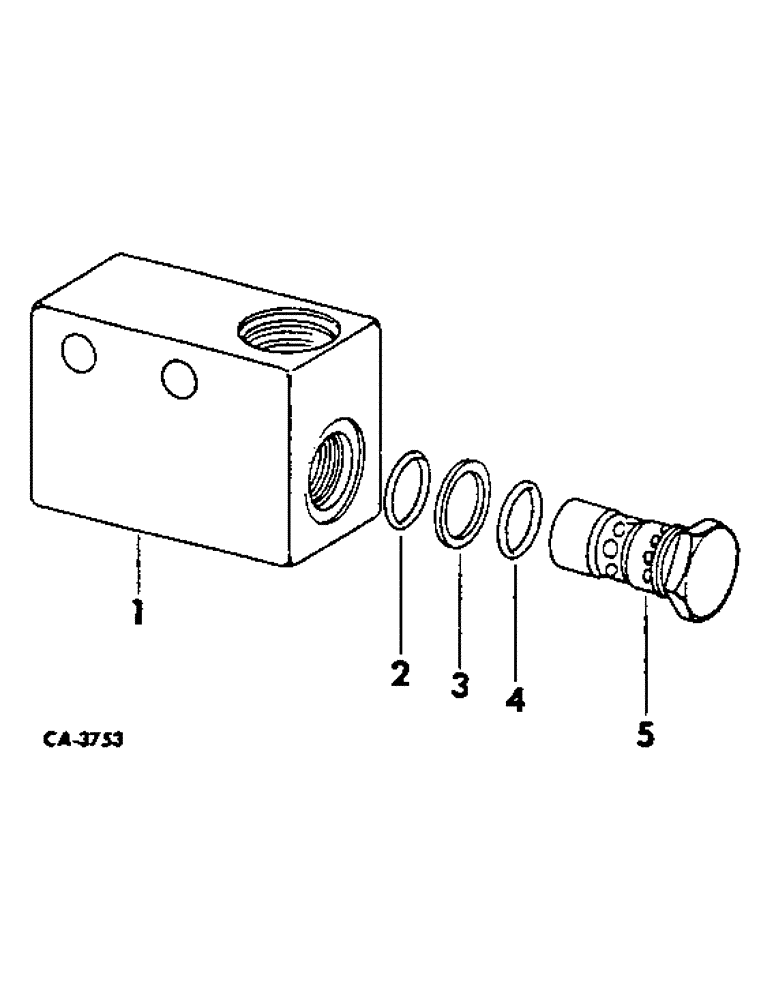

Запчасти Case IH 6788 (10-03) - HYDRAULICS, RELIEF VALVE BLOCK ASSEMBLY (07) - HYDRAULICS

113680C91

BLOCK

RELIEF VALVE BLOCK ASSY, 2500 PSI

1шт.

1

403187R1

BLOCK

RELIEF VALVE ASSY

1шт.

2

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

3

378985R2

BACK-UP RING

back-up

1шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

5

543976R91

VALVE

ASSY, 2500 PSI relief

1шт.
