Запчасти Case IH 6788 (10-01) - HYDRAULICS, HYDRAULIC POWER SUPPLY (07) - HYDRAULICS

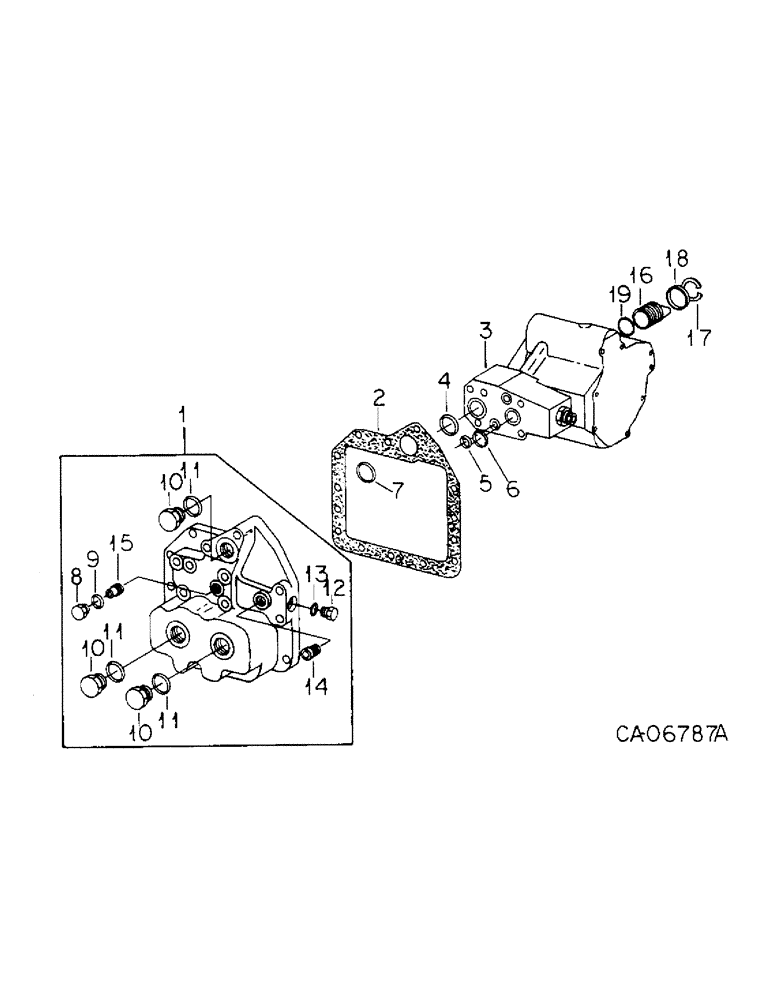

Схема запчастей Case IH 6788 - (10-01) - HYDRAULICS, HYDRAULIC POWER SUPPLY (07) - HYDRAULICS
10
8
15
17
12
18
19
16
7
3
10
6
13
4
10
2
11
14
9
11
5
11
1

Артикул

Название

Примечание

Количество

1

140628C91

FLANGE

ASSY, pump mtg, Includes ref. nos. 8 thru 15

1шт.

1

1263450C92R

REMAN-HYD PUMP

1шт.

1

1263450C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

5шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 type 5

5шт.

565832R1

WASHER

hyd pump mounting bolt

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

382244R4

GASKET

pump mounting flange

1шт.

3

PUMP ASSY, piston, Renewed, Not serviced separately, Order service package, 1263450C91

1шт.

4

25897R1

O-RING,-022, 90 Duro, .989" ID x .070" Thk

1 x 1-1/8 x 1/16, pressure port

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, attenuator port

1шт.

6

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32, signal port

1шт.

7

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame

1шт.

8

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

10

9410361

PLUG

1-1/16-12

5шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

5шт.

12

9410356

PLUG

1/4 C-Z str thd o-ring boss

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

5шт.

14

127886C1

BLEEDER VALVE

VALVE ASSY, signal orifice

1шт.

15

140736C1

FILTER SCREEN

SCREEN ASSY, signal

1шт.

16

128186C2

TUBE,1.25" OD, 2.125" Length

pump suction

1шт.

17

27933R1

SNAP RING,#125, 1.188", Ext Spiral

RING, retaining

1шт.

18

537545R92

SEAL

pump suction tube oil

1шт.

19

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 class 5, pump inlet

1шт.

1263450C91

PACKAGE

PPH pump, Renewed, Consists of

1шт.

*

PUMP ASSY, Renewed (NSS)

1шт.

1263450C91C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263472C91

PACKAGE

seal & gasket, Consists of

1шт.

537545R92

SEAL

pump suction tube

1шт.

382257R2

GASKET

1шт.

*

INSTRUCTIONS (NSS)

1шт.

92933C91

KIT

pump service

1шт.

92932C91

KIT

rataling group

1шт.

92452C91

KIT

control block, see SB # S-5004

1шт.

Выбрано товаров: 38
