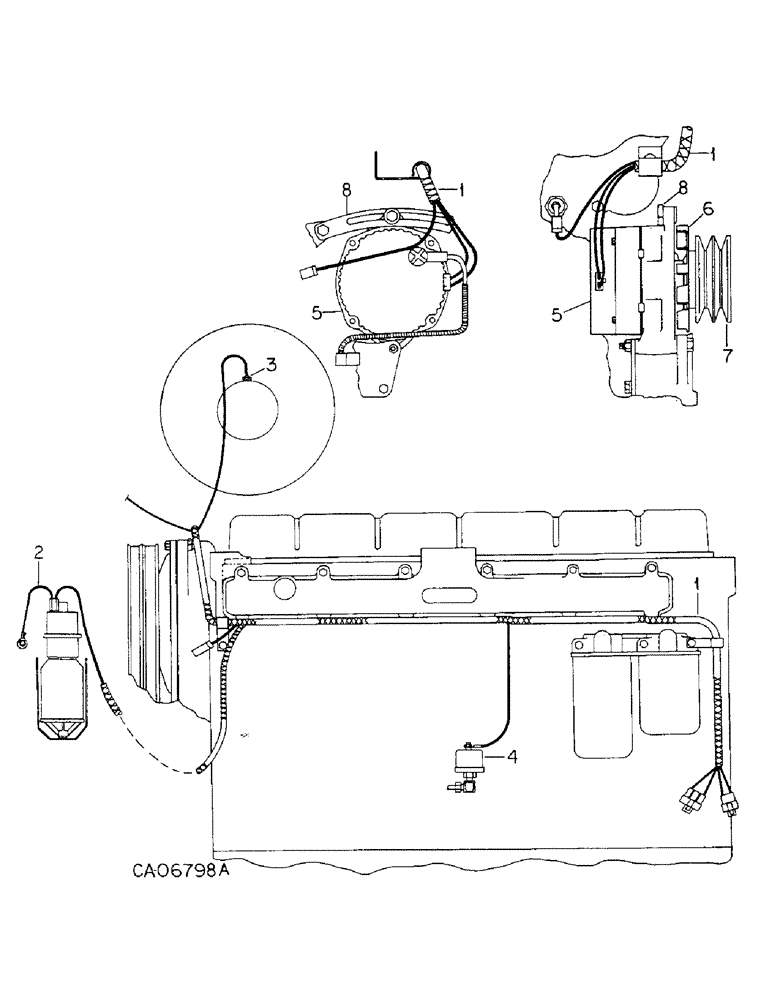

Запчасти Case IH 6588 (08-08) - ELECTRICAL, ENGINE HARNESS AND ALTERNATOR (06) - ELECTRICAL

1

107359C1

HARNESS

ASSY, engine

1шт.

2

NOT REQUIRED THIS APPLICATION

1шт.

3

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, electric air cleaner vacuum

1шт.

4

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

REF# 4 ENGINE OIL PRESSURE SENDER- THE TEE IS P/N 9499939 AND THE ADAPTER IA 443998 PER MARV HOOD, TECH STAFF 7/16/96. JBEDFORD

1шт.

5

1105538

GENERATOR

ALTERNATOR-GENERATOR W/REGULATOR, 105 amp, Replaces 1103184, 72 amp, See alternator-generator this group for list of components

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

5

146472C91

GENERATOR

ALTERNATOR-GENERATOR, 100 amp metric, See alternator-generator this group for list of components

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

6

221425R1

FAN

alternator-generator, w/auxiliary lighting attachment, Used w/72 amp

1шт.

6

1978026

FAN

alternator-generator, used w/100 amp

1шт.

7

384645R1

PULLEY

alternator-generator, used w/72 amp alternator

1шт.

7

131042C1

PULLEY

alternator-generator, Used w/100 & 105 amp alternator, w/auxiliary lighting attachment

1шт.

7

537070R1

PULLEY

alternator-generator, used with air condition, w/o auxiliary lighting attachment

1шт.

8

532418R1

BRACE

alternator-generator, Used w/72 amp alternator

1шт.

8

146489C1

BRACE

alternator-generator, used w/105 amp alternator

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

557265R1

WASHER

.344 x 1.000 x .105 pln

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.
