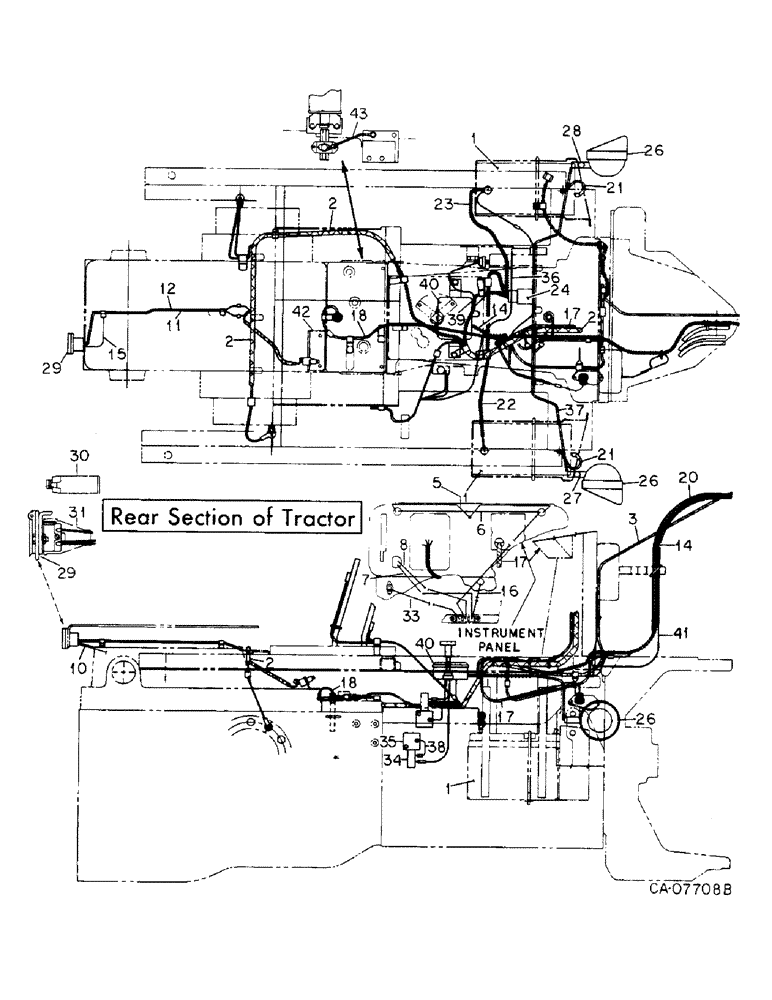

Запчасти Case IH 6588 (08-03) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance-free

2шт.

2

1265497C1

HARNESS

ASSY, main cable, Replaces 1252450C4, 6388, Serial Range: -9072

1шт.

2

1265497C1

HARNESS

ASSY, main cable, Replaces 1252450C4, 6588, Serial Range: -9206

1шт.

2

1265497C1

HARNESS

ASSY, main cable, Replaces 1252450C4, 6788, Serial Range: -8809

1шт.

2

245180C1

HARNESS

ASSY, main cable, 6388, Start Serial: 9073

1шт.

2

245180C1

HARNESS

ASSY, main cable, 6588, Start Serial: 9207

1шт.

2

245180C1

HARNESS

ASSY, main cable, 6788, Start Serial: 8810

1шт.

131219C1

FUSE

auto type 3 amp, violet

1шт.

399470R1

BOOT

INSULATOR, terminal

2шт.

121597C1

CONNECTOR, ELEC

CONNECTOR, main cable

1шт.

CONDUIT, convoluted, Use on main cable harness, Furnish 7.25 inch from bulk roll marked 2643132R1

1шт.

CONDUIT, convoluted, Use on harness to jct blk cables, Furnish 8.25 inch from bulk roll marked 2643122R1

1шт.

1259731C1

CONDUIT

convoluted, use on dimmer switch cable

1шт.

123548H

GROMMET

neutral switch cables located in firewall

1шт.

104363C1

GROMMET

main cable harness

1шт.

148598C1

GROMMET

cable, LH center on front of cab subframe

1шт.

3

1252452C4

HARNESS

ASSY, front cable, 6388, Serial Range: -9072

1шт.

3

1252452C4

HARNESS

ASSY, front cable, 6588, Serial Range: -9206

1шт.

3

1252452C4

HARNESS

ASSY, front cable, 6788, Serial Range: -8809

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6388, Start Serial: 9073

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6588, Start Serial: 9207

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6788, Start Serial: 8810

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock front harness

20шт.

5

104384C1

CABLE

ASSY, inst-lights to ground, Consists of (1) 9 in. wire and (1) 11.8 in. wire

1шт.

5

1251646C1

CABLE

ASSY, inst-lights to ground, Consists of (2) 10 in. wires

1шт.

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

6

104385C1

CABLE

ASSY, inst-lights to junction block

1шт.

7

120294C1

CABLE

ASSY, light switch to dimmer switch

1шт.

8

120295C1

CABLE

ASSY, dimmer, Serial Range: switch-inst-light

1шт.

10

1252544C1

CABLE

ASSY, tail light to seven pin connector

1шт.

11

64525C1

CABLE

ASSY, RH warning, Serial Range: light-conn.

1шт.

12

64526C1

CABLE

ASSY, LH warning, Serial Range: light-conn.

1шт.

14

131196C92

CABLE

ASSY, alternator

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 131196C91, Used on cranking motor solenoid switch, S terminal

1шт.

15

104388C2

CABLE

ASSY, seven pin, Serial Range: connector-ground

1шт.

16

1252532C1

CABLE

ASSY, key switch, I terminal

1шт.

17

107238C2

HARNESS

ASSY, data center, instrument panel

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

1шт.

18

1252529C3

HARNESS

ASSY, data center, chassis

1шт.

19

1252534C3

HARNESS

ASSY, data center, engine

1шт.

20

107379C1

HARNESS

ASSY, EGT-DCIA

1шт.

21

482256C2

CABLE ASSY.

CABLE ASSY, Serial Range: battery-ground

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

22

1252556C1

CABLE

ASSY, battery RH

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

522639C1

NUT

battery terminal

4шт.

23

1252557C1

CABLE

ASSY, battery LH

1шт.

24

1990322

MOTOR, ELECTRIC

MOTOR ASSY, cranking, Delco-Remy, Replaces 1113489, Refer to cranking motor this group for list of components

1шт.

601924C1

BOLT,3/8"

SCREW, 3/8 x 1.000 pln ast 12pt flg

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy, int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

26

131420C91

INTERIOR LIGHT

LIGHT ASSY, cab lower front, Use w/72 amp alternator, Consists of

2шт.

131348C1

LAMP

ASSY, sealed beam

1шт.

107471C1

RETAINER

shock proof light

1шт.

27

1267358C1

SEAT

SEAL, lamp mtg ball, Replaces 370307R1

2шт.

28

388947R1

RETAINER

lamp, Use w/72 amp alternator

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

29

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, 7 pole flap lock connector

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934310R1

NUT,M8, Cl 8

M8 class 8

2шт.

30

121646C1

TERMINAL CONNECTOR,Female

PLUG, connector 7 contact

1шт.

31

481849C1

PROTECTIVE COVER

COVER, 7 pole socket rubber

1шт.

33

404397R1

CABLE

ASSY, horn switch to junction block

1шт.

34

VALVE ASSY, trans brake solenoid, Refer to differential lock and trans brake valve group 7

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 hdn

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

35

1250148C1

BRACKET

diff lock & trans brake solenoid mtg

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

2шт.

36

1252453C6

HARNESS

ASSY, TA & trans brake

1шт.

37

120158C1

HARNESS

ASSY, center side lighting

1шт.

38

138842C1

CABLE

ASSY, trans brake solenoid to ground & TA, Serial Range: solenoid-ground

1шт.

39

1266473C1

CABLE

ASSY, cranking motor to fuse box junction, 6388, Serial Range: -9072

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

39

1266473C1

CABLE

ASSY, cranking motor to fuse box junction, 6588, Serial Range: -9206

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

39

1266473C1

CABLE

ASSY, cranking motor to fuse box junction, 6788, Serial Range: -8809

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

39

1271001C1

CABLE

ASSY, cranking motor to fuse panel, 6388, Refer to fuse box this group for list of components, Serial Range: -9072

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

39

1271001C1

CABLE

ASSY, cranking motor to fuse panel, 6588, Refer to fuse box this group for list of components, Serial Range: -9206

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

39

1271001C1

CABLE

ASSY, cranking motor to fuse panel, 6788, Refer to fuse box this group for list of components, Serial Range: -8809

1шт.

ref #39 referring to the fuse the fuse number is 1265485c1. 4-30-99 cw

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6MM

2шт.

30281R1

NUT,M6, Cl 10

M6 class 10

2шт.

40

148604C1

PANEL

fuse, 6388 , Refer to fuse panel this group for list of components, Start Serial: 9073

1шт.

40

148604C1

PANEL

fuse, 6588, Refer to fuse panel this group for list of components, Start Serial: 9207

1шт.

40

148604C1

PANEL

fuse, 6788, Refer to fuse panel this group for list of components, Start Serial: 8810

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 hex flange head

16шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

8шт.

41

245822C1

CABLE

articulation ground

1шт.

42

1252834C1

BLOCK

BRACKET, neutral start switch

1шт.

43

245629C1

CABLE

ASSY, fuel pump ground

1шт.

1265436C91

CONTROL

PARTS ACCESSORY, implement electric remote control, Consists of

1шт.

403069R1

CIRCUIT-BREAKER,30A

BREAKER

1шт.

111322C1

CABLE

ASSY

1шт.

INSTRUCTIONS (NSS)

1шт.

1251744C2

CLAMP

CLIP, TA & trans brake harness

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.
