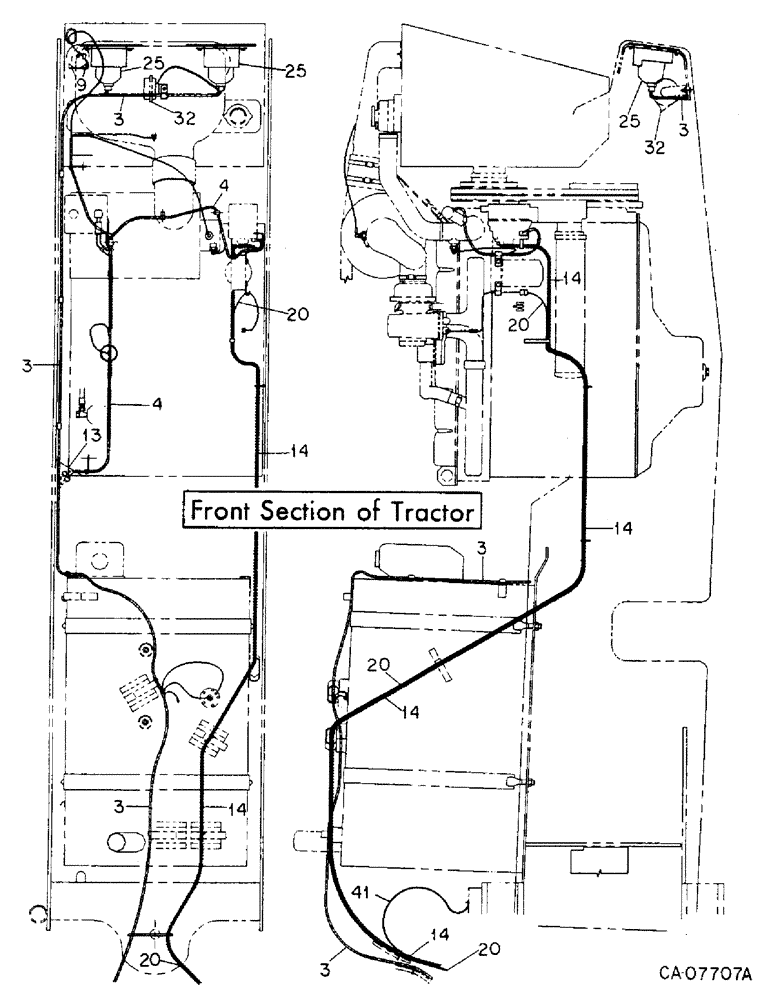

Запчасти Case IH 6588 (08-02) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

3

1252452C4

HARNESS

ASSY, front cable, 6388, Serial Range: -9072

1шт.

3

1252452C4

HARNESS

ASSY, front cable, 6588, Serial Range: -9206

1шт.

3

1252452C4

HARNESS

ASSY, front cable, 6788, Serial Range: -8809

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6388, Start Serial: 9073

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6588, Start Serial: 9207

1шт.

3

1265506C1

HARNESS

ASSY, front cable, 6788, Start Serial: 8810

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock front harness

20шт.

4

107359C1

HARNESS

ASSY, engine

1шт.

30988R1

SCREW,Cross Pan Hd, M4 x 20

M4 x 20MM class 4.8 p/hdcr

4шт.

30227R1

WASHER

4.3 x 9 x .8MM pln

4шт.

933832R1

LOCK WASHER,M4

WASHER, 4MM lock

4шт.

30267R1

NUT,M4, Cl 8

M4 phc class 10

8шт.

9

NOT USED THIS APPLICATION

1шт.

13

132683C2

CABLE

ASSY, engine, Serial Range: grd-chassis

1шт.

14

131196C92

CABLE

ASSY, alternator

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 131196C91, Used on cranking motor solenoid switch, S terminal

1шт.

19

1252534C3

HARNESS

ASSY, data center, engine

1шт.

20

107379C1

HARNESS

ASSY, EGT-DCIA

1шт.

25

146512C91

INTERIOR LIGHT

LIGHT ASSY, rectangular head, Only serviceable item is

2шт.

131423C1

LAMP

ASSY, sealed beam unit

1шт.

27118R1

SCREW, no. 10 x 1 phc o/hdcr mach

4шт.

157190

SCREEN

SCREW, no. 10 x 1-1/2 phc o/hdcr mach

4шт.

32

9000239

HORN

ASSY

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

41

245822C1

CABLE

articulation ground

1шт.

1265436C91

CONTROL

PARTS ACCESSORY, implement electric remote control, Consists of

1шт.

403069R1

CIRCUIT-BREAKER,30A

BREAKER

1шт.

111322C1

CABLE

ASSY

1шт.

INSTRUCTIONS (NSS)

1шт.

1251744C2

CLAMP

CLIP, TA & trans brake harness

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

1шт.
