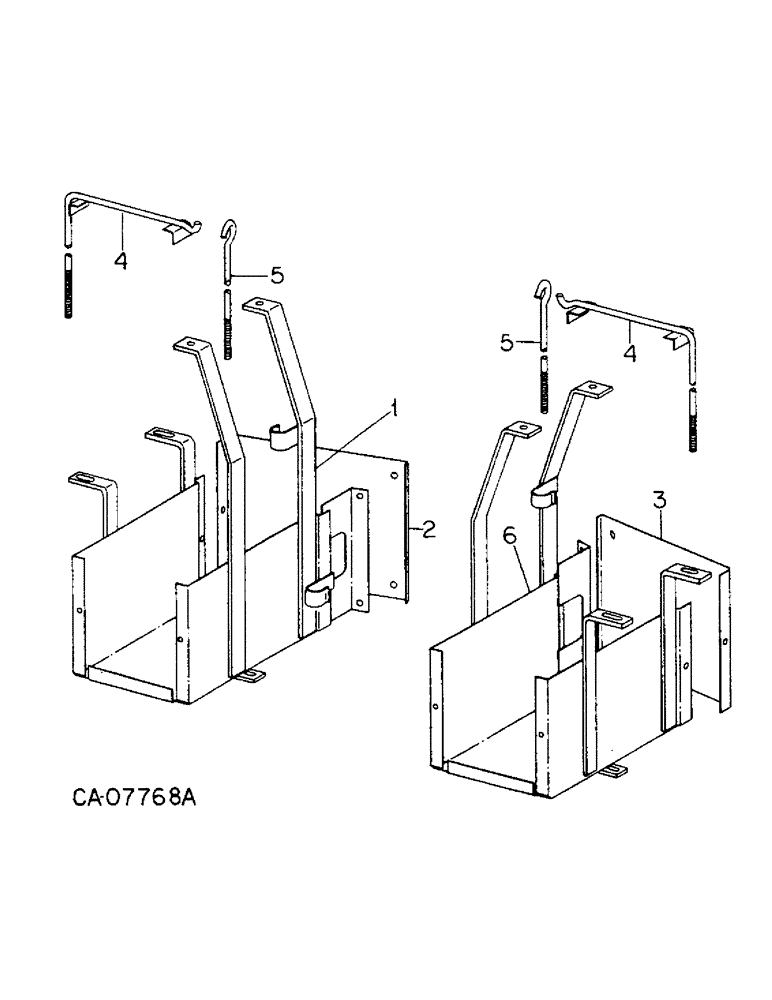

Запчасти Case IH 6588 (08-01) - ELECTRICAL, BATTERY BOX AND MOUNTING (06) - ELECTRICAL

1

1262094C1

BOX

ASSY, battery LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

104329C1

NUT

1/4-20 speed

3шт.

599576R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 pln crg type 5

2шт.

2

103935C1

SUPPORT

battery box front

1шт.

1250591C1

CAPTIVE WASHER SCREW

SCREW, hex washer-hd cap

3шт.

3

103935C1

SUPPORT

battery box front

1шт.

1250591C1

CAPTIVE WASHER SCREW

SCREW, hex washer-hd cap

6шт.

4

1255736C2

BRACKET

ASSY, battery hold down

2шт.

7500032

BUSHING

NUT, 5/16 wing

2шт.

5

1255734C2

BOLT,5/16" - 18 x 242mm

BOLT, battery hold down

2шт.

142745

NUT, WING

NUT, 5/16 wing

2шт.

6

1262102C91

BOX

ASSY, battery RH w/product graphic

1шт.

120391C1

DECAL

PRODUCT GRAPHIC, caution instructions

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flanged lock

2шт.

104329C1

NUT

1/4-20 speed

3шт.

599576R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 pln crg type 5

2шт.
