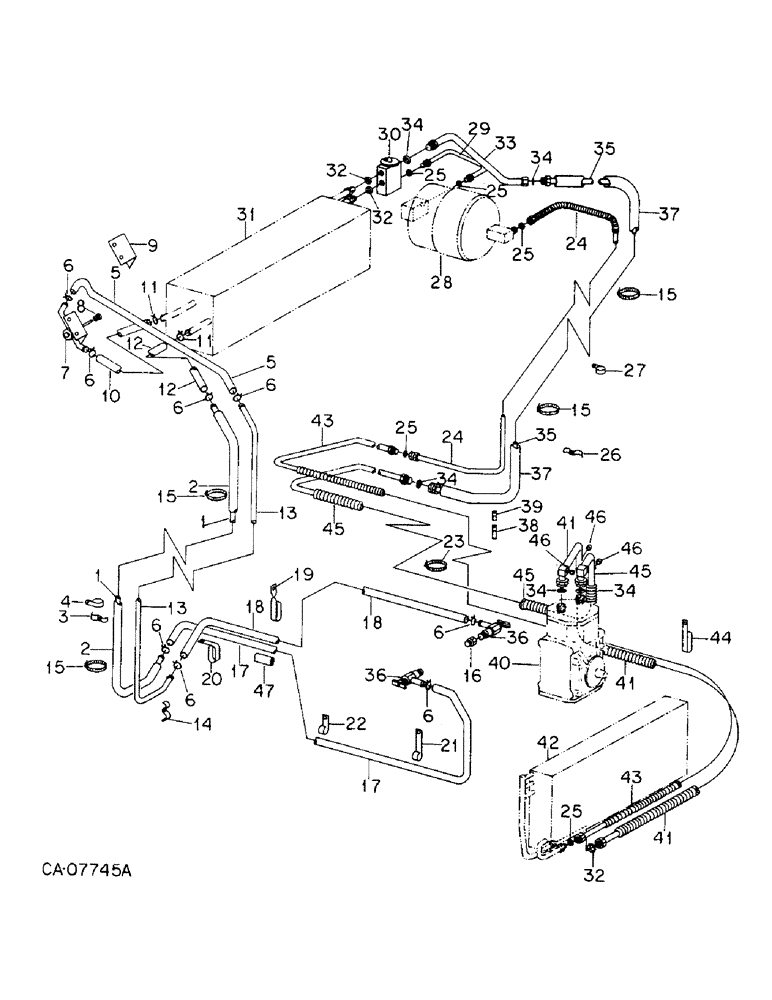

Запчасти Case IH 6588 (13-29) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONING CONNECTIONS (05) - SUPERSTRUCTURE

1

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

2

143327C1

INSULATOR

INSULATION, heater inlet tube

1шт.

3

143410C1

CLIP

one hole double

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal

2шт.

4

118461C1

COVER

molded rubber tip

1шт.

5

HOSE, valve outlet to outlet tube, Use 23 in. from bulk roll marked 117724C1

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose type F

8шт.

7

111221C4

VALVE

heater control

1шт.

8

111282C1

KNOB

heater control

1шт.

9

109134C1

BRACKET

heater control valve

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 polyseal p/hdcr tap

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 znd reg lock

2шт.

10

HOSE, control valve to heater core, Use 11 in. from bulk roll marked 117724C1

1шт.

11

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose type F

4шт.

12

HOSE, heater inlet tube to core, Use 11 in. from bulk roll marked 117724C1

1шт.

13

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

14

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

111619C1

STRAP

adjustable

5шт.

16

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER, 1/2 to 3/8 pln out/h/hd pipe

1шт.

17

HOSE, heater inlet, Use 158 in. from bulk roll marked 1255859C1

1шт.

18

HOSE, heater outlet, Use 208 in. from bulk roll marked 117724C1

1шт.

19

1250507C1

CLIP

twisted double hose

2шт.

20

1250508C1

CLAMP

CLIP, double hose

2шт.

21

NOT USED THIS APPLICATION

1шт.

22

224971C1

CLAMP

close hose 1.875 dia

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

23

111619C1

STRAP

adjustable

7шт.

24

143114C1

TUBE

ASSY, liquid

1шт.

25

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, 3/8 tube

5шт.

26

143411C1

CLAMP

a/c tubes

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal p/hdcr tap

1шт.

27

118461C1

COVER

molded rubber tip

1шт.

28

143469C2

RESERVOIR

RECEIVER-DRYER, Refer to heating and air conditioning this group

1шт.

29

1250438C1

TUBE ASSY.

TUBE ASSY, receiver-dryer

1шт.

30

118321C1

VALVE

bulbless expansion, 1-1/2 ton

1шт.

30

118321C1GV

VALVE

bulbless expansion, 1-1/2 ton

1шт.

31

135777C2

CORE

comb, evaporator-heater, Refer to heating and air conditioning core this group

1шт.

32

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

3шт.

33

143267C3

TUBE,0.625" OD, 196 mm Length

ASSY, evaporator discharge

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

2шт.

35

143115C1

TUBE,0.625" OD, 1735 mm Length

ASSY, suction

1шт.

36

301803R91

VALVE

ASSY, heater shut-off

2шт.

37

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

38

1250580C1

CLAMP

1шт.

39

1250581C1

CLAMP

liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

COMPRESSOR, air conditioner, Refer to compressor for list of components, this group

1шт.

41

1250493C4

HOSE

ASSY, compressor discharge

1шт.

42

118316C2

CONDENSER

core

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

127361C2

ROD

HINGE, condenser

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

43

1250492C3

HOSE

ASSY, chassis liquid

1шт.

44

143389C1

CLAMP

refrigerator hose

1шт.

45

1250494C2

HOSE

ASSY, chassis suction

1шт.

46

118188C1

CAP

5шт.

47

392910R1

BUMPER

heater hose

1шт.

1250569C2

CLAMP

CLIP, hose

1шт.

1250570C2

CLAMP

CLIP, hose

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

933965R1

LOCK WASHER,M10

2шт.

1255739C1

CLAMP

CLIP, double hose

1шт.

19351R1

GROMMET,1" ID x 1 5/8" x .125", Diag Cut

1 x 1-3/4 x 7/16 d/c rub

1шт.

1262082C1

CLAMP

CLIP, double hose

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.
