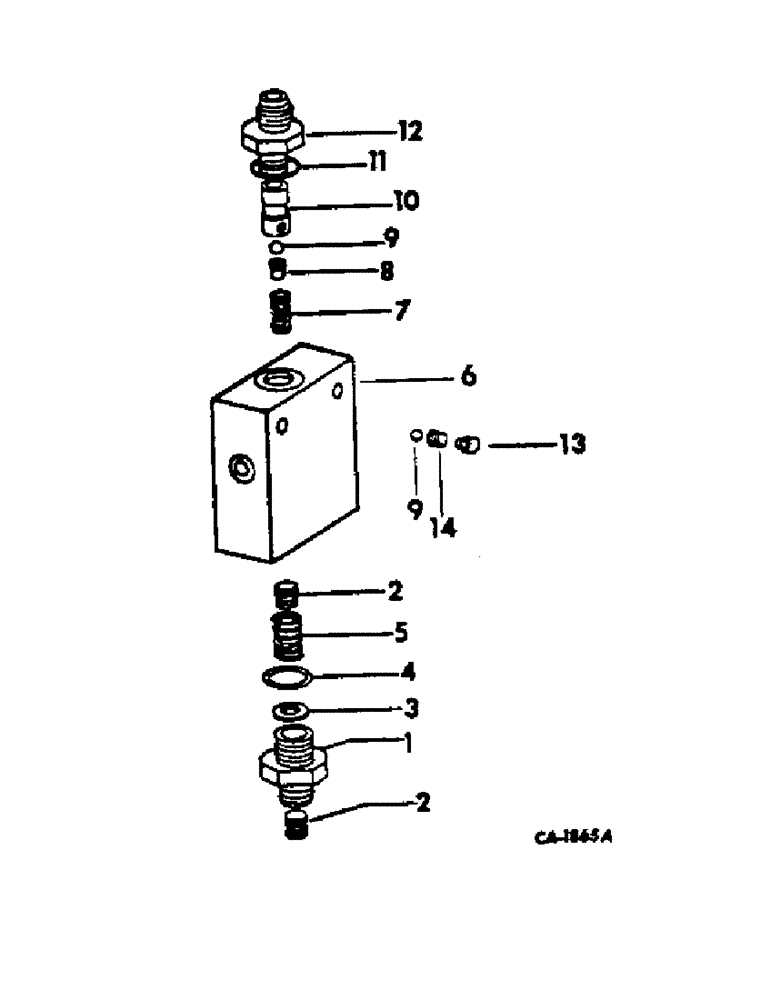

Запчасти Case IH 6588 (07-31) - DRIVE TRAIN, PRESSURE REDUCING VALVE, TRACTOR WITH DIFFERENTIAL LOCK (04) - Drive Train

133605C91

VALVE

ASSY, pressure reducing

1шт.

1

534757R2

FITTING

spring retainer

1шт.

2

SCREW, valve adjusting, Not serviced separately

2шт.

3

Q102

WASHER

13/64 x 1/2 x 18 ga

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

5

SPRING, pressure reducing valve, Not serviced separately

1шт.

6

BODY, pressure reducing, Not serviced separately

1шт.

7

SPRING, relief valve, Not serviced separately

1шт.

8

GUIDE, relief valve spring, Not serviced separately

1шт.

9

BALL, 7/32 cr-stl, Not serviced separately

2шт.

10

SPOOL, valve, Not serviced separately

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve spool

1шт.

12

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 7/16-20 C-Z 37 deg hyd flared tube to 9/16-18 str thd o-ring boss short reducer

1шт.

13

PLUG, ball check, Not serviced separately

1шт.

14

SPRING, ball check, Not serviced separately

1шт.
