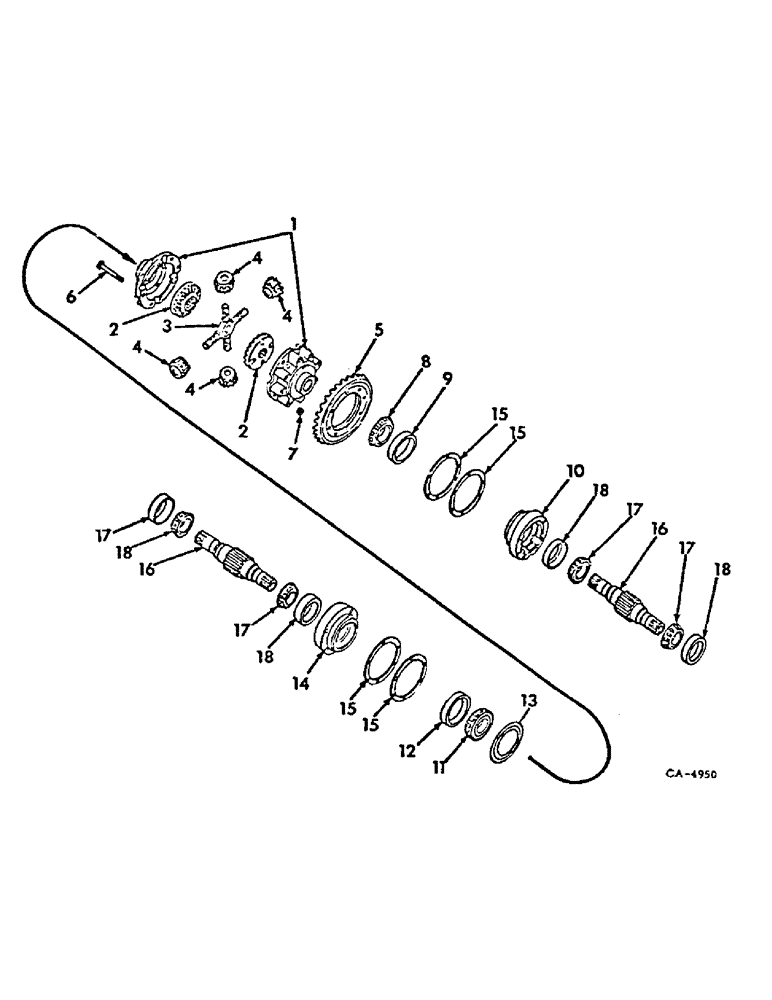

Запчасти Case IH 6588 (07-06) - DRIVE TRAIN, DIFFERENTIAL, 6388 AND 6588 TRACTORS (04) - Drive Train

1

380187R92

CASE

ASSY, differential

1шт.

2

380190R2

GEAR

differential, 28T

2шт.

3

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

4

361061R3

PINION

DIFFERENTIAL, 15T

4шт.

5

BEVEL GEAR, Not serviced separately, Order package 120265C91

1шт.

6

55972DA

BOLT,1/2" - 20 x 4 1/2"

diff case

12шт.

7

381368R1

NUT,Hex, 1/2" - 20, Gr 8

case bolt

12шт.

8

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

diff RH cone

1шт.

9

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, diff RH cup

1шт.

10

68686C1

RETAINER

diff bearing RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

11

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

diff LH cone

1шт.

12

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, diff LH cup

1шт.

13

68672C1

BAFFLE

LH diff brg oil

1шт.

14

68687C1

RETAINER

differntial brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

15

380202R1

SHIM

diff brg retainer, .007 (As required)

2-4шт.

15

380203R1

SHIM

diff brg retainer, .012 (Or as required)

4шт.

15

380204R1

SHIM

diff brg retainer, .030

1шт.

15

380205R1

SHIM

diff brg retainer, .004

1шт.

15

385155R1

SHIM

diff brg retainer, .003

1шт.

16

104660C1

SHAFT

bull pinion & brake

2шт.

17

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion and brake

4шт.

18

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft

4шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, Consists of

1шт.

SHAFT, 13T (NSS)

1шт.

BEVEL GEAR, 51T (NSS)

1шт.

380283R2

SHIM

1шт.

380284R2

SHIM

2шт.

135770C2

RETAINER

2шт.

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

1шт.

359082R2

NUT

1шт.

INSTRUCTIONS (NSS)

1шт.
