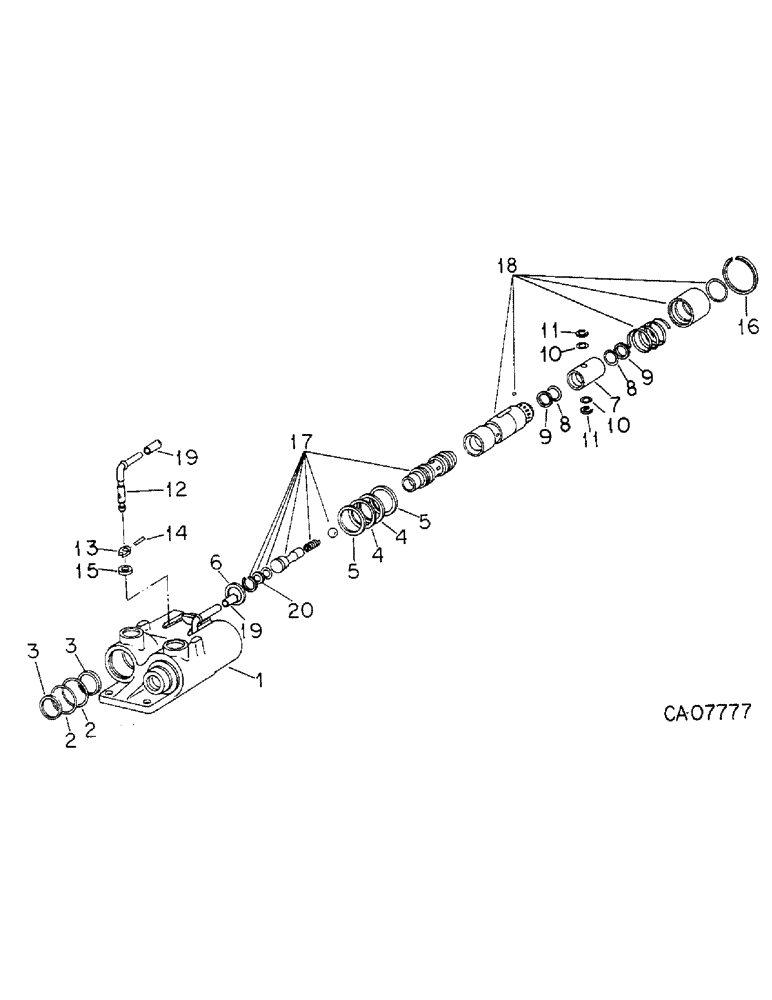

Запчасти Case IH 6588 (10-39) - HYDRAULICS, FEMALE COUPLER, IH (07) - HYDRAULICS

544786R95

COUPLING, BREAK AWAY

COUPLING ASSY, female

1шт.

1

544788R2

BODY

coupler

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

2шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/6 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body outer

2шт.

7

76931C1

SLEEVE

female body small

2шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/8 x 1/2 x 1/16

4шт.

9

544799R1

WASHER

back-up

4шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

1шт.

11

76932C1

WASHER

o-ring back-up

1шт.

12

142371C1

HANDLE

ASSY, valve

2шт.

13

544804R1

CAM

check valve

2шт.

14

544805R1

PIN

cam retainer

2шт.

15

76935C1

SPACER

cam shaft

2шт.

16

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

17

549158R1

VALVE

ASSY, check

2шт.

18

549159R2

SLEEVE

ASSY, female body

2шт.

19

139346C1

SLEEVE

valve handle, black, motor control valve coupler

2шт.

19

139347C1

SLEEVE

valve handle, yellow, second aux control valve coupler

2шт.

19

139348C1

SLEEVE

valve handle, blue, third aux control valve coupler

2шт.

19

139349C1

SLEEVE

valve handle, tan, fourth aux control valve coupler

2шт.

20

544795R1

WASHER

back-up

1шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

4шт.

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

544789R2

SEAL

4шт.

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

4шт.

76932C1

WASHER

2шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

544799R1

WASHER

4шт.

544800R1

WASHER

4шт.

399921C1

RING

2шт.

76936C91

PACKAGE

female coupling handle, Consists of

1шт.

142371C1

HANDLE

valve

1шт.

76931C1

SLEEVE

female coupling body, small

1шт.

76935C1

SPACER

cam check valve shaft

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

1шт.

76932C1

WASHER

o-ring backup

1шт.
