Запчасти Case IH 6588 (08-23) - ELECTRICAL, RADIO EQUIPMENT, AM, FM AND TAPE PLAYERS (06) - ELECTRICAL

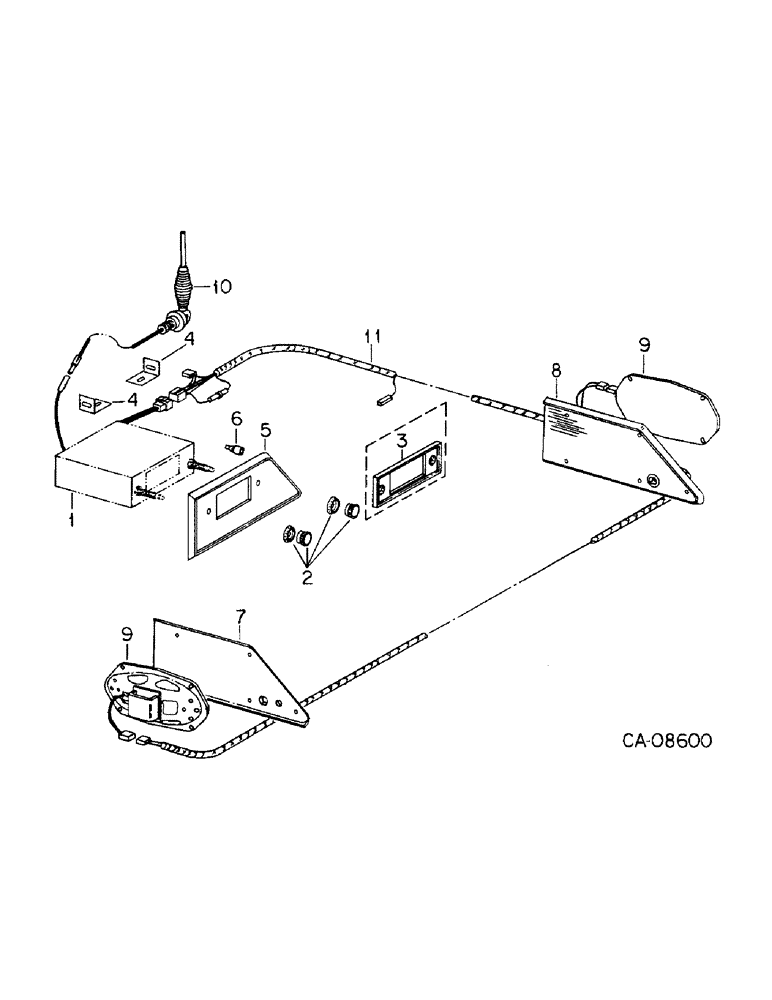

Схема запчастей Case IH 6588 - (08-23) - ELECTRICAL, RADIO EQUIPMENT, AM, FM AND TAPE PLAYERS (06) - ELECTRICAL
5
11
8
10
9
2
9
3
4
4
7
6

Артикул

Название

Примечание

Количество

111640C92

RADIO

PARTS ACCESSORY, AM radio w/fader control, Consists of radios, 111643C1 or 111644C1, Ref. nos. 2 thru 12 & instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, AM/FM monaural radio w/fader control, Consists of radios, 111645C1 or 111646C1, Ref. nos. 2 thru 12 & instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, AM/FM multiplex radio w/8 track tape player, Consists of radio, 111647C1, Ref. nos. 2 thru 12 & instructions

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo radio, Consists of radio, 146560C1, Ref. nos. 2 thru 12 & instructions

1шт.

146559C91

PACKAGE

PARTS ACCESSORY, AM/FM stereo push button radio w/cassette tape player, Consists of radio, 111648C1, Ref. nos. 2 thru 12 & instructions

1шт.

1

111643C1

RADIO

AM w/fader, Boman, or

1шт.

1

111644C1

RADIO, AM w/fader, Motorola

1шт.

1

111645C1

RADIO

AM/FM monaural, Boman, or

1шт.

1

111646C1

RADIO, AM/FM monaural, Motorola

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape, Boman

1шт.

1

111648C1

RADIO

AM/FM stereo cassette, push-button, Boman

1шт.

1

146560C1

RADIO

AM/FM stereo push-button, Boman

1шт.

142919C1

NUT

large shaft

2шт.

For use with Bowman radios.

1шт.

142920C1

WASHER

shaft

2шт.

For use with Bowman radios.

1шт.

142921C1

NUT

small shaft

2шт.

For use with Bowman radios.

1шт.

25056R1

WASHER

shaft

2шт.

328505C1

NUT

mounting

2шт.

For use with Motorola radios.

1шт.

2

117993C1

PACKAGE

KIT, radio control knobs

1шт.

2

385531C1

KNOB

tone & balance

2шт.

3

117992C1

PLATE

trim

1шт.

4

117818C1

ANGLE

radio mounting

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

4

143124C1

ANGLE

radio mounting, For use w/factory installed radio, 111648C1, on burgundy & western cabs

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

143059C1

NUT

1/2-20 tamper resistant

1шт.

5

118376C1

PANEL

radio trim

1шт.

For use with Bowman radios.

1шт.

5

142955C1

PANEL

radio

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

6

117995C1

PACKAGE

KIT, trim panel fastener, Consists of 5 fasteners

3шт.

7

111402C2

PANEL

speaker trim LH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic 5/8 hole

1шт.

8

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

9

142956C1

SPEAKER

4 x 8 4 OHM

2шт.

10

111237C1

ANTENNA

ASSY

1шт.

169850C1

CLIP

self adhesive

1шт.

11

143177C1

HARNESS

ASSY, radio and speaker

1шт.

445635

FUSE,3 Amp, Type 1AG

AGA 3 amperes 5/8 long

1шт.

Выбрано товаров: 49
