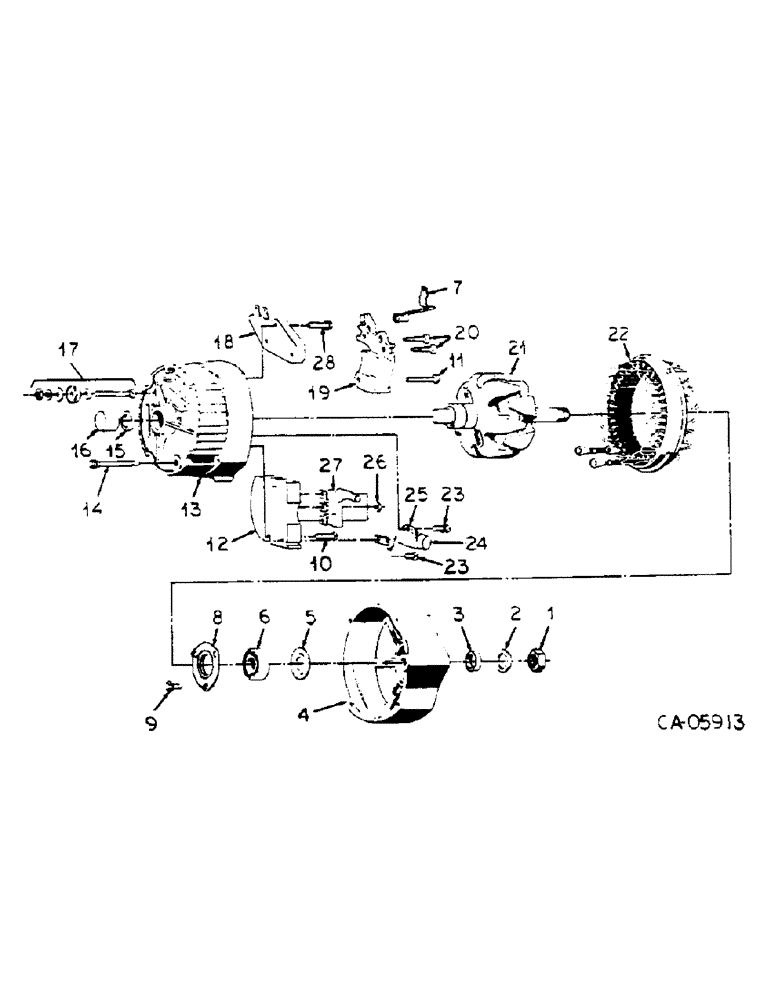

Запчасти Case IH 6588 (08-18) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR, 105 AMP (06) - ELECTRICAL

1105538

GENERATOR

ALTERNATOR-GENERATOR, 105 amps

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103808A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1191172

NUT, drive shaft end

1шт.

2

1941978

WASHER

drive end shaft lock

1шт.

3

1978940

COLLAR

shaft outside drive end

1шт.

4

1975331

FUNNEL

FRAME, drive end

1шт.

5

1975350

COLLAR

shaft inside drive end

1шт.

6

1974861

BALL BEARING

BEARING, drive end

1шт.

7

1979726

TERMINAL CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

bearing retainer

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

plate attaching

3шт.

10

1876668

SCREW

rectifier support

1шт.

11

1979727

SCREW

brush holder pivot

1шт.

12

1979721

SUPPORT

BRIDGE ASSY, rectifier

1шт.

13

1979719

PACKAGE

FRAME, slip ring end

1шт.

14

1956975

BOLT

BOLT, frame attaching

4шт.

15

NOT USED THIS APPLICATION

1шт.

16

1974862

BUSHING

BEARING, slip ring end roller

1шт.

17

1975471

PACKAGE

battery output terminal

1шт.

18

585624C1

REGULATOR

voltage, Replaces 1116387

1шт.

19

1979724

HOLDER

ASSY, brush & brush

1шт.

20

1876681

SCREW

ASSY, brush holder insulated

2шт.

21

1975333

ROTOR

ASSY

1шт.

22

1979722

STATOR

ASSY

1шт.

23

1851612

SCREW

W/LOCKWASHER, capacitor brkt

2шт.

24

1978146

CAPACITOR

CAPACITY ASSY W/BRACKET

1шт.

25

BRACKET, Order capacitor, 1978146

1шт.

26

120622

NUT,#8-32

3шт.

27

1975328

RECTIFIER

diode trio

1шт.

28

1894586

SCREW

ASSY, reg attaching ground

1шт.

1894586

SCREW

ASSY, brush holder ground

1шт.
