Запчасти Case IH 6588 (08-17) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR, 72 AMP (06) - ELECTRICAL

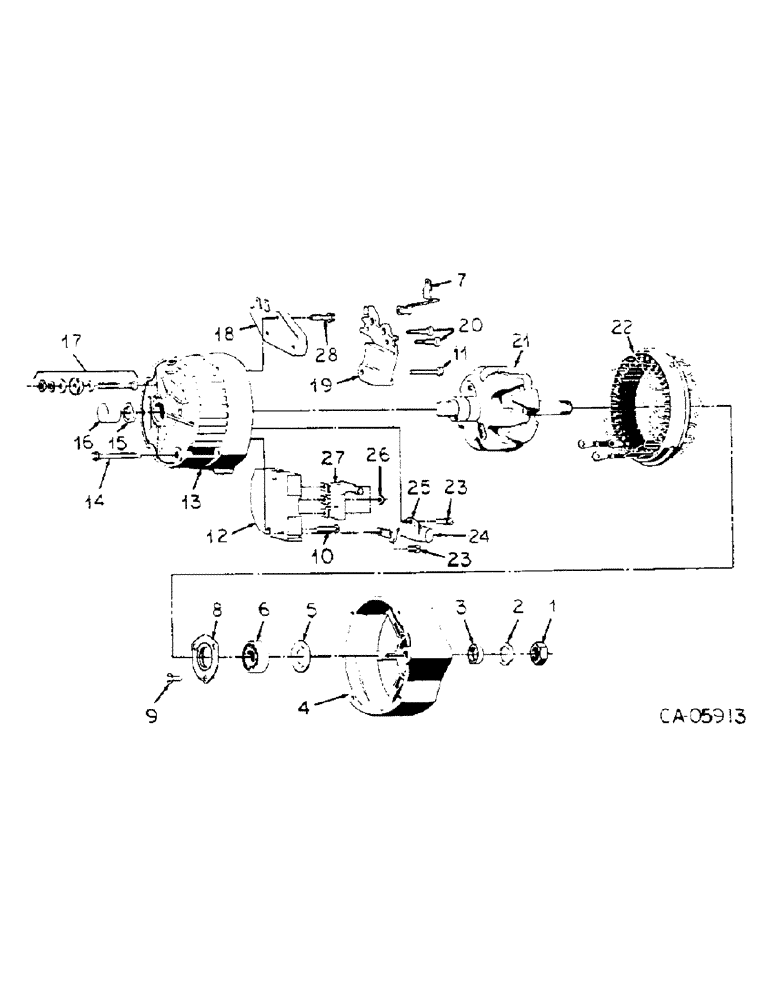

Схема запчастей Case IH 6588 - (08-17) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR, 72 AMP (06) - ELECTRICAL
4
15
7
6
10
12
23
26
1
19
8
23
5
21
16
2
25
18
17
3
13
11
22
27
14
28
20
9
24

Артикул

Название

Примечание

Количество

1103184

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 72 ampere, Metric model, Order 1105538

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator (Higher Amp Version of 72 Amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

87297246

REMAN-ALTERNATOR

Reman for New PN 1103184

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 65 Amp Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 65 Amp Alternator

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 63 Ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN 1103184

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 100 Amp Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103808A1GV

ALTERNATOR

Value, 12V, 105A

1шт.

103808A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103808A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1915172

NUT

NUT, drive shaft end

1шт.

2

1941978

WASHER

WASHER, drive end shaft lock

1шт.

3

1959991

COLLAR

COLLAR, drive end shaft, outside, 7/8 OD, Used w/frame 1970525

1шт.

4

1976808

FRAME

PACKAGE, drive end frame, Consists of

1шт.

FRAME (NSS)

1шт.

BOLT (NSS)

1шт.

SLEEVE (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.

5

*

NOT USED THIS APPLICATION

1шт.

6

1974861

BALL BEARING

BEARING, drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, bearing retainer plate attaching

3шт.

10

1876668

SCREW

SCREW, rectifier support

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

1891055

SUPPORT

SUPPORT, rectifier

1шт.

13

1975718

FRAME

PACKAGE, slip ring end frame, Consists of

1шт.

13

FRAME (NSS)

1шт.

13

BOLT (NSS)

1шт.

13

BEARING (NSS)

1шт.

13

INSTRUCTIONS (NSS)

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

NOT USED THIS APPLICATION

1шт.

16

1974862

BUSHING

BEARING, slip ring end roller

1шт.

17

1975471

PACKAGE

PACKAGE, battery output terminal

1шт.

18

585624C1

REGULATOR

REGULATOR, voltage, Replaces 1116387

1шт.

19

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY

1шт.

22

1851572

STATOR

STATOR ASSY, 72 ampere

1шт.

23

1851612

SCREW

SCREW W/LOCKWASHER, capacitor brkt

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY

1шт.

25

1869573

BRACKET

BRACKET, capacitor mtg

1шт.

26

120622

NUT,#8-32

NUT, #8-32

3шт.

27

1971528

RECTIFIER

RECTIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, reg attaching ground

1шт.

Выбрано товаров: 68
