Запчасти Case IH 6388 (08-12) - ELECTRICAL, SWITCHES, FUSES AND JUNCTION BOX (06) - ELECTRICAL

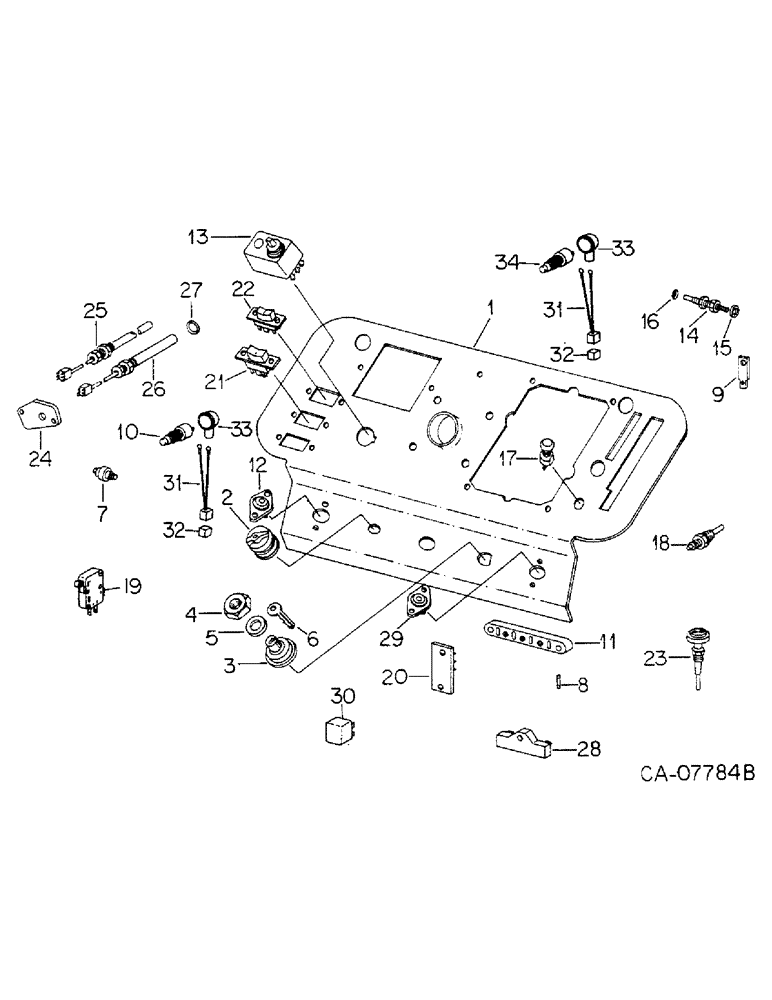

Схема запчастей Case IH 6388 - (08-12) - ELECTRICAL, SWITCHES, FUSES AND JUNCTION BOX (06) - ELECTRICAL
30
25
12
7
5
10
22
3
31
11
33
29
26
18
1
14
15
24
16
6
27
34
33
9
2
8
21
20
13
32
4
17
19
31
32
28
23

Артикул

Название

Примечание

Количество

1

PANEL, instrument, Refer to Figure 11-01

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

3

1252476C1

SWITCH

ASSY, key start

1шт.

4

365502R1

NUT

switch mounting

2шт.

5

375431R1

LOCK WASHER

switch mounting

1шт.

6

131313C1

KEY, IGNITION

switch

1шт.

7

376855R92

SWITCH

transmission oil pressure

1шт.

8

571691C1

FUSE

autofuse 30 amp, light green, headlights

1шт.

8

509080C1

FUSE,Lt Blue, 15 Amp

autofuse 15 amp, light blue, warning lights

2шт.

8

131220C1

FUSE

autofuse 5 amp, tan, gage cluster

1шт.

8

571691C1

FUSE

autofuse 30 amp, light green, cab power

1шт.

8

131219C1

FUSE

autofuse 3 amp, violet, digital data tach

1шт.

8

131222C1

FUSE

auto type ATC, red, TA & diff lock solenoids

1шт.

8

131219C1

FUSE

auto type 3 amp, violet, aux fuel tank pump

1шт.

9

384396R1

SPADE TERMINAL,Male

TERMINAL, oil & coolant switches, str

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6388, Serial Range: -9072

2шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6588, Serial Range: -9206

2шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6788, Serial Range: -8909

2шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6388, Start Serial: 9073

2шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6588, Start Serial: 9207

2шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, 6788, Start Serial: 8910

2шт.

10

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start and trans brake, clutch actuated, tractors updated with package, 245196C91

2шт.

11

107355C1

BLOCK

ASSY, junction

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

4шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

5шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

12

397940R93

SWITCH

ether solenoid push button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10NF x 1/2 polyseal p/hdcr mach

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

13

131209C91

SWITCH

FLASHER ASSY, comb & turn signal

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware

1шт.

14

130979C1

SWITCH

brake warning

2шт.

15

121814C1

RETAINER

switch boot

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

16

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, For brake warning switch

2шт.

17

121705C91

SWITCH

ASSY, inst light dimmer, Consists of

1шт.

146566C1

KNOB

1шт.

109311H

JAM NUT

1шт.

18

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

19

134437C1

SWITCH

ASSY, trans brake range lever actuated

1шт.

ref #19 (P/N 9416674) - Procure locally 4-40 x 1" Hex head machine screw

1шт.

9416674

SCREW, no. 4 x 1 znp h/hds mach

2шт.

134524

SHAFT

no. 4 mach screw type 1

2шт.

1967604C1

OIL SEAL

.156 x .375 x .036 phc

1шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

20

130977C1

RECTIFIER

ASSY, indicator light

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

21

131319C1

SWITCH

ASSY, rocker lower & rear lights

2шт.

22

131320C1

SWITCH

ASSY, rocker headlight

1шт.

22

195605C1

SWITCH

ASSY, rocker aux lighting

1шт.

1276080C1

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW, no. 6 x 3/8 polyseal p/hdcr mach

8шт.

23

146599C3

TEMPERATURE SENDER

GAGE, EGT-RTD temperature sensor

1шт.

24

121786C2

COVER

RPM transducer mtg

1шт.

25

1252496C2

GAUGE

TRANSMITTER, MPH transducer

1шт.

26

1252495C1

TRANSMITTER

RPM transducer

1шт.

27

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

28

107558C1

RESISTOR

25 OHM

1шт.

930693R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

M6 x 30 pln class 8.8

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 x 12.5 x 1.6MM pln

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

1шт.

29

397940R93

SWITCH

ASSY, horn button

1шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10NF x 1/2 polyseal p/hdcr mach

1шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

2шт.

30

146461C1

RELAY

rear fender light cutout, or

1шт.

30

3221235R2

RELAY

rear fender light cutout

1шт.

31

245184C1

CABLE

ASSY, switch, 6388, Start Serial: 9073

3шт.

31

245184C1

CABLE

ASSY, switch, 6588, Start Serial: 9207

3шт.

31

245184C1

CABLE

ASSY, switch, 6788, Start Serial: 8910

3шт.

31

245184C1

CABLE

ASSY, switch, tractors updated with package, 245196C91

3шт.

32

561884C1

CONNECTOR, ELEC

CONNECTOR, 2 wire, 6388, Start Serial: 9073

6шт.

32

561884C1

CONNECTOR, ELEC

CONNECTOR, 2 wire, 6588, Start Serial: 9207

6шт.

32

561884C1

CONNECTOR, ELEC

CONNECTOR, 2 wire, 6788, Start Serial: 8910

6шт.

32

561884C1

CONNECTOR, ELEC

CONNECTOR, 2 wire, tractors updated with package, 245196C91

6шт.

33

364910R1

BOOT

INSULATOR, terminal, 6388, Start Serial: 9073

3шт.

33

364910R1

BOOT

INSULATOR, terminal, 6588, Start Serial: 9207

3шт.

33

364910R1

BOOT

INSULATOR, terminal, 6788, Start Serial: 8910

3шт.

33

364910R1

BOOT

INSULATOR, terminal, tractors udpated with package, 245196C91

3шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6388, Serial Range: -9072

1шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6588, Serial Range: -9206

1шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6788, Serial Range: -8909

1шт.

Replaces 121629C2 by ordering package, 245196C91.

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6388, Start Serial: 9073

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6588, Start Serial: 9207

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, 6788, Start Serial: 8910

1шт.

34

739675C2

IGNITION SWITCH

SWITCH ASSY, neutral start, park lock actuated, tractors updated with package, 245196C91

1шт.

245196C91

IGNITION SWITCH

PACKAGE, neutral start switch service, 6388, Consists of, Serial Range: -9072

1шт.

245196C91

IGNITION SWITCH

PACKAGE, neutral start switch service, 6588, Consists of, Serial Range: -9206

1шт.

245196C91

IGNITION SWITCH

PACKAGE, neutral start switch service, 6788, Consists of, Serial Range: -8909

1шт.

INSTRUCTIONS, installing (NSS)

1шт.

561884C1

CONNECTOR, ELEC

CONNECTOR

4шт.

739675C2

IGNITION SWITCH

SWITCH, neutral

2шт.

245184C1

CABLE

neutral start

2шт.

364910R1

BOOT

INSULATOR, terminal

2шт.
