Запчасти Case IH 6388 (08-06) - ELECTRICAL, FUSE BOX, 6388 W/ S/N 9072 & BELOW, 6588 W/ S/N 9206 & BELOW, 6788 W/ S/N 8809 & BELOW (06) - ELECTRICAL

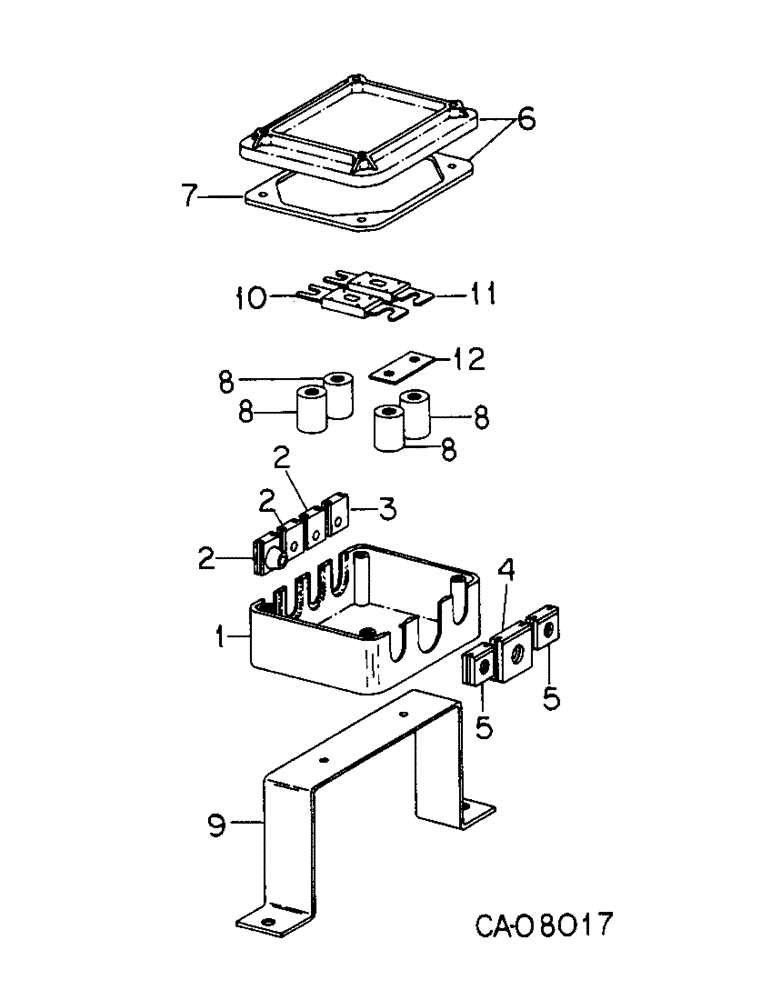

Схема запчастей Case IH 6388 - (08-06) - ELECTRICAL, FUSE BOX, 6388 W/ S/N 9072 & BELOW, 6588 W/ S/N 9206 & BELOW, 6788 W/ S/N 8809 & BELOW (06) - ELECTRICAL
2
8
4
8
5
10
5
8
3
6
2
2
7
8
11
9
12
1

Артикул

Название

Примечание

Количество

1

1266466C1

BOX

ASSY, fuse junction, Consists of 2, 3, 4 & 5

1шт.

2

1266468C1

BUSHING

cable

3шт.

3

1266469C1

BUSHING

cable

1шт.

4

1266470C1

BUSHING

cable

1шт.

5

1266471C1

BUSHING

cable

2шт.

6

1266488C1

COVER

ASSY, junction box

1шт.

30193R1

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

M6 x 20 phc class 10.9

4шт.

7

1266490C1

GASKET

1шт.

8

1266461C1

PIN

standoff, spacer

4шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

4шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6MM

4шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER, no. 6MM ext tooth lock

4шт.

9

1266460C3

SUPPORT

fuse junction

1шт.

10

1265486C1

FUSE

150 amp

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6MM

2шт.

30481R1

WASHER,M5 x 10 x 1

no. 6MM ext tooth lock

4шт.

11

1265485C1

FUSE

80 amp, Replaces 1265491C1

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6MM

2шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER, no. 6MM ext tooth lock

2шт.

12

1266472C1

STRIP

fuse junction

1шт.

Выбрано товаров: 22
