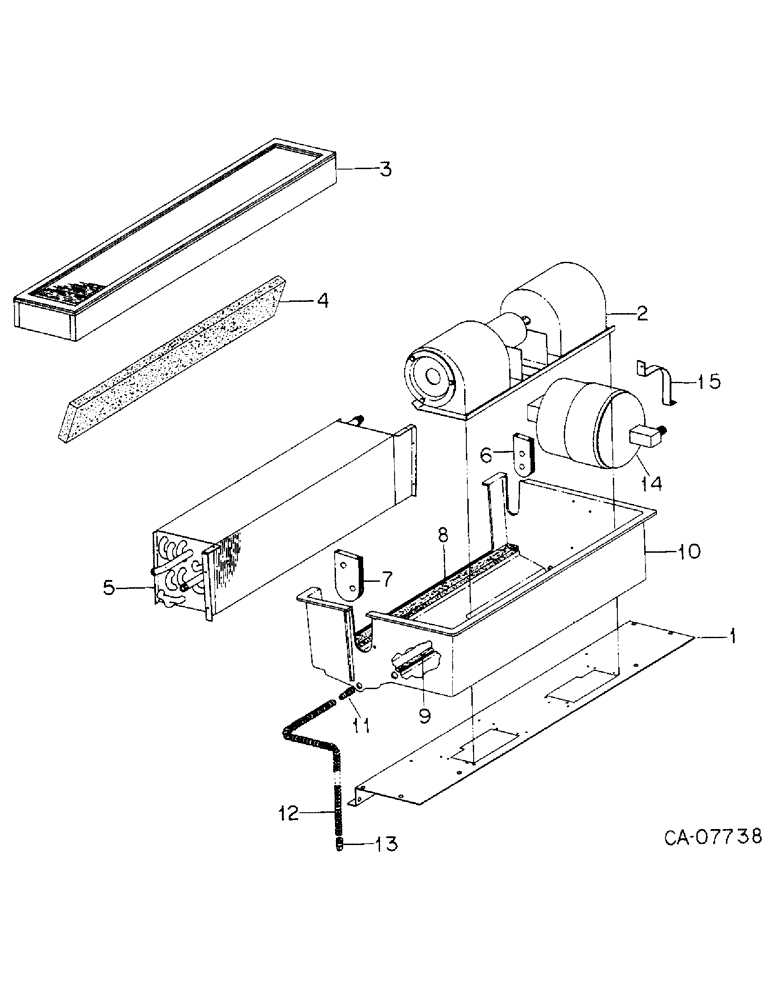

Запчасти Case IH 6388 (13-27) - SUPERSTRUCTURE, HEATING AND AIR CONDITIONING CORE (05) - SUPERSTRUCTURE

1

1262366C1

SUPPORT

blower mounting, Replaces 135778C2

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal p/hdcr tap

4шт.

2

1255878C91

BLOWER ASSY.

BLOWER ASSY, pressurizer, Refer to pressurizer blower this group for list of components

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

8шт.

3

143481C92

CAB FILTER

PACKAGE, cab panel filter

1шт.

3

87543798

CAB FILTER

Charcoal cab filter

1шт.

4

109240C1

CAB FILTER

FILTER, air recirculation

1шт.

5

135777C2

CORE

heater and air conditioning

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 polyseal p/hdcr tap

4шт.

6

1250463C2

GROMMET

rubber evaporator tube

1шт.

7

1250464C2

GROMMET

rubber heat tube

1шт.

8

1250533C2

SEAL

STRIP, evaporator-heater core rear

1шт.

9

1250534C3

SEAL

STRIP, evaporator-heater core

1шт.

10

135776C1

HOUSING

evaporator-heater core

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, no. 10-16 x 3/4 phc p/wh

6шт.

445444

NUT,U, #10-16

10-12 phc U-spr style II

2шт.

1262068C1

GROMMET

rubber blower harness

1шт.

11

1250522C2

FITTING

drain spout

2шт.

12

HOSE, evaporator drain, Use 100 in. from bulk roll marked 198091C1

2шт.

13

109239C2

CHECK VALVE

VALVE, CHECK, Evaporator drain

2шт.

14

143469C2

RESERVOIR

RECEIVER-DRYER

1шт.

15

1250439C1

CLAMP

receiver-dryer

1шт.

118468C1

TAPE

insulation

1шт.
