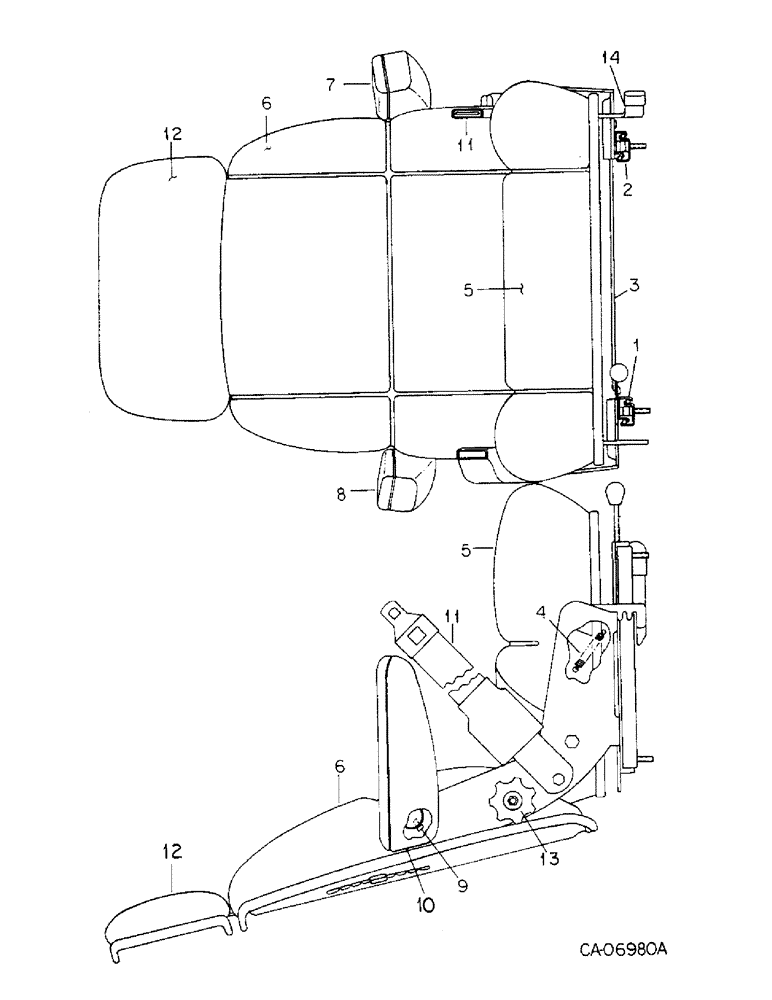

Запчасти Case IH 6388 (13-14) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, SEARS (05) - SUPERSTRUCTURE

1267385C91

SEAT ASSY.

SEAT ASSY, hydraulic, burgundy cab

1шт.

1

1255794C1

SLIDE

ASSY W/HANDLE

1шт.

2

139064C1

SLIDE

ASSY W/O HANDLE

1шт.

3

139066C1

ROD

latch connecting

1шт.

4

64926C1

SPRING

slide adjuster

2шт.

5

143430C1

SEAT

CUSHION, seat, burgundy

1шт.

6

143431C1

SEAT

CUSHION, back, burgundy

1шт.

7

1262346C1

KIT

ARMREST ASSY, RH, burgundy

1шт.

8

143433C1

KIT

ARMREST ASSY, RH, burgundy

1шт.

9

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

3шт.

10

637970C1

PLATE

cover LH

1шт.

27959R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW, no. 10-16 x 1-1/2 phc p/hdcr tap

1шт.

10

139072C1

PLATE

cover RH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 phc p/hdcr tap

1шт.

11

143434C1

BELT

Seat, Burgundy

1шт.

12

143435C1

CUSHION

upper backrest, burgundy, Not furnished as part of seat

1шт.

13

1267543C1

KNOB

ASSY, backrest adj

2шт.

14

1267544C1

LEVER

ASSY, seat tilt

1шт.
