Запчасти Case IH 6388 (13-10) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, SEARS, BURGUNDY (05) - SUPERSTRUCTURE

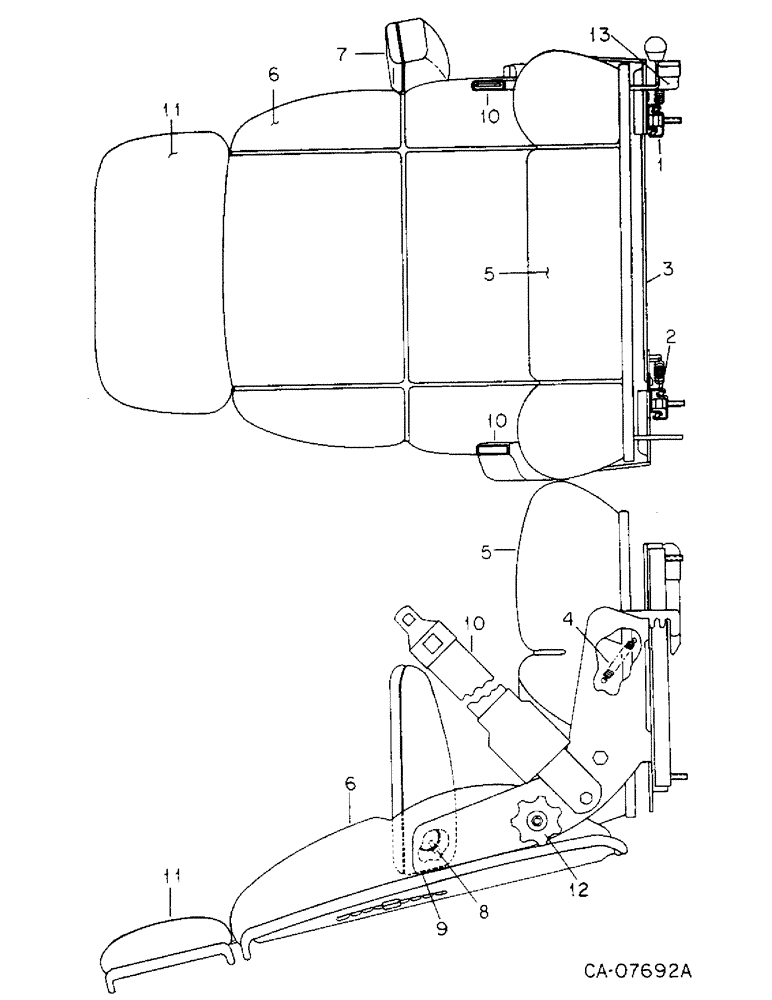

Схема запчастей Case IH 6388 - (13-10) - SUPERSTRUCTURE, SEAT, DELUXE HYDRAULIC, SEARS, BURGUNDY (05) - SUPERSTRUCTURE
1
9
6
13
3
10
6
2
5
5
10
11
11
10
8
7
4
12

Артикул

Название

Примечание

Количество

1250603C92

SEAT ASSY.

SEAT ASSY, burgundy hyd

1шт.

120196C1

SPACER

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

1255794C1

SLIDE

ASSY, w/handle, Replaces 139062C1

1шт.

2

139064C1

SLIDE

ASSY, w/o handle

1шт.

3

139066C1

ROD

latch connecting

1шт.

4

64926C1

SPRING

slide adjuster

2шт.

5

143430C1

SEAT

CUSHION, seat

1шт.

6

143431C1

SEAT

CUSHION, back

1шт.

7

1262346C1

KIT

ARMREST ASSY, LH

1шт.

8

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

2шт.

9

1262347C1

PLATE

cover LH

1шт.

27959R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW, no. 10-16 x 1-1/2 phc p/hdcr tap

1шт.

10

143434C1

BELT

Seat

1шт.

11

143435C1

CUSHION

upper backrest, Not included with seat

1шт.

12

1267543C1

KNOB

ASSY, brackrest adj

2шт.

13

1267544C1

LEVER

ASSY, seat tilt

1шт.

Выбрано товаров: 18
