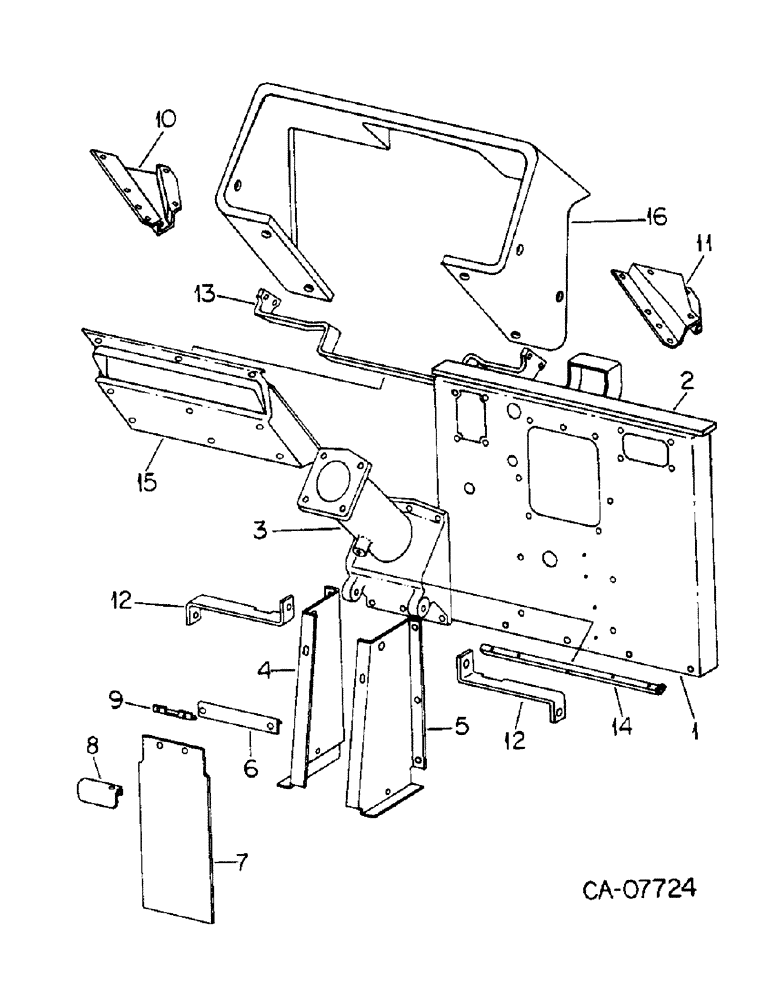

Запчасти Case IH 6388 (13-05) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS (05) - SUPERSTRUCTURE

1

1250215C4

PANEL

ASSY, firewall

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

6шт.

20285H

WASHER

.406 x .750 x .105 pln

6шт.

102635

NUT,3/8"-16, G5

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25520R1

NUT,5/16"-18, G8

5/16 phc type 8

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

2

109350C1

SEALING STRIP

cab & firewall top, seal

1шт.

3

103929C1

SUPPORT

inst. panel & steering wheel, 6388, Serial Range: -9058

1шт.

3

103929C1

SUPPORT

inst. panel & steering wheel, 6588, Serial Range: -9163

1шт.

3

103929C1

SUPPORT

inst. panel & steering wheel, 6788, Serial Range: -8809

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

4

148858C4

SUPPORT

ASSY, firewall LH

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

142619H

WASHER

.406 x .750 x .105

2шт.

5

148859C3

SUPPORT ASSY.

SUPPORT ASSY, firewall RH

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

142619H

WASHER

.406 x .750 x .105

2шт.

6

104027C1

SUPPORT

ASSY, supp cover mtg, plate

1шт.

1276073C1

SELF-TAP SCREW,Cross Flat Hd, 1/46" x 1/2"

SCREW, 1/4 x 1/2 polyseal mach

2шт.

7

120441C91

SUPPORT

firewall support, cover

1шт.

8

104030C1

SUPPORT

firewall supp cover, handle

1шт.

9

104031C1

SUPPORT

firewall supp cover, retainer

1шт.

436525C1

RIVET,Pop, 1/4" x 1/2"

6.2 x 12.7MM break mandrel

2шт.

10

139364C1

SUPPORT

ASSY, inst. panel LH

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

3шт.

104036C1

NUT

instrument housing mounting

2шт.

11

139365C1

SUPPORT

ASSY, inst. panel RH

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

3шт.

104036C1

NUT

instrument housing mounting

2шт.

12

104021C1

SUPPORT

pedal stop, bracket

2шт.

NLS

NO LONGER SERVICED

2шт.

13

104020C2

SUPPORT

inst. housing lower

1шт.

104036C1

NUT

instrument housing mounting

5шт.

931260R1

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

M10 x 12 pln class 8.8

2шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5MM phc

2шт.

1259543C1

SEAL

cable insul protector

1шт.

14

1251645C93

SUPPORT

ASSY, pedal return spring

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

102635

NUT,3/8"-16, G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

Q1504

WASHER

10 x 22 x 1.5

1шт.

15

148482C1

HOUSING

lower instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

9шт.

120355C1

PAD

SHEET, polyurethane foam insulation

1шт.

16

1251804C2

HOUSING

upper instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

11шт.
