Запчасти Case IH 6388 (13-01) - SUPERSTRUCTURE, FRONT HOOD (05) - SUPERSTRUCTURE

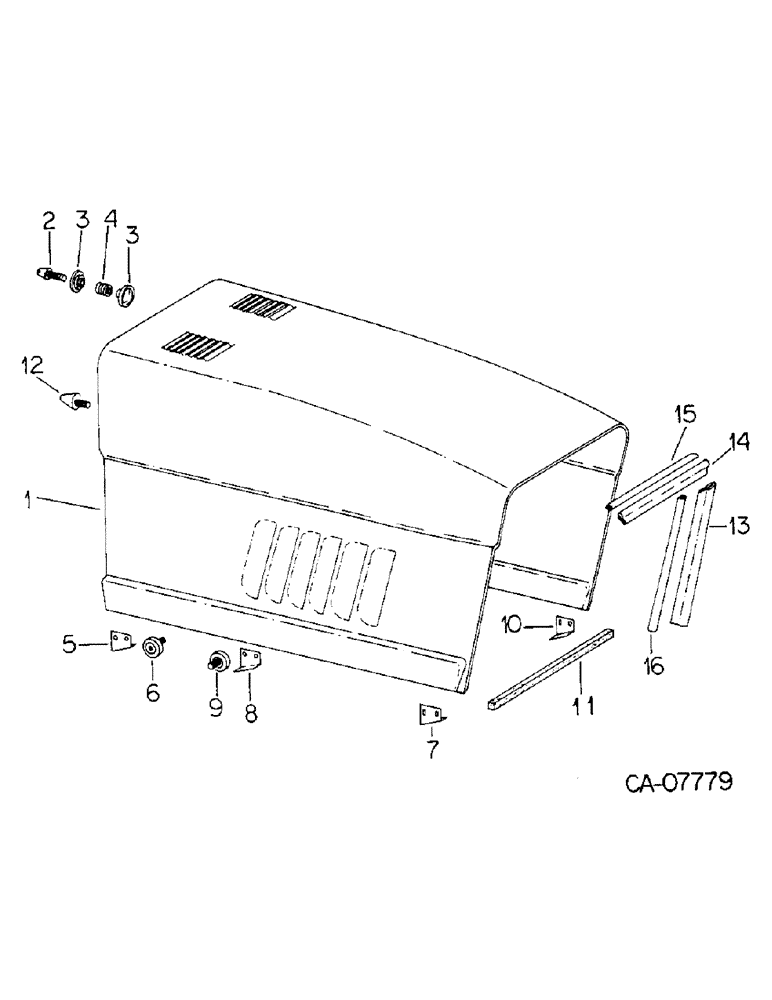

Схема запчастей Case IH 6388 - (13-01) - SUPERSTRUCTURE, FRONT HOOD (05) - SUPERSTRUCTURE
15
13
7
3
8
3
9
4
11
14
6
12
16
2
5
1

Артикул

Название

Примечание

Количество

1

1258052C1

HOOD

ASSY, front

1шт.

142271C1

SHIELD

heat 152.5 x 400MM

1шт.

142272C1

SHIELD

heat 305 x 850MM

1шт.

2

142220C1

BOLT,7/16" - 14 x 90.42mm

hood latch

1шт.

3

416749C1

RETAINER

spring

2шт.

4

141863C1

SPRING

hood latch

1шт.

120389

WASHER,7/16"

.500 x 1.250 x .064

1шт.

272230

SPACER

NUT, 7/16 pln thick type 5

1шт.

5

138786C1

STOP

rear RH channel

1шт.

109084

NUT,1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

138789C2

STOP

SUPPORT, lower frt hood RH side, stop

1шт.

102635

NUT,3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

8

138800C1

STOP

rear LH channel

1шт.

109084

NUT,1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

138787C2

STOP

lower front hood LH side

1шт.

102635

NUT,3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

11

60760C1

GASKET

bottom

1шт.

12

437385C1

BUMPER

rubber

2шт.

120376

NUT,5/16"-18, G5

2шт.

13

138886C2

SEAL

side, weather strip

2шт.

14

138887C2

SEAL

top, weather strip

1шт.

15

138888C1

SEAL

top guard

1шт.

16

138889C1

SEAL

side guard, hood sealer, Use 92.1 in. from bulk carton marked 146793C1

2шт.

1269178C91

LATCH

PARTS ACCESSORY, hood draw latch, Consists of

1шт.

1268965C1

SUPPORT

hood drain latch LH

1шт.

1268964C1

SUPPORT

hood drain latch RH

1шт.

1268997C91

LATCH ASSY, hood

2шт.

1268994C1

BRACKET

ASSY, upper bumper

1шт.

1269177C1

BRACKET

ASSY, upper bumper

1шт.

132915C1

BAR

bumper, cup

1шт.

437385C1

BUMPER

rubber

1шт.

245327C1

HARNESS

ASSY, aux light jumper

2шт.

INSTRUCTIONS, installing plus all necessary mounting hardware (NSS)

1шт.

Выбрано товаров: 45
