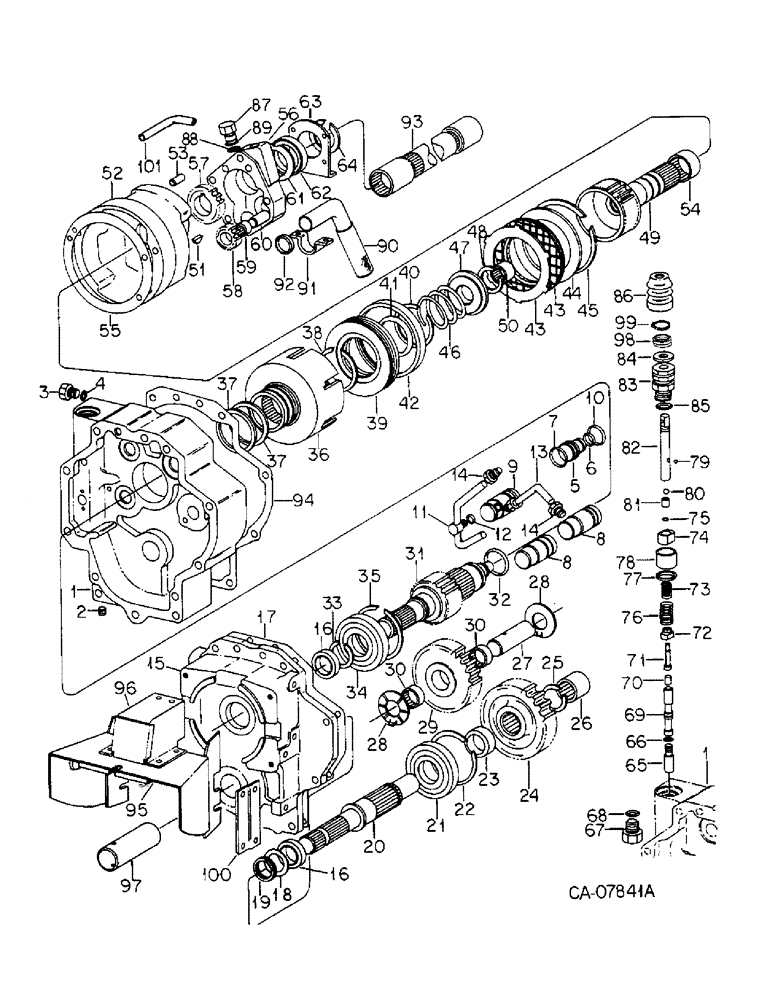

Запчасти Case IH 6388 (07-39) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, DUAL SPEED, 6388 TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
69065C93
HOUSING
ASSY, IPTO valve, Consists of ref. nos. 2 and 69 thru 86
1шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1шт.
2
444660
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
PLUG, 3/8-18 aut sq-soc-hd pipe
1шт.
3
9410355
PLUG,Hex Hd, 3/8"-24 ORB
3/8-24 str thd o-ring boss, gauge hole
2шт.
4
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug
2шт.
5
67340C1
PISTON
ASSY, anti-creep brake
3шт.
6
574069R1
O-RING,0.750" ID x .062"
3/4 x 7/8 x 1/16, brake piston rod
3шт.
7
356005R1
O-RING,1.109" ID x 0.139" Width
1-1/8 x 1-3/8 x 1/8 brake piston
3шт.
8
68074C1
CYLINDER
anti-creep brake
2шт.
9
68073C1
CYLINDER
anti-creep brake
1шт.
10
22458R1
O-RING,1.489" ID x 1.629" OD x 0.07"
1-1/2 x 1-5/8 x 1/16 brake cylinder
3шт.
11
68075C1
TUBE
ASSY, brake supply
1шт.
12
352219R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
1/4 x 3/8 x 1/16 brake supply connector
1шт.
13
68077C1
TUBE
brake supply
1шт.
14
222-502
TUBE NUT,7/16"-24
FITTING, hi- duty 1/4 tube, brake supply tube
4шт.
15
64785C92
COVER
W/PRODUCT GRAPHIC, independent power take-off housing
1шт.
19846R1
DOWEL,1/2" x 1 1/4"
PIN, 1/2 x 1.250 pln hdn dowel
2шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
2шт.
70129R1
PLUG,Cup, 2"
cored hole
1шт.
16
381480R91
OIL SEAL
output shaft oil
2шт.
17
381481R1
GASKET
independent power take-off housing cover
1шт.
18
393211R1
SHIELD
independent PTO shaft seal, Use w/540 RPM shaft oil seal
1шт.
19
398739R1
RING
external retaining
1шт.
20
393111R2
SHAFT
independent power take-off 540 RPM output
1шт.
21
ST293
BALL BEARING,45mm ID x 100mm OD x 25mm W
BEARING, independent power take-off 540 RPM output shaft rear
1шт.
22
357201R1
RING
independent power take-off 540 RPM shaft rear bearing retaining
1шт.
23
381505R1
SPACER,44.7mm ID x 57.15mm OD x 16.76mm L
independent power take-off 540 RPM output shaft
1шт.
24
381506R1
GEAR
independent power take-off driven
1шт.
25
359894R1
RING, SNAP
RING, independent power take-off driven gear retaining snap
1шт.
26
576539R91
NEEDLE BEARING
ASSY, 540 RPM output shaft front needle
1шт.
27
381507R1
SHAFT,31.74mm OD x 98.81mm L
independent power take-off idler
2шт.
28
381508R1
THRUST WASHER,32.26mm ID x 57.15mm OD x 2.39mm Thk
indpendent power take-off idler gear thrust
2шт.
29
381509R1
GEAR
independent power take-off idler
1шт.
30
287057R91
BEARING, NEEDLE
BEARING, independent power take-off idler gear
2шт.
31
120985C1
SHAFT
independent power take-off 1000 RPM output
1шт.
32
364145R1
O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro
2-1/8 x 2-5/16 x 3/32, independent PTO 1000 RPM output shaft
1шт.
33
358894R1
RING, 1000 RPM output shaft locating snap
1шт.
34
381483R91
ROLLER BEARING,1.7717" ID x 3.337" OD x 0.9843"
ASSY, 1000 RPM output shaft rear
1шт.
35
357201R1
RING
1000 RPM shaft rear bearing retaining snap
1шт.
36
381484R2
CUP
clutch
1шт.
37
381485R1
RING,67.13mm ID x 72.21mm OD x 3.12mm Thk
clutch cup seal
2шт.
38
68625C1
RING
clutch cup retaining snap
1шт.
39
68080C2
PISTON
clutch
1шт.
40
258400C1
SNAP RING,#187, Ext
Ring, Snap, , clutch piston stop #187, Ext
1шт.
41
702283R1
O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro
1-7/8 x 2-1/4 x 3/16 clutch piston
1шт.
42
381488R1
RING,120.78mm ID x 134.34mm OD x 4.78mm Thk
SEAL, clutch piston oil
1шт.
43
68803C92
KIT
PACKAGE, IPTO clutch plate and disc, Consists of
1шт.
DISC DRIVEN (NSS)
9шт.
PLATE CLUTCH (NSS)
7шт.
44
381491R1
RETAINER
clutch driven disc
1шт.
45
381492R1
CIRCLIP,M137.16 x 3.07mm Thk, Int
RING, clutch driven disc ret snap
1шт.
46
381493R1
SPRING
clutch release
1шт.
47
381494R1
RETAINER
clutch release spring
1шт.
48
370504R1
RING
clutch release spring ret snap
1шт.
49
68081C2
SHAFT
drive
1шт.
50
10026R
NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"
BEARING, 1000 RPM drive shaft front
1шт.
51
124545
WOODRUFF KEY,#5, 1/8" x 5/8", HT
Drive shaft #5, 1/8" x 5/8", HT
1шт.
52
68082C1
NO LONGER SERVICED
CARRIER ASSY, IPTO clutch w/cast-in lube tube
1шт.
52
148474C92
CARRIER
ASSY, IPTO clutch w/loose lube tube, Includes ref. nos. 53 & 101
1шт.
27907R1
CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel
SCREW, 3/8 x 2.5 pln type 8 12pt flg
4шт.
53
19879R1
SPLIT PIN/SAFETY PIN
PIN, 5/16 x 3/4 dowel
2шт.
54
359950R91
NEEDLE BEARING
BEARING, drive shaft rear
1шт.
55
529565R1
GASKET
IPTO clutch carrier
1шт.
56
67330C1
HOUSING
pump, Use w/carrier assy, 68082C2
1шт.
56
148475C1
HOUSING
pump, Use w/carrier assy, 148474C1
1шт.
NLS
NO LONGER SERVICED
2шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
57
381499R1
PINION
GEAR, pump driver
1шт.
58
381500R1
PINION
GEAR, pump idler
1шт.
59
381501R91
NEEDLE BEARING
pump idler gear needle
1шт.
60
381502R1
SHAFT
pump idler gear
1шт.
61
68084C1
BAFFLE
drive shaft front
1шт.
62
ST571
BALL BEARING,40 mm ID x 68 mm OD x 15 mm
BEARING, drive shaft front
1шт.
63
381503R1
RETAINER
drive shaft fornt brg
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
64
555570R1
SNAP RING
RING, drive shaft front brg snap
2шт.
65
68085C1
PLUG
IPTO valve
1шт.
66
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16 IPTO plug
1шт.
67
9410360
PLUG
7/8-14 str thd o-ring boss
1шт.
68
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
69
70808C1
SPOOL
IPTO valve, Code A
1шт.
Alpha code of spool to match code stamped on IPTO housing.
1шт.
69
70809C1
SPOOL
IPTO valve, Code B
1шт.
Alpha code of spool to match code stamped on IPTO housing.
1шт.
69
70810C1
SPOOL
IPTO valve, Code C
1шт.
Alpha code of spool to match code stamped on IPTO housing.
1шт.
70
26622R1
DOWEL,5/16" x 3/8"
PIN, 5/16 x 3/8 hardened dowel
1шт.
71
70331C1
ROD
ball actuating
1шт.
72
70807C1
RETAINER
ball actuating rod
1шт.
73
68089C1
SPRING
IPTO regulator
1шт.
74
68090C1
RETAINER
ball act. rod stem end
1шт.
75
268552R1
SNAP RING,#18, .145" Dia, E-Type
Ring, Retaining, #18, .145" Dia, E-Type
1шт.
76
68092C1
SPRING
engagement
1шт.
77
68093C1
SPRING WASHER
engagement spring
1шт.
78
68094C1
SPACER
engagement
1шт.
79
17008R1
BALL,1/4" Dia
Chrome-Steel 1/4" Dia
3шт.
80
17012R1
BALL,3/8" Dia
1шт.
81
20031R1
DOWEL,3/8" x 5/8"
PISTON, ball actuating
1шт.
82
68095C1
STEM
control valve
1шт.
83
68095C1
STEM
BODY ASSY, IPTO detent
1шт.
84
68097C1
SEAL
stem
1шт.
85
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
7/8 OD tube
1шт.
86
68110C2
BOOT
IPTO valve dust
1шт.
87
69040C92
VALVE
ASSY, regulator, Only serviceable part is
1шт.
69042C2
STRAINER ELEMENT
STRAINER
1шт.
88
392382R1
O-RING,0.551" ID x 0.07" Width
9/16 x 11/16 x 1/16
1шт.
89
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
90
395120R1
TUBE
ASSEMBLY, suction
1шт.
91
381525R1
SUPPORT TUBE,2.8" Length
SUPPORT, suction tube
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4 x 3/4 pln type 5
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
92
381526R1
SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk
suction tube
1шт.
93
120988C1
SHAFT
ASSY, PTO extension
1шт.
94
381467R1
GASKET
PTO housing
1шт.
95
1264503C1
SHIELD
ASSY, IPTO
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
96
1264520C1
COVER
ASSY, IPTO shield
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
97
393116R1
TUBE
independent power take-off shaft protection
1шт.
98
1252025C1
SPRING
activator return
1шт.
608701R1
WASHER
.656 x 1.250 x .054
1шт.
350515R1
WASHER
.656 x 1.000 x .054 pln
1шт.
99
267805R1
RING
.579 ext ret
1шт.
100
393115R11
EXTENSION
ASSY, IPTO shield
2шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
4шт.
101
148451C2
TUBE,0.035" OD, 115, 48 mm Length
IPTO lube, Use w/carrier, 148474C92
1шт.
222-503
TUBE NUT,1/2"-20
NUT, 5/16 tube
2шт.
64553C2
PRODUCT GRAPHIC
warning IPTO
1шт.
77720C92
STRIPPER PACKAGE
PACKAGE, seal and gasket, Consists of ref. nos. 4, 6, 7, 10, 12, 16, 17, 32, 37, 41, 42, 51, 55, 66, 68, 84, 85, 86, 88, 92 and 94 plus
1шт.
199474H1
OIL SEAL
output shaft oil
1шт.
Выбрано товаров: 135
