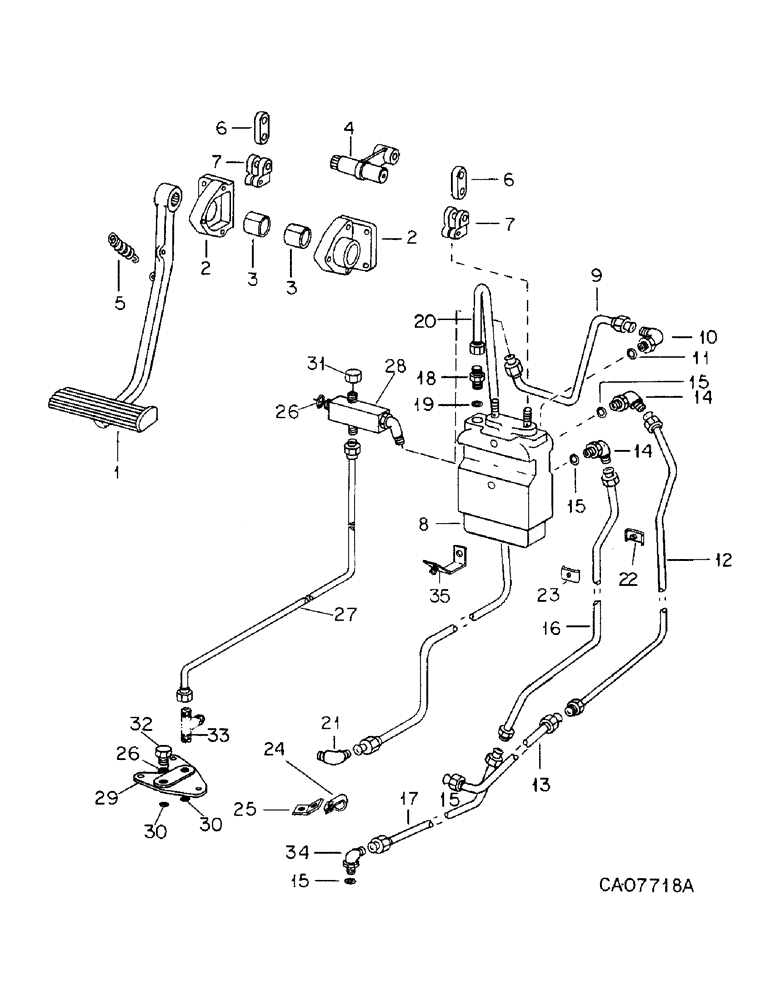

Запчасти Case IH 6388 (04-02) - BRAKES, MASTER BRAKE CONTROLS (5.1) - BRAKES

1

127257C1

PEDAL

brake

1шт.

26592R1

SCREW

3/8 x 1-1/2 phc hd/pt hdl/hs set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

2

120175C91

HOUSING

ASSY, brake pedal, Includes ref. 3

2шт.

3

120171C1

BUSHING

brake pedal pivot, bearing

2шт.

16073R1

BOLT, 5/16 x 2-3/8 pln type 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

181106

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 phc type 5

4шт.

4

127258C1

LEVER

ASSY, brake

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

23364R1

WASHER

.344 x 1.750 x .164

1шт.

5

104783C1

SPRING

brake pedal return

1шт.

CONDUIT, convoluted, Furnish 4.25 inches from bulk roll marked 2643132R1

1шт.

6

384082R1

LINK

brake operating

2шт.

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1.688 clevis

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

384083R2

YOKE

YOKE, brake operating

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

1272218C91

VALVE

PACKAGE, hyd brake valve, For list of serviceable parts see power brake valve this group

1шт.

140720C1

PLATE

orifice

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

.406 x .750 x .105 pln

2шт.

102635

NUT,3/8"-16, G5

2шт.

9

104821C1

HYD TUBE

TUBE ASSY, hyd brake pressure

1шт.

10

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared tube

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

12

104448C2

TUBE

ASSY, front brake, LH

1шт.

13

104449C1

TUBE

ASSY, rear brake, LH

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

4шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

16

104446C2

TUBE

ASSY, front brake, RH

1шт.

17

104447C1

TUBE

ASSY, rear brake, RH

1шт.

18

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

20

149086C1

HYD TUBE,0.375" OD, 601, 445.77 mm Length

TUBE ASSY, brake dump

1шт.

21

NOT USED THIS APPLICATION

1шт.

22

535306R1

CLAMP

ASSY, frt brake tube

1шт.

23

535307R1

CLAMP

frt brake tube

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

155850H1

CLAMP,3/8", 1/4" Bolt

3/8 closed

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

25

120433C1

SUPPORT

tube clip

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

27

120051C1

HYD TUBE

TUBE ASSY, return

1шт.

28

108863C91

VALVE

ASSY, brake check, 6388 and 6588 tractors

1шт.

28

133546C91

VALVE

ASSY, brake check, 6788 tractors, Refer to brake check valve this group for list of components

1шт.

29

537840R1

BLOCK

brake manifold

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

30

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

31

9403372

CAP,37 Degree, 3/4"-16

3/4-16 hyd flare

1шт.

32

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

33

673526R1

TEE

brake tube dump

1шт.

34

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

35

1258307C1

BRACKET

ASSY, hose mounting

1шт.

102637

NUT,1/2"-13, G5

1шт.
