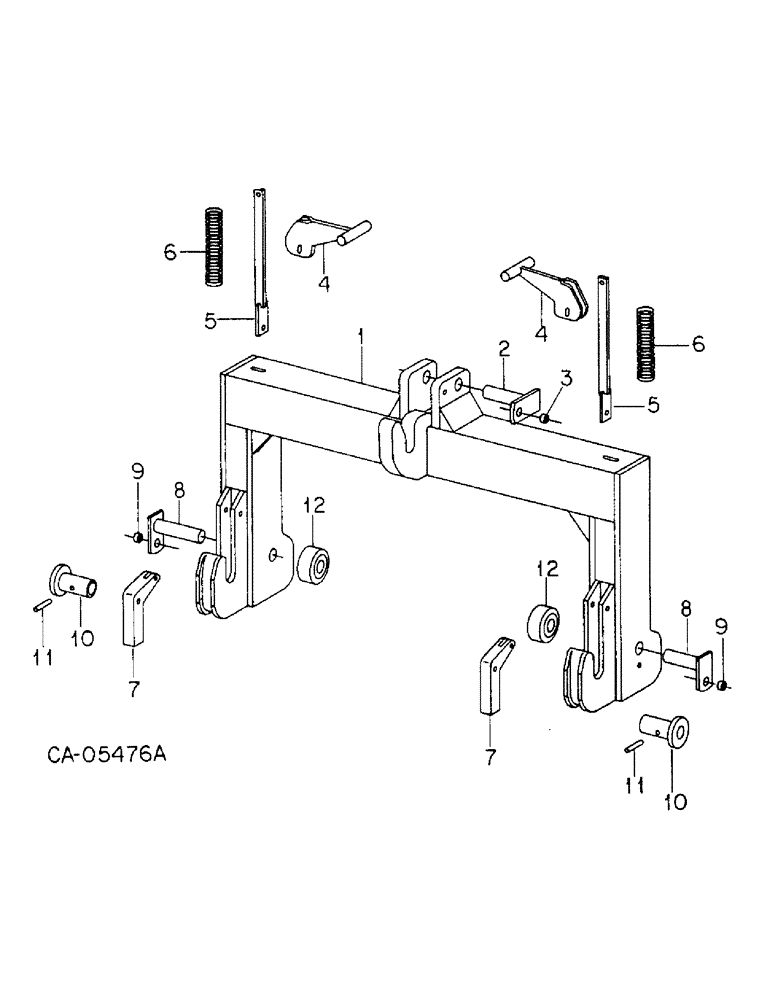

Запчасти Case IH 6388 (09-11) - FRAME, THREE POINT HITCH QUICK COUPLER ATTACHMENT (12) - FRAME

1255075C91

COUPLING

COUPLER ASSY, category II quick, Also furnish (2) lower link hitch ball bushings, 535448R1

1шт.

1255077C91

COUPLING

COUPLER ASSY, category III quick

1шт.

1

FRAME ASSY, coupler main, Not serviced separately

1шт.

2

64712C1

PIN

ASSY, upper link, category II

1шт.

2

64721C1

LARGE PIN

PIN ASSY, upper link, category III

1шт.

3

64714C1

BUSHING

pin, retainer

3шт.

120396

WASHER

.531 x 1.062 x .074

3шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

3шт.

4

64715C1

HANDLE

ASSY, latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1.062 pln clevis

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

1266789C1

BAR

spring, category II

2шт.

5

1266790C1

BAR

spring, category III

2шт.

6

64717C1

SPRING

latch

2шт.

7

1266791C1

LUG

lock, latch, category II

2шт.

8

19555R1

PIN,5/16" x 1", Coiled

2шт.

28385R1

PIN, 1/2 x 2-1/4 hvy pln cld spr

2шт.

7

1266792C1

LUG

lock, latch, category III

2шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

ASSY, lower link, category III

2шт.

9

64714C1

BUSHING

pin retainer, Use w/1255077C91 coupler

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 phc p/t type 8

2шт.

10

401232R1

ADAPTER

implement lower hitch pin

2шт.

11

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

12

401233R1

COLLAR

BUSHING, implement lower hitch pin, category III

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

6588 and 6788 tractors w/ 1-3/4 IPTO shaft attachment 1/2" x 2 1/2", Coiled

2шт.
