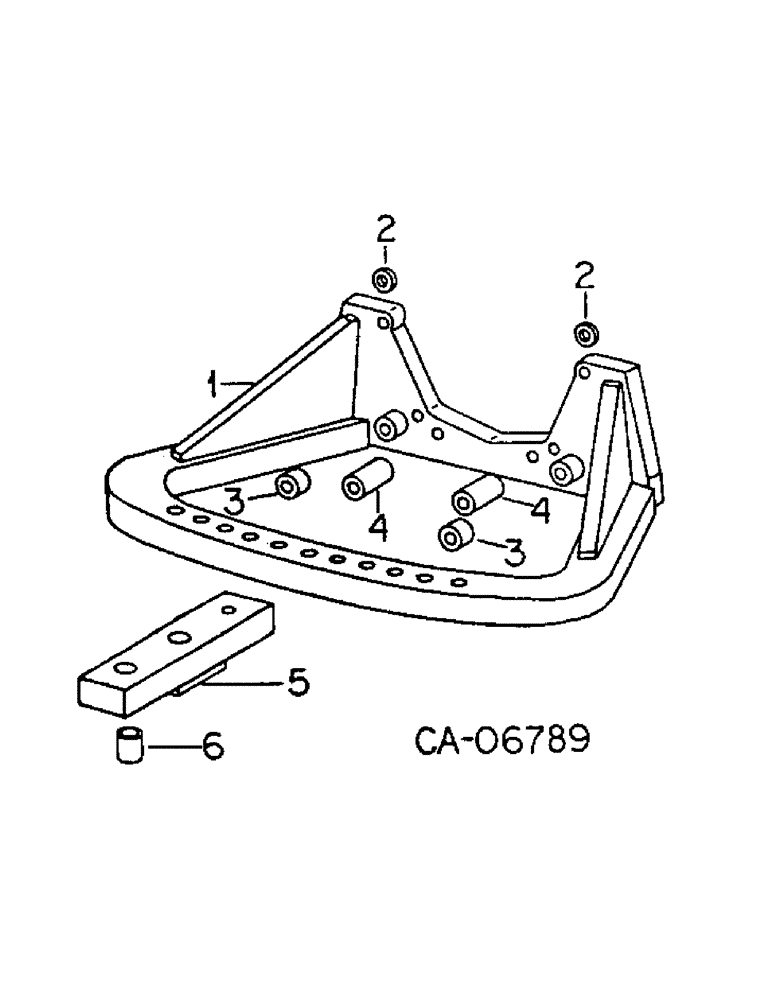

Запчасти Case IH 6388 (09-07) - FRAME, FIXED NON-ADJUSTABLE DRAWBAR, TRACTORS WITHOUT HYDRAULIC DRAFT CONTROL (12) - FRAME

1

67876C1

BAR

DRAWBAR ASSY, fixed

1шт.

2

67872C1

WASHER

mtg bolt

4шт.

20664R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 pln type 8

6шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

4шт.

3

142808C1

SPACER

25.4MM long

2шт.

4

142809C1

SPACER

57.15MM long

2шт.

5

67839C1

EXTENSION

ASSY, drawbar, tractor w/1-3/4 dia IPTO shaft

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 2-3/4 pln type 5

1шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3/4 x 4-1/2 pln type 5

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5

1шт.

271623

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 pln type 5

1шт.

481540R1

WASHER

.781 x 2.12 x .25 ht

2шт.

220081

NUT

3/4 pln type 5

2шт.

6

67864C1

PIN

drawbar extension, tractors w/1-3/4 dia IPTO shaft

1шт.
