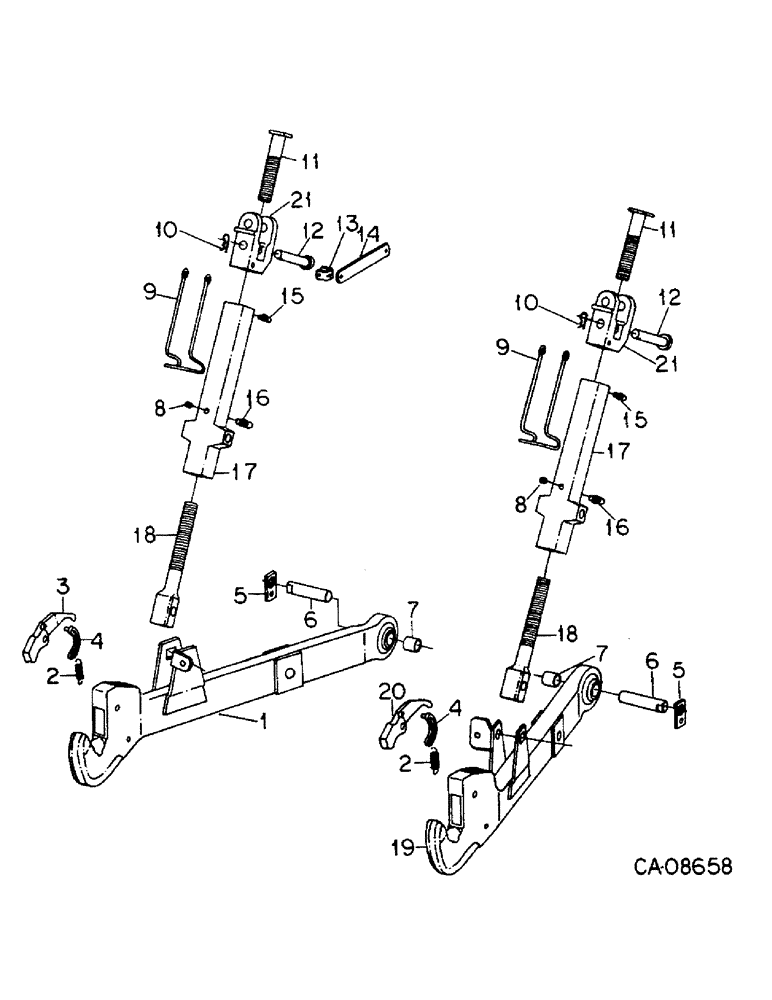

Запчасти Case IH 6388 (09-06) - FRAME, THREE POINT HITCH, TRACTORS WITH DRAFT CONTROL, CLAW LOWER LINKS (12) - FRAME
№
Артикул
Название
Примечание
Количество
1
224642C92
ARM
BUSHING & LINK ASSY, lower LH, Includes ref. no. 7
1шт.
2
1263338C1
SPRING
claw latch
2шт.
30372R1
PIN,M6 x 40, Coiled
6 x 40MM pln cld-spr
2шт.
3
1266903C1
LATCH
claw LH
1шт.
30758R1
PIN,M16 x 40, Coiled
16 x 40MM znp cld spr
1шт.
4
224653C1
LINK
claw latch
2шт.
5
406687R1
RETAINER
lower link pin
2шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
6
406686R2
PIN,25.4mm OD x 122.43mm L
lower link
2шт.
7
71808C1
BUSHING
front lower link ball
2шт.
8
444691
PLUG
1/4-18 auto hex pipe
2шт.
9
123464C1
CLAMP
turnbuckle lock, bail
2шт.
189304
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
3/8 x 3-1/4 type 5
2шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 cad p/t lock type 5
2шт.
189305
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
3/8 x 3-1/2 type 5
2шт.
10
480523R1
HAIR PIN COTTER
quick attachable
2шт.
11
108584C1
ROD
upper leveling
2шт.
12
27357R1
HEADED PIN,3/4" x 3 3/4"
PIN, 3/4 x 3.750 pln hd type 5
2шт.
13
1252260C1
BRACKET
spring assy storage
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, 3/8"-16, GB
1шт.
14
1263344C1
BAR
spring storage bracket
1шт.
189305
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
3/8 x 3-1/2 type 5
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 cad p/t lock type 5
2шт.
NLS
NO LONGER SERVICED
1шт.
15
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING, 1/4 hole lub
2шт.
16
273349
FITTING
1/4 ptf x/short lub
2шт.
17
72877C1
TURNBUCKLE
2шт.
18
108583C1
ROD
lower leveling
2шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
2шт.
19
224643C93
BUSHING
& LINK ASSY, lower RH, Includes ref. no. 7
1шт.
20
1266999C1
LATCH
claw RH
1шт.
30758R1
PIN,M16 x 40, Coiled
16 x 40MM znp cld spr
1шт.
21
108585C1
YOKE
lift link
2шт.
Выбрано товаров: 37
