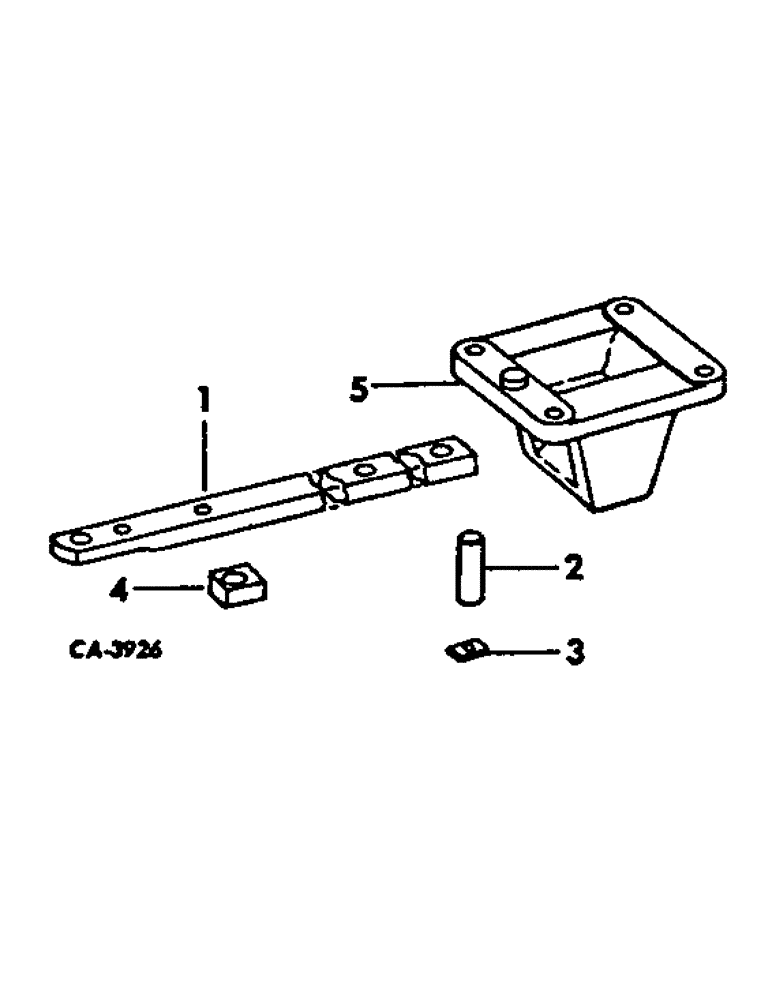

Запчасти Case IH 6388 (09-02) - FRAME, SWINGING DRAWBAR, ONE-PIECE (12) - FRAME

1

72476C1

BAR

DRAWBAR, swinging, 56 in., 6388 tractors

1шт.

1

72571C1

BAR

DRAWBAR, swinging, 58 in., 6588 & 6788 tractors w/1-3/8 IPTO shaft

1шт.

1

73229C1

BAR

DRAWBAR, swinging, 62 in., 6588 tractors w/1-3/4 IPTO shaft & cam sway limiting system, 6788 tractors w/1-3/4 IPTO shaft & cam sway limiting system

1шт.

2

108505C1

PIN

swinging drawbar

1шт.

3

67828C1

RETAINER

swinging drawbar pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

271734

ROTOR,Hex, 5/8" - 11 x 4 3/4", Gr 5

5/8 x 4-3/4 type 5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

2шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

72475C1

SUPPORT

ASSY, swinging drawbar pivot, 6388 tractors, 6588 & 6788 tractors w/o cam sway limiting system using 1-3/4 IPTO shaft

1шт.
